Technical information
Rail wheels Serie SSF

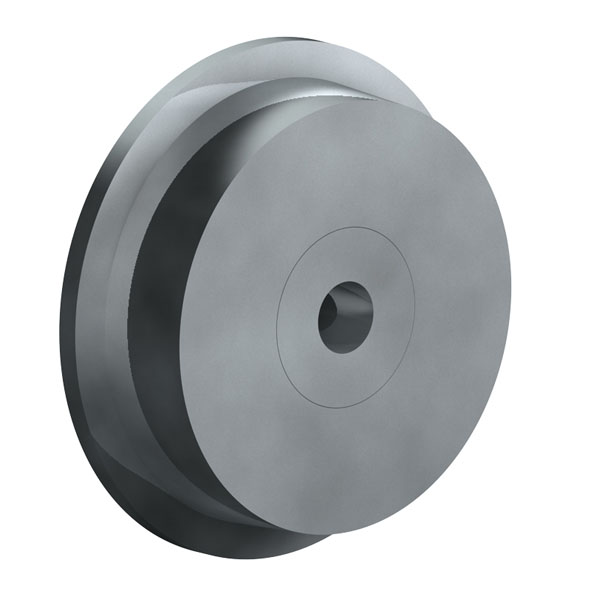

Rail Wheel
- Wheel-Ø without flange mm: 150
- Wheel-Ø with flange mm: 190
- Tread width mm: 40
- Wheel width mm: 55
- Load Capacity kg: 3300
- Load capacity tested according to EN 12530 and EN 12527
- Hub width mm: 55
- Wheel bearing: Borehole and keyway
- Bore diameter mm: 25 H7
