Description
Floor condition
Advantages
- double seal
- side vents
- housing glass fibre reinforced
- high resistence to organic solvents, petrol and oil
Applications
- Haulage way
- Assembly lines

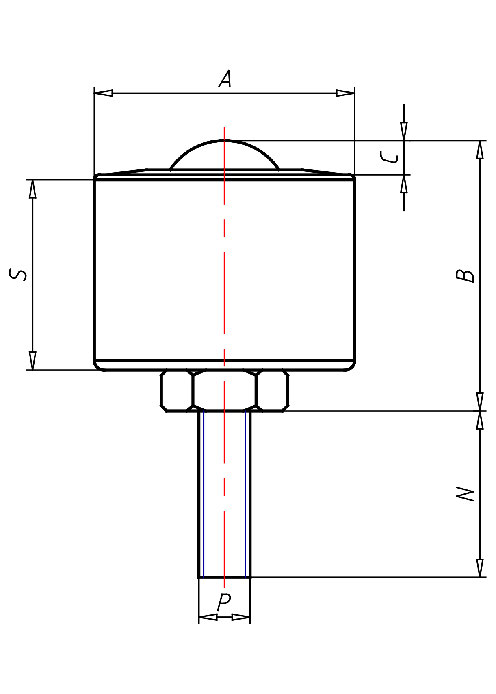

Ball Units Series A HI-TECH S/1
PDF product sheet
- max 320 kg
- -30 °C - +100 °C
Material
Material
Ball: carbon steel or stainless steel

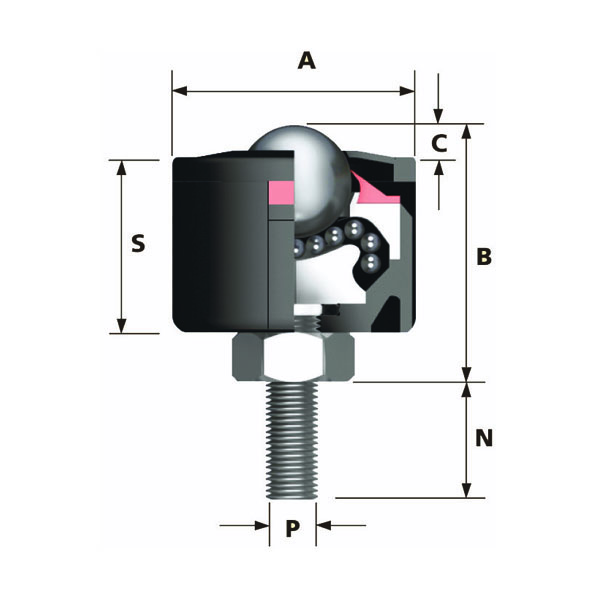

THE FIRST BALL TRANSFER UNIT THAT INCORPORATES DOUBLE SEALING FOR EXCLUDING DEBRIS FROM THE BEARINGS.
• housing nylon, glass fibre reinforced
The top cover seal removes larger particles
and the inner knife edge scraper seal skims liquid,
paste, fine dust, etc. off the large ball and expels it
through side vents.
Documents/CAD
Cadenas Partcommunity-Portal
For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
Select version
