Wheels Series CI
  •  Wheels Series CI

Select the required versions in order to show them already filtered in the following table.

Wheels Series CI

PDF product sheet
  • max 1400 kg
  • -40 °C - +300 °C**
  • 50-250 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +
    floor protective
  • ++
    weather proof
  •  Wheels Series CI

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • very high load capacity
  • excellent abrasion resistance
  • with plain or ball bearing for high temperatures

Applications

  • Meat processing vats

Material

Material

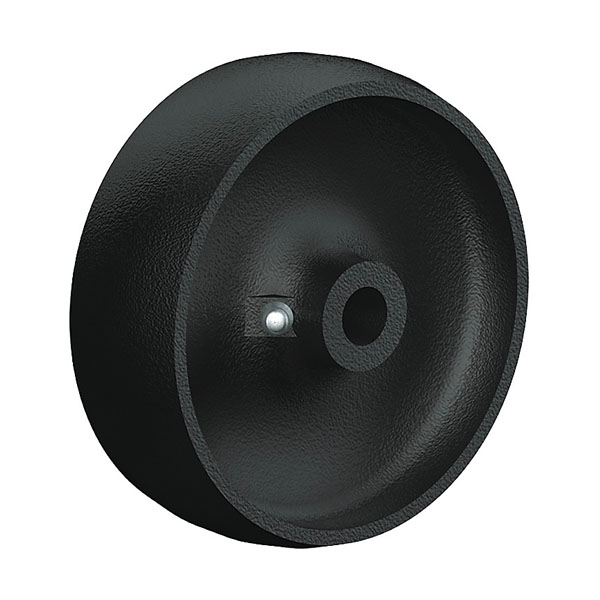

Casted iron wheel, painted, round machined tread, Wheel-Ø 50 and 63 made of Zamac

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

7 of 7 items in this series are displayed.

Article number Articel type Price € QTY
50 CI-6

Wheels Series CI, Wheel

Wheel Wheel-∅ x width [mm]: 50x22

Wheels Series CI, Wheel

Technische Daten

  • Tragkraft kg 60
  • Nabenlänge mm 27
  • Einbaulänge mm 27
  • Radlagerung Plain bearing
  • Bohrungsdurchmesser mm 6,4
75 CI-12

Wheels Series CI, Wheel

Wheel Wheel-∅ x width [mm]: 75x32

Wheels Series CI, Wheel

Technische Daten

  • Tragkraft kg 115
  • Nabenlänge mm 39
  • Einbaulänge mm 39
  • Radlagerung Plain bearing
  • Bohrungsdurchmesser mm 12,7
100 CIB 15

Wheels Series CI, Wheel

Wheel Wheel-∅ x width [mm]: 100x38

Wheels Series CI, Wheel

Technische Daten

  • Tragkraft kg 270
  • Nabenlänge mm 48
  • Einbaulänge mm 48
  • Radlagerung Roller bearing + grease nipple
  • Bohrungsdurchmesser mm 15
100 CI-15

Wheels Series CI, Wheel

Wheel Wheel-∅ x width [mm]: 100x38

Wheels Series CI, Wheel

Technische Daten

  • Tragkraft kg 270
  • Nabenlänge mm 48
  • Einbaulänge mm 48
  • Radlagerung Plain bearing + grease nipple
  • Bohrungsdurchmesser mm 15

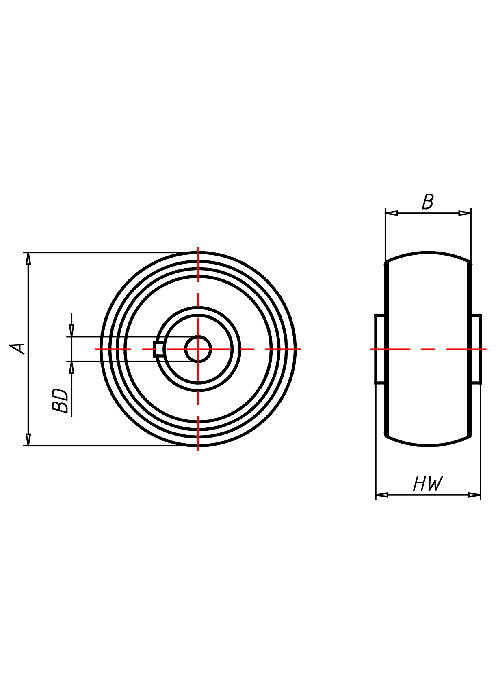

125 CI-15

Wheels Series CI, Wheel

Wheel Wheel-∅ x width [mm]: 125x41

Wheels Series CI, Wheel

Technische Daten

  • Tragkraft kg 630
  • Nabenlänge mm 48
  • Einbaulänge mm 48
  • Radlagerung Plain bearing + grease nipple
  • Bohrungsdurchmesser mm 15
200 CI-20

Wheels Series CI, Wheel

Wheel Wheel-∅ x width [mm]: 200x45

Wheels Series CI, Wheel

Technische Daten

  • Tragkraft kg 1300
  • Nabenlänge mm 60
  • Einbaulänge mm 60
  • Radlagerung Plain bearing + grease nipple
  • Bohrungsdurchmesser mm 20
250 CIB 25

Wheels Series CI, Wheel

Wheel Wheel-∅ x width [mm]: 250x51

Wheels Series CI, Wheel

Technische Daten

  • Tragkraft kg 1400
  • Nabenlänge mm 60
  • Einbaulänge mm 60
  • Radlagerung Roller bearing + grease nipple
  • Bohrungsdurchmesser mm 25
