Heat resistant wheel Series HB
  •  Heat resistant wheel Series HB

Select the required versions in order to show them already filtered in the following table.

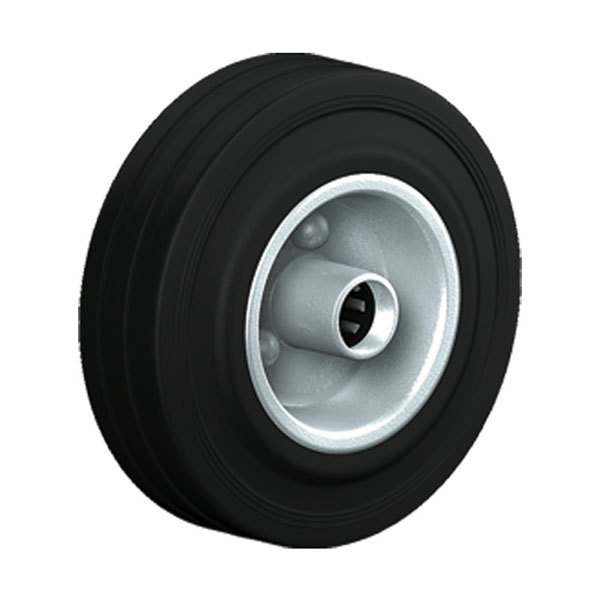

Heat resistant wheel Series HB

PDF product sheet
  • max 205 kg
  • -30 °C - +120 °C
  • 100-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  •  Heat resistant wheel Series HB

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

Advantages

  • heat resistant
  • silent in motion
  • good running    performance
  • resistant to diluted acids

Applications

  • Meat processing vats

Material

Material

Standard rubber tyre black, heat-resistant
Bolted steel rim, zinc-plated

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

3 of 3 items in this series are displayed.

Article number Articel type Price € QTY

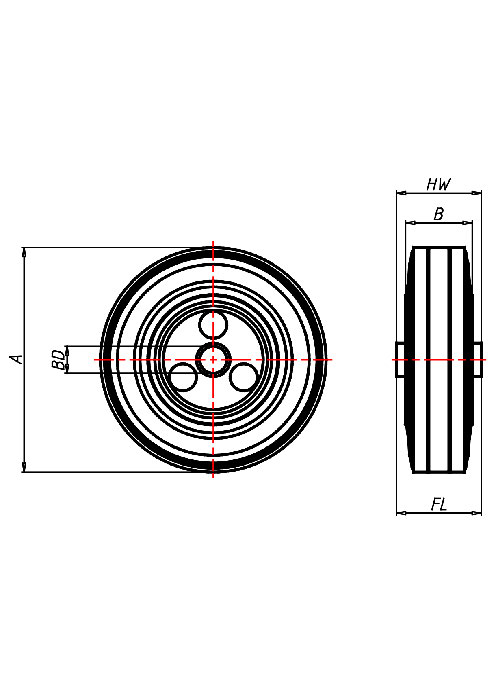

100 HB 10

Heat resistant wheel Series HB, Wheel

Wheel Wheel-∅ x width [mm]: 100x40

Heat resistant wheel Series HB, Wheel

Technische Daten

  • Tragkraft kg 70
  • Nabenlänge mm 40
  • Einbaulänge mm 40
  • Radlagerung Steel-roller bearing
  • Bohrungsdurchmesser mm 10
125 HB 15

Heat resistant wheel Series HB, Wheel

Wheel Wheel-∅ x width [mm]: 125x37

Heat resistant wheel Series HB, Wheel

Technische Daten

  • Tragkraft kg 100
  • Nabenlänge mm 47
  • Einbaulänge mm 47
  • Radlagerung Steel-roller bearing
  • Bohrungsdurchmesser mm 15
200 HB 20

Heat resistant wheel Series HB, Wheel

Wheel Wheel-∅ x width [mm]: 200x50

Heat resistant wheel Series HB, Wheel

Technische Daten

  • Tragkraft kg 205
  • Nabenlänge mm 56
  • Einbaulänge mm 56
  • Radlagerung Steel-roller bearing
  • Bohrungsdurchmesser mm 20
