Heat Series XDH, Wheel FS

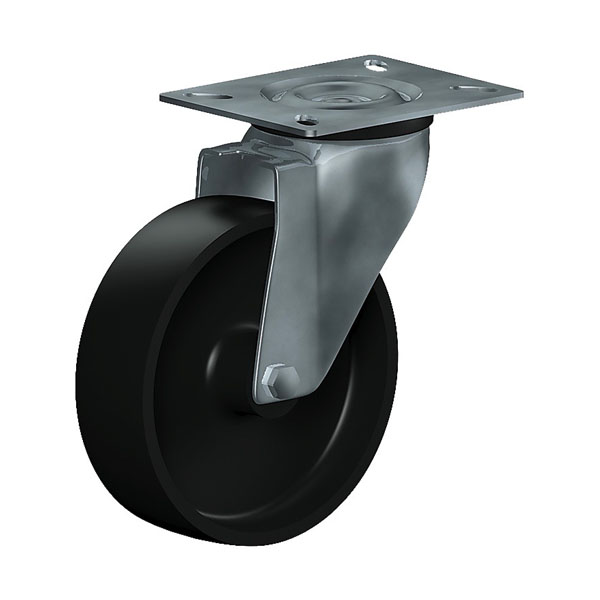

  • Swivel Castor Heat Series XDH, Wheel FS

    SWIVEL CASTOR

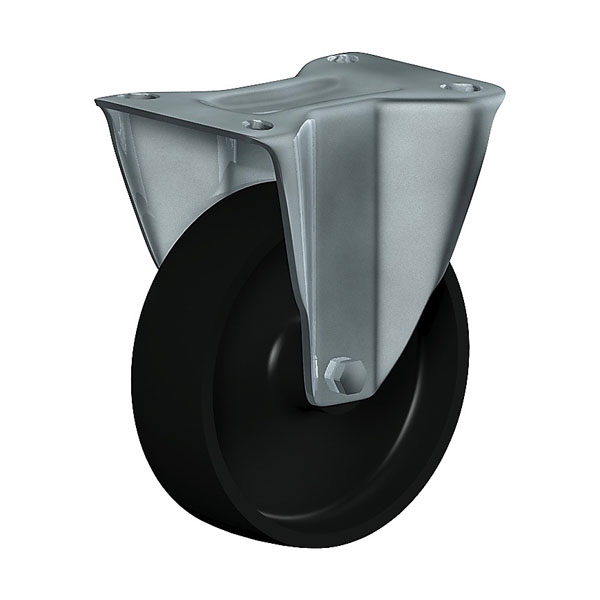

  • Fixed Castor Heat Series XDH, Wheel FS

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Heat Series XDH, Wheel FS

PDF product sheet
  • max 370 kg
  • -40 °C - +270 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Heat Series XDH, Wheel FS

    Swivel Castor

  • Fixed Castor Heat Series XDH, Wheel FS

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

Applications

  • Bread racks

Material

Material

Wheel made of special thermo resistant compound

Fork material

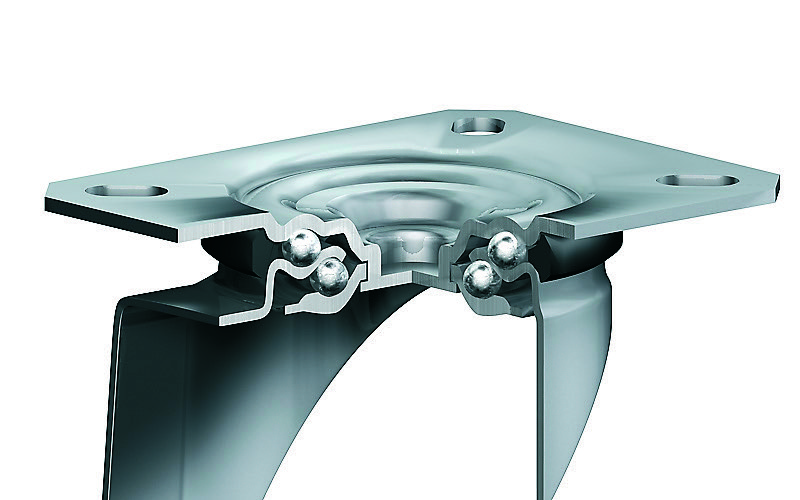

Finish: Polished stainless steel housing AISI 304, stainless steel balls AISI 420, double ball bearing, revited, dust protection ring up to max. 270° C, high melting point grease, wheel axle bolted

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY
XDH 80 FS

Heat Series XDH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 80x30

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 75
  • Radlagerung Plain bearing

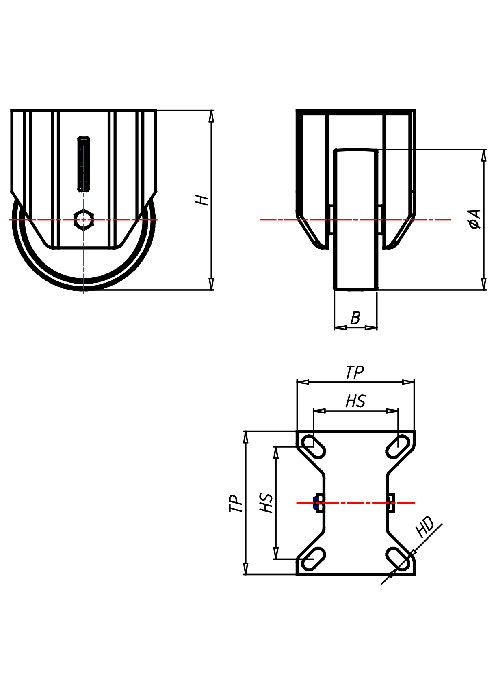

XF 80 FS

Heat Series XDH, Wheel FS

Fixed castor Wheel-∅ x width [mm]: 80x30

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Plain bearing
XDH 100 FS

Heat Series XDH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 100x30

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 88
  • Radlagerung Plain bearing
XF 100 FS

Heat Series XDH, Wheel FS

Fixed castor Wheel-∅ x width [mm]: 100x30

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Plain bearing
XSH 125 FS

Heat Series XDH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 113
  • Radlagerung Plain bearing
XFS 125 FS

Heat Series XDH, Wheel FS

Fixed castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Plain bearing

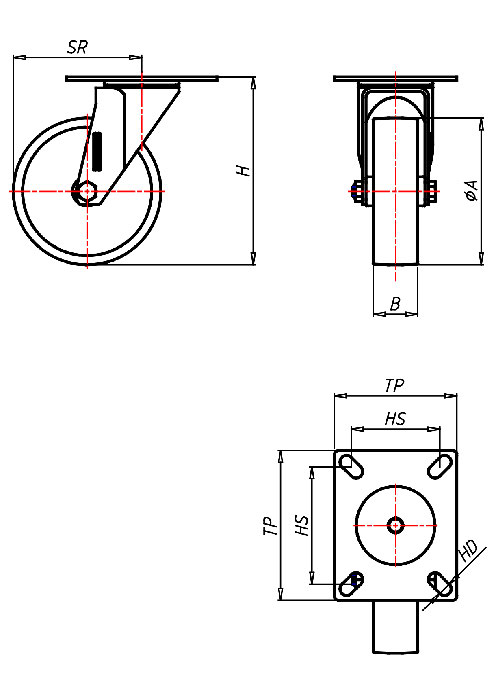

XSSH 125 FS

Heat Series XDH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 113
  • Radlagerung Plain bearing
XFSS 125 FS

Heat Series XDH, Wheel FS

Fixed castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Plain bearing
XDH 150 FS

Heat Series XDH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 150x45

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 203
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 134
  • Radlagerung Plain bearing
XF 150 FS

Heat Series XDH, Wheel FS

Fixed castor Wheel-∅ x width [mm]: 150x45

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 203
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Plain bearing
XDH 200 FS

Heat Series XDH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 200x50

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 161
  • Radlagerung Plain bearing
XF 200 FS

Heat Series XDH, Wheel FS

Fixed castor Wheel-∅ x width [mm]: 200x50

Heat Series XDH, Wheel FS

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Plain bearing
