Institutional Series 318R, Wheel RBB
  • Swivel Castor Institutional Series 318R, Wheel RBB

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 318R, Wheel RBB

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 318R, Wheel RBB

PDF product sheet
  • max 70 kg
  • -30 °C - +70 °C
  • 50-100 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 318R, Wheel RBB

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 318R, Wheel RBB

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • silent in motion
  • low rolling resistance
  • high resistance to shocks
  • easy to clean
  • good chemical resistance

Applications

  • Metal-Technology
  • Workshops
  • Carpentry

Material

Material

Tread: Thermoplastic elastomer coating 85±3 Shore A
High quality nylon wheel centre

Fork material

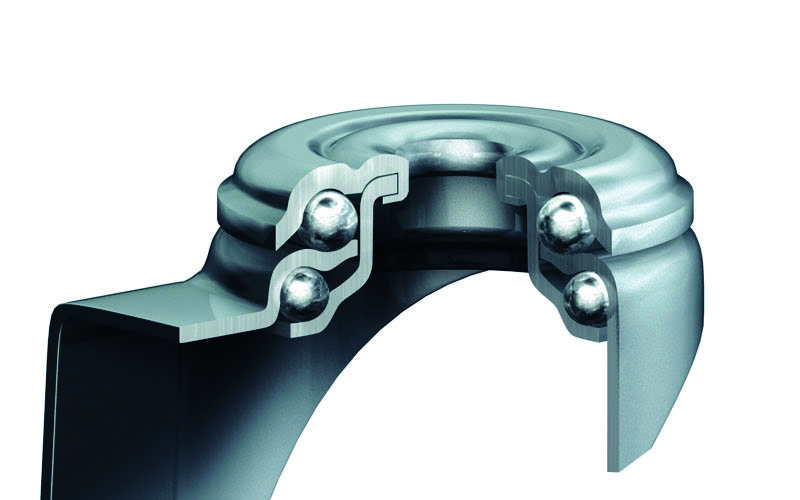

Finish: zinc plated and chromate coated, large double ball bearing - Ø 46 mm, revited, dust protection ring, wheel axle bolted and locked, wheel-/total lock - spring stainless steel black powder-coated

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

6 of 6 items in this series are displayed.

Article number Articel type Price € QTY
318 RÜ10 50 RBB

Institutional Series 318R, Wheel RBB

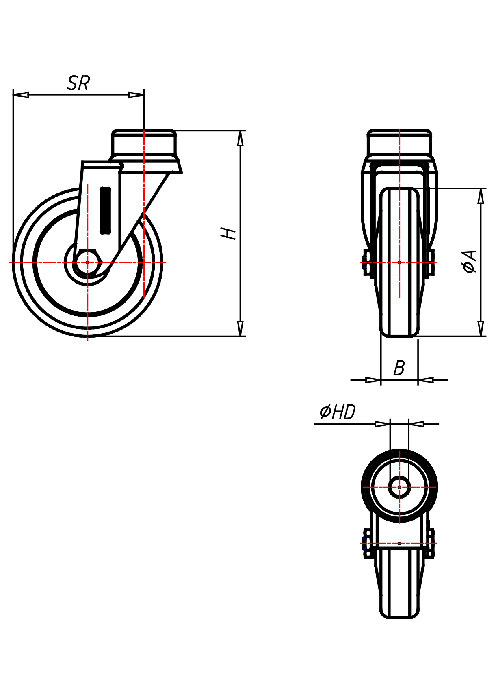

Swivel castor Wheel-∅ x width [mm]: 50x19

Institutional Series 318R, Wheel RBB

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 51
  • Radlagerung Plain bearing
319 RÜ10 50 RBB

Institutional Series 318R, Wheel RBB

Swivel castor with total lock Wheel-∅ x width [mm]: 50x19

Institutional Series 318R, Wheel RBB

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 72
  • Radlagerung Plain bearing
318 RÜ10 75 RBB

Institutional Series 318R, Wheel RBB

Swivel castor Wheel-∅ x width [mm]: 75x23

Institutional Series 318R, Wheel RBB

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 68
  • Radlagerung Plain bearing
319 RÜ10 75 RBB

Institutional Series 318R, Wheel RBB

Swivel castor with total lock Wheel-∅ x width [mm]: 75x23

Institutional Series 318R, Wheel RBB

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 83
  • Radlagerung Plain bearing
318 RÜ10 100 RBB

Institutional Series 318R, Wheel RBB

Swivel castor Wheel-∅ x width [mm]: 100x25

Institutional Series 318R, Wheel RBB

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 122
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 86
  • Radlagerung Plain bearing
319 RÜ10 100 RBB

Institutional Series 318R, Wheel RBB

Swivel castor with total lock Wheel-∅ x width [mm]: 100x25

Institutional Series 318R, Wheel RBB

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 122
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 95
  • Radlagerung Plain bearing
