Institutional Series 330P, Wheel G

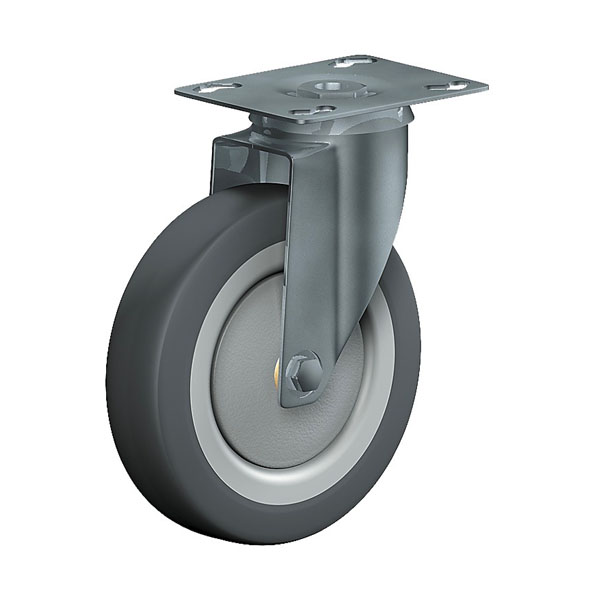

  • Swivel Castor Institutional Series 330P, Wheel G

    SWIVEL CASTOR

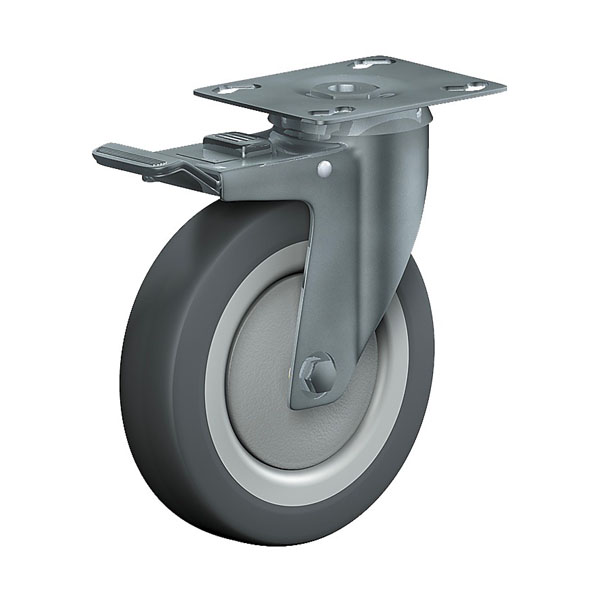

  • Swivel Castor With Total Lock Institutional Series 330P, Wheel G

    SWIVEL CASTOR WITH TOTAL LOCK

  • With Directional Lock Institutional Series 330P, Wheel G

    WITH DIRECTIONAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 330P, Wheel G

PDF product sheet
  • max 110 kg
  • -20 °C - +60 °C
  • 75-150 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 330P, Wheel G

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 330P, Wheel G

    Swivel Castor With Total Lock

  • With Directional Lock Institutional Series 330P, Wheel G

    With Directional Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • non-marking - floor protective
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Metal-Technology
  • Kitchen equipment
  • Workshops
  • Laboratory equipment
  • Instrument stands
  • Visual equipment
  • Carpentry
  • Mobile furniture
  • School furniture

Material

Material

Standard rubber tyre grey
Nylon rim

Fork material

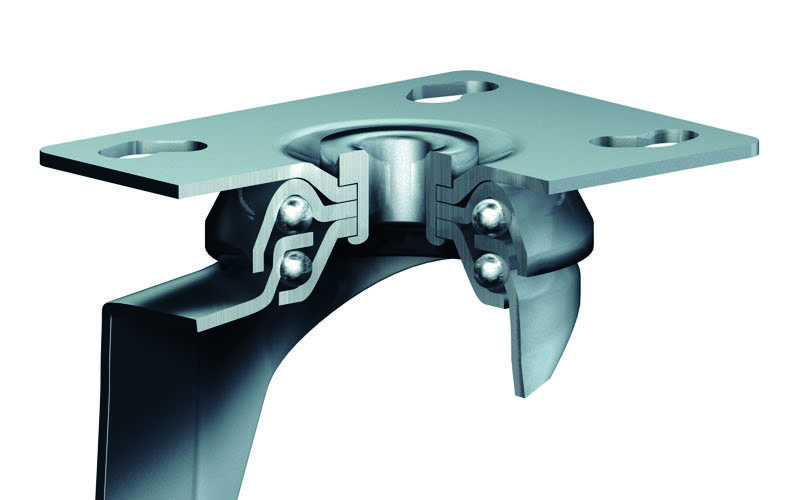

Finish: zinc plated and chromate coated, large double ball bearing – Ø 57 mm, revited, wheel axle bolted and locked, total-/ directional lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

4 of 4 items in this series are displayed.

Article number Articel type Price € QTY

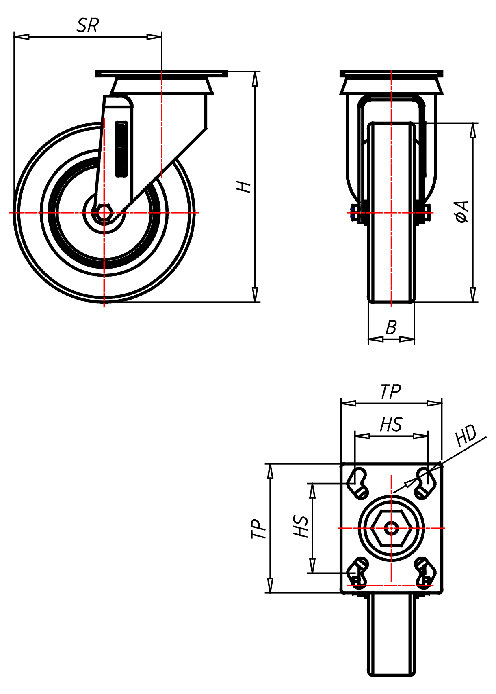

330 PT 76 GK

Institutional Series 330P, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x30

Institutional Series 330P, Wheel G

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 103
  • Plattengröße TP mm 90x70
  • Lochabstand HS mm 75x45/62x52
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 66
  • Radlagerung Ball bearing
331 PT 76 GK

Institutional Series 330P, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x30

Institutional Series 330P, Wheel G

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 103
  • Plattengröße TP mm 90x70
  • Lochabstand HS mm 75x45/62x52
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 107
  • Radlagerung Ball bearing
330 PT 150 GK

Institutional Series 330P, Wheel G

Swivel castor Wheel-∅ x width [mm]: 150x32

Institutional Series 330P, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 190
  • Plattengröße TP mm 90x70
  • Lochabstand HS mm 75x45/62x52
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing

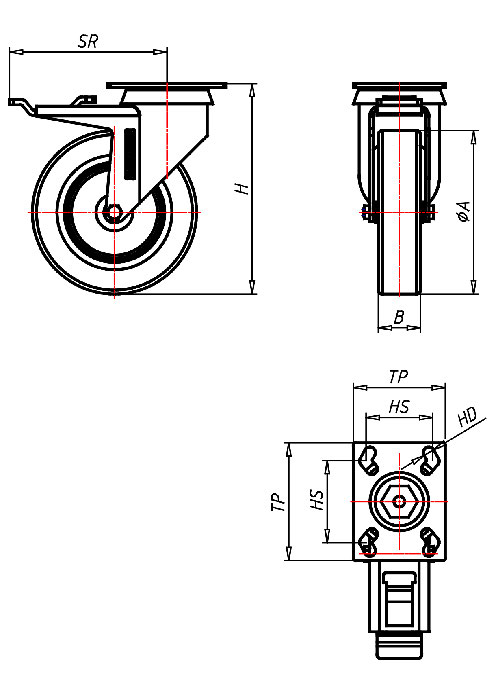

331 PT 150 GK

Institutional Series 330P, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330P, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 190
  • Plattengröße TP mm 90x70
  • Lochabstand HS mm 75x45/62x52
  • Loch-Ø HD mm 8,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
