Institutional Series 800R, Wheel GF
  • Swivel Castor Institutional Series 800R, Wheel GF

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 800R, Wheel GF

    SWIVEL CASTOR WITH TOTAL LOCK

  • With Directional Lock Institutional Series 800R, Wheel GF

    WITH DIRECTIONAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 800R, Wheel GF

PDF product sheet
  • max 120 kg
  • -20 °C - +70 °C
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Institutional Series 800R, Wheel GF

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 800R, Wheel GF

    Swivel Castor With Total Lock

  • With Directional Lock Institutional Series 800R, Wheel GF

    With Directional Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • high resistance to shocks
  • non-marking
  • easy to clean
  • good chemical resistance

Applications

  • Fahrbare Möbel
  • Küchenausstattung
  • Metalltechnik
  • Tischlerei Holzbau
  • Werkstätten
  • Servierwagen

Material

Material

Tread: Thermoplastic elastomer coating 95±3 Shore A**
High quality nylon wheel centre

Fork material

Finsh: moulded fiber glass polyamide, grey – RAL 7005, water proof precision ball bearing DIN 625 2RS – doubled sealed, wheel axle bolted, total-/directional lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY
800 RÜ12 102 GFK 33,80

Institutional Series 800R, Wheel GF

Swivel castor Wheel-∅ x width [mm]: 100x32

Institutional Series 800R, Wheel GF

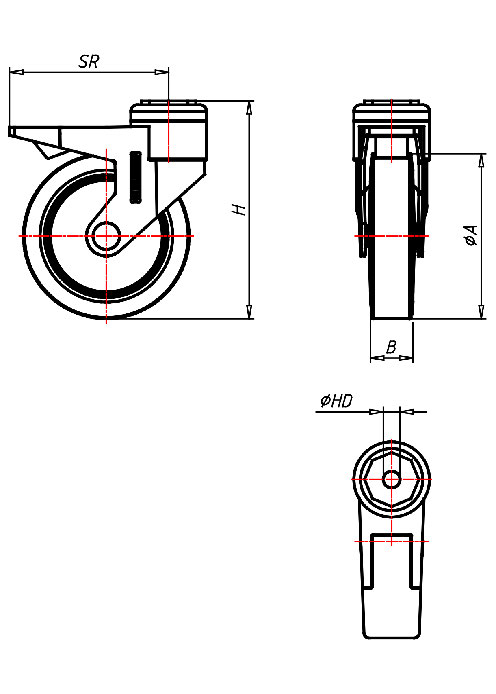

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 145
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 94
  • Radlagerung Ball bearing
801 RÜ12 102 GFK 39,30

Institutional Series 800R, Wheel GF

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 145
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing
807 RÜ12 102 GFK 43,50

Institutional Series 800R, Wheel GF

Swivel castor with directional lock Wheel-∅ x width [mm]: 100x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 145
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing
800 RÜ12 127 GFK 35,10

Institutional Series 800R, Wheel GF

Swivel castor Wheel-∅ x width [mm]: 125x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 165
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 111
  • Radlagerung Ball bearing
801 RÜ12 127 GFK 42,50

Institutional Series 800R, Wheel GF

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 165
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 120
  • Radlagerung Ball bearing
807 RÜ12 127 GFK 46,10

Institutional Series 800R, Wheel GF

Swivel castor with directional lock Wheel-∅ x width [mm]: 125x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 165
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 120
  • Radlagerung Ball bearing
800 RÜ12 150 GFK 55,40

Institutional Series 800R, Wheel GF

Swivel castor Wheel-∅ x width [mm]: 150x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 195
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Ball bearing
801 RÜ12 150 GFK 63,80

Institutional Series 800R, Wheel GF

Swivel castor with total lock Wheel-∅ x width [mm]: 150x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 195
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Ball bearing
807 RÜ12 150 GFK 68,00

Institutional Series 800R, Wheel GF

Swivel castor with directional lock Wheel-∅ x width [mm]: 150x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 195
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Ball bearing
800 RÜ12 200 GFK 70,10

Institutional Series 800R, Wheel GF

Swivel castor Wheel-∅ x width [mm]: 200x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 251
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Ball bearing
801 RÜ12 200 GFK 79,50

Institutional Series 800R, Wheel GF

Swivel castor with total lock Wheel-∅ x width [mm]: 200x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 251
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Ball bearing
807 RÜ12 200 GFK 82,70

Institutional Series 800R, Wheel GF

Swivel castor with directional lock Wheel-∅ x width [mm]: 200x32

Institutional Series 800R, Wheel GF

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 251
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Ball bearing
