Stainless Steel Series 330LXZ, Wheel TP

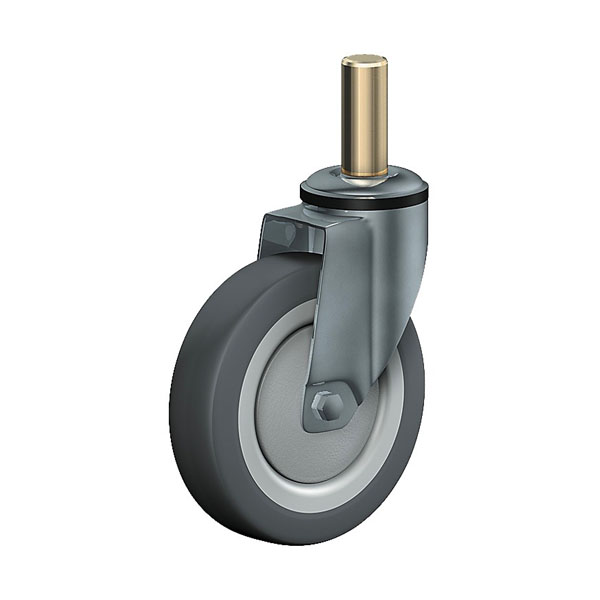

  • Swivel Castor Stainless Steel Series 330LXZ, Wheel TP

    SWIVEL CASTOR

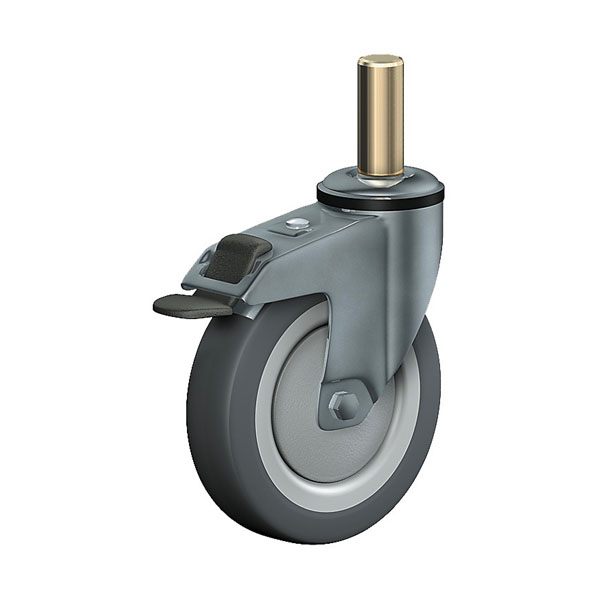

  • Swivel Castor With Total Lock Stainless Steel Series 330LXZ, Wheel TP

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series 330LXZ, Wheel TPEdelstahl

PDF product sheet
  • max 100 kg
  • -20 °C - +60 °C
  • 100-125 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series 330LXZ, Wheel TP

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series 330LXZ, Wheel TP

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • high resistance to shocks
  • non-marking
  • easy to clean
  • good chemical resistance

Applications

  • Food & dish carts
  • Food service carts
  • Food service carts
  • Food & dish carts
  • Wet environments
  • Health-Professionals

Material

Material

Tread: Thermoplastic elastomer coating 95±3 Shore A**
High quality nylon wheel centre

Fork material

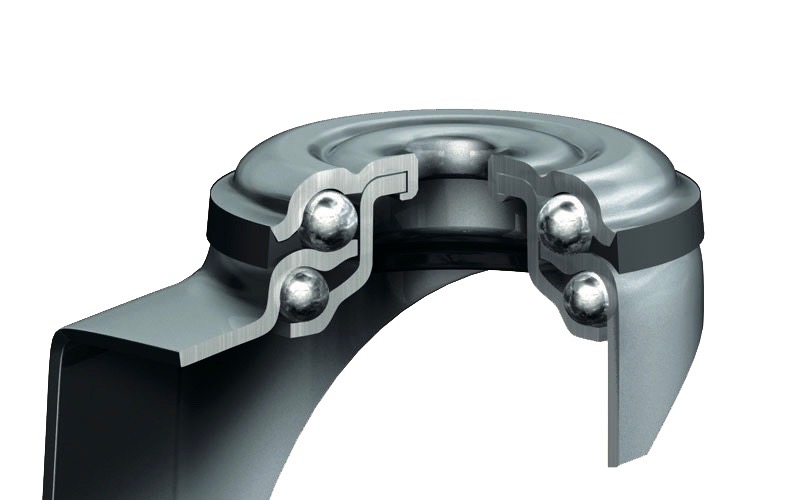

Stainless steel swivel fork with single bolt hole, large double ball bearing – Ø 57 mm, revited, wheel axle bolted and locked, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

8 of 8 items in this series are displayed.

Article number Articel type Price € QTY

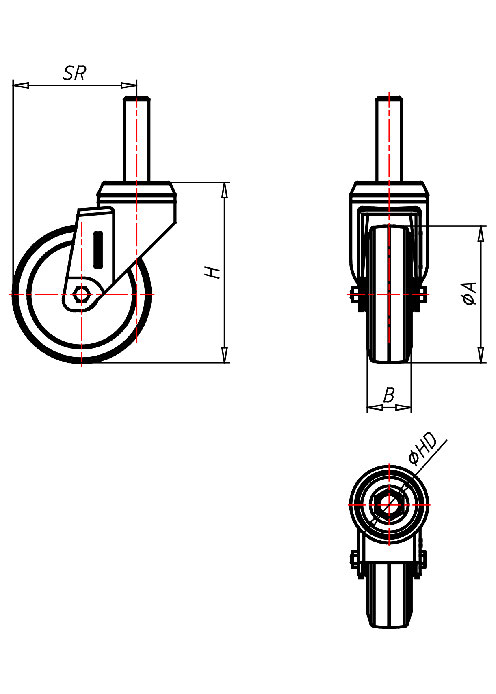

330LX Z18 102 TPKX

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 90
  • Radlagerung Ball bearing
331LX Z18 102 TPKX

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330LX Z18 102 TP

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 90
  • Radlagerung Nylon plain bearing

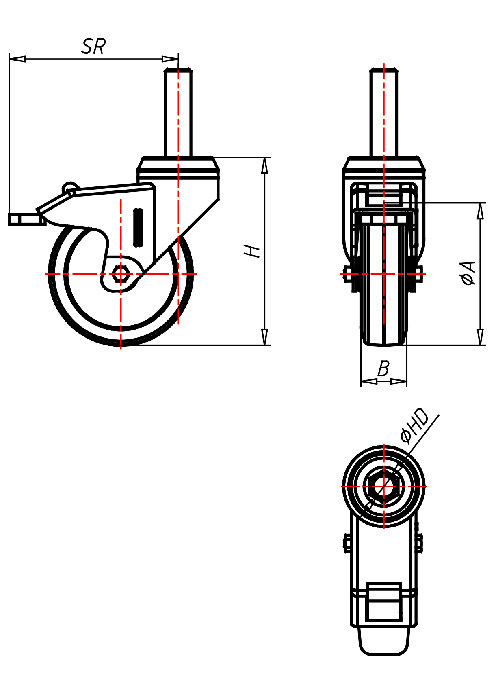

331LX Z18 102 TP

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 132
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
330LX Z18 127 TPKX

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 103
  • Radlagerung Ball bearing
331LX Z18 127 TPKX

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330LX Z18 127 TP

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 103
  • Radlagerung Nylon plain bearing
331LX Z18 127 TP

Stainless Steel Series 330LXZ, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series 330LXZ, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M6 auf 19
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
