Stainless Steel Series INSS, Wheel A
  • Swivel Castor Stainless Steel Series INSS, Wheel A

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Stainless Steel Series INSS, Wheel A

    SWIVEL CASTOR WITH TOTAL LOCK

  • Fixed Castor Stainless Steel Series INSS, Wheel A

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series INSS, Wheel AEdelstahl

PDF product sheet
  • max 800 kg
  • -30 °C - +80 °C
  • 125-200 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • +++
    weather proof

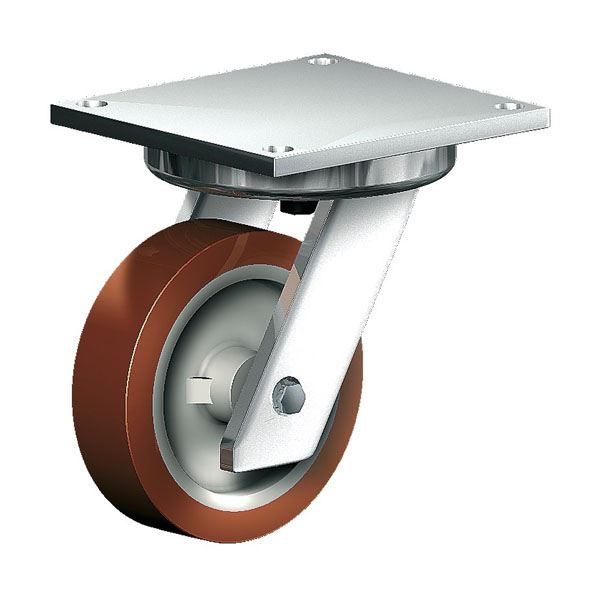

  • Swivel Castor Stainless Steel Series INSS, Wheel A

    Swivel Castor

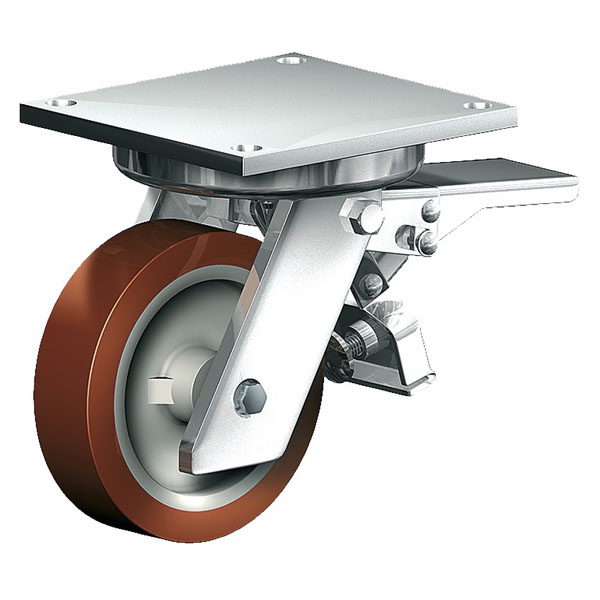

  • Swivel Castor With Total Lock Stainless Steel Series INSS, Wheel A

    Swivel Castor With Total Lock

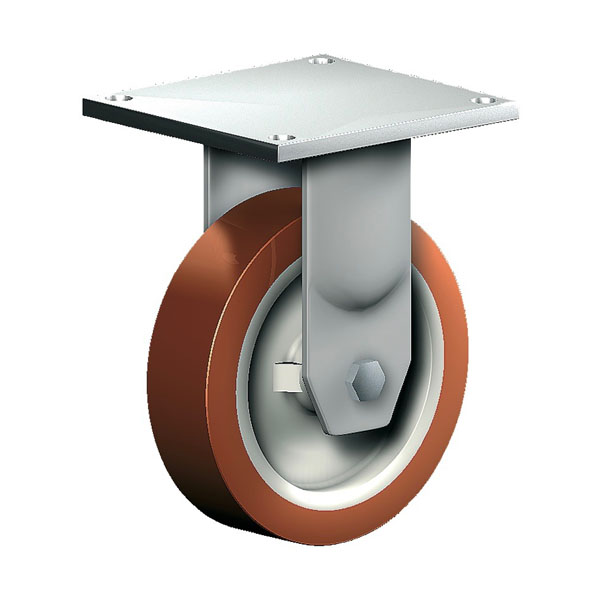

  • Fixed Castor Stainless Steel Series INSS, Wheel A

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • high abrasion and tear resistance
  • high resistance to shocks
  • easy to clean
  • good chemical resistance

Applications

  • Wet environments

Material

Material

Coated in cast polyurethane, 95±3 Shore A
High quality nylon wheel centre

Fork material

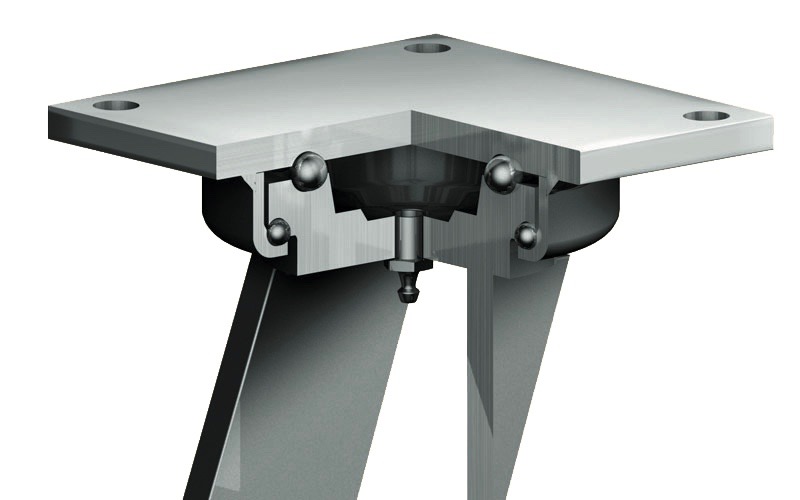

Finish: Polished stainless steel, welded stainless steel swivel fork without Kingpin, large diameter swivel raceway, fully sealed double ball race with permanent grease fillings, wheel axle bolted, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

11 of 11 items in this series are displayed.

Article number Articel type Price € QTY

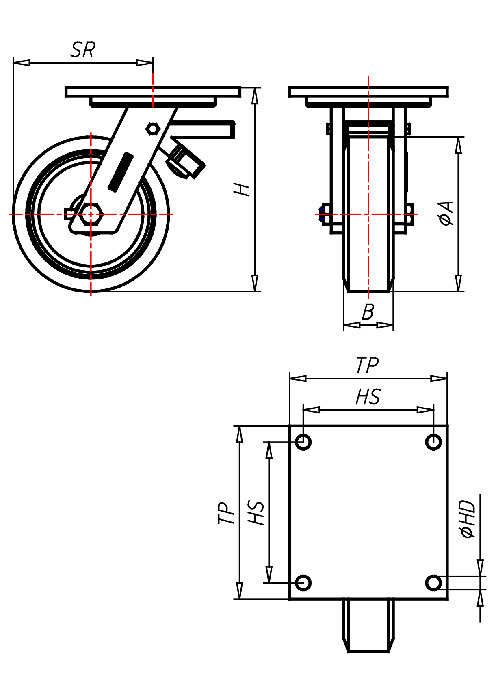

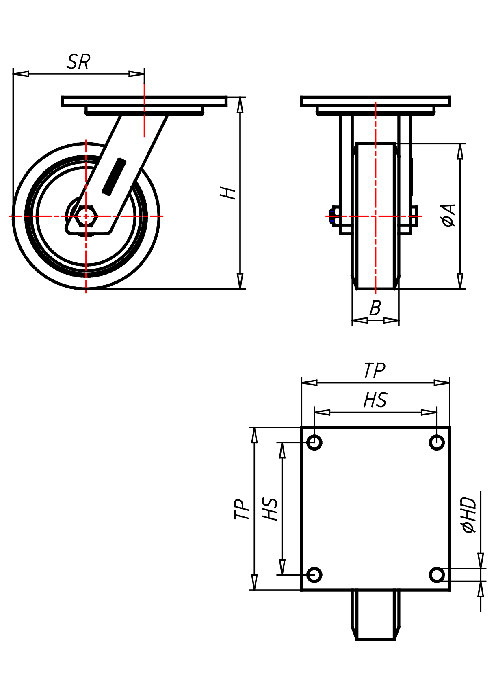

INSS 126 A

Stainless Steel Series INSS, Wheel A

Swivel castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 165
  • Plattengröße TP mm 140x127
  • Lochabstand HS mm 114x105
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 115
  • Radlagerung Nylon plain bearing
INSST 126 A

Stainless Steel Series INSS, Wheel A

Swivel castor with total lock Wheel-∅ x width [mm]: 125x45

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 165
  • Plattengröße TP mm 140x127
  • Lochabstand HS mm 114x105
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 115
  • Radlagerung Nylon plain bearing
INFSS 126 A

Stainless Steel Series INSS, Wheel A

Fixed castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 165
  • Plattengröße TP mm 140x127
  • Lochabstand HS mm 114x105
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
INSS 150 A

Stainless Steel Series INSS, Wheel A

Swivel castor Wheel-∅ x width [mm]: 150x48

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 132
  • Radlagerung Nylon plain bearing
INSST 150 A

Stainless Steel Series INSS, Wheel A

Swivel castor with total lock Wheel-∅ x width [mm]: 150x48

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 132
  • Radlagerung Nylon plain bearing
INFSS 150 A

Stainless Steel Series INSS, Wheel A

Fixed castor Wheel-∅ x width [mm]: 150x48

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
INSS 150 AA

Stainless Steel Series INSS, Wheel A

Swivel castor Wheel-∅ x width [mm]: 150x48+48

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 139
  • Radlagerung Nylon plain bearing

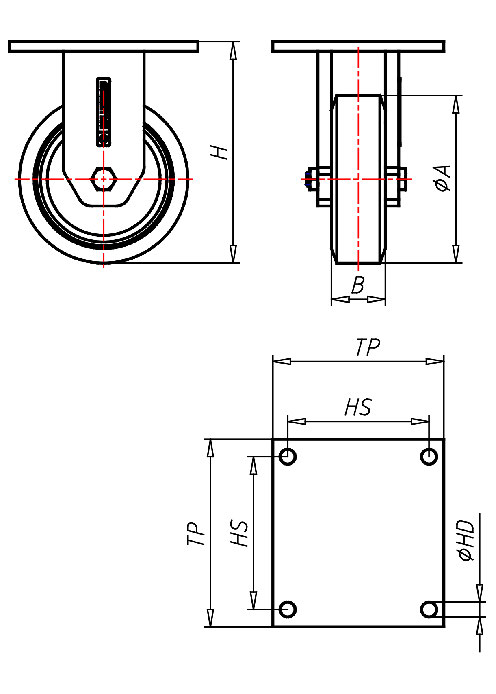

INFSS 150 AA

Stainless Steel Series INSS, Wheel A

Fixed castor Wheel-∅ x width [mm]: 150x48+48

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
INSS 200 A

Stainless Steel Series INSS, Wheel A

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 241
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 167
  • Radlagerung Nylon plain bearing
INSST 200 A

Stainless Steel Series INSS, Wheel A

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 241
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 167
  • Radlagerung Nylon plain bearing
INFSS 200 A

Stainless Steel Series INSS, Wheel A

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series INSS, Wheel A

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 241
  • Plattengröße TP mm 150x150
  • Lochabstand HS mm 125x125
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
