Stainless Steel Series QX, Wheel P

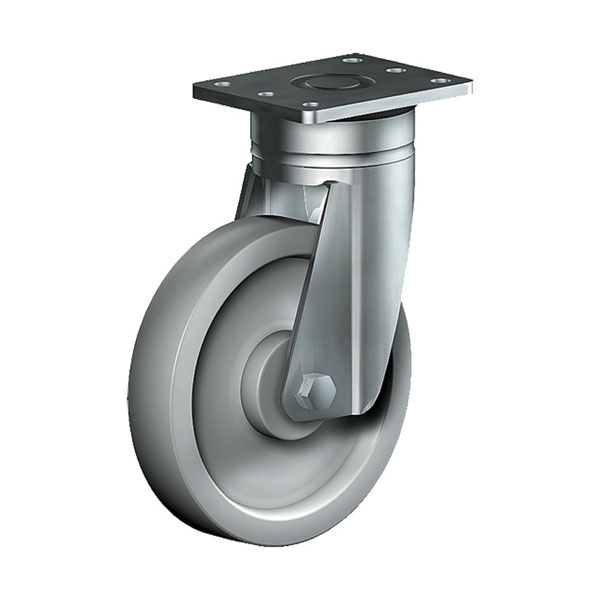

  • Swivel Castor Stainless Steel Series QX, Wheel P

    SWIVEL CASTOR

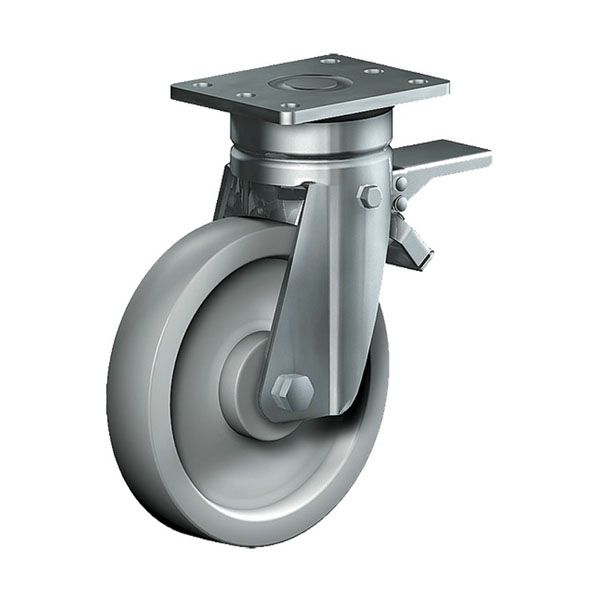

  • Swivel Castor With Total Lock Stainless Steel Series QX, Wheel P

    SWIVEL CASTOR WITH TOTAL LOCK

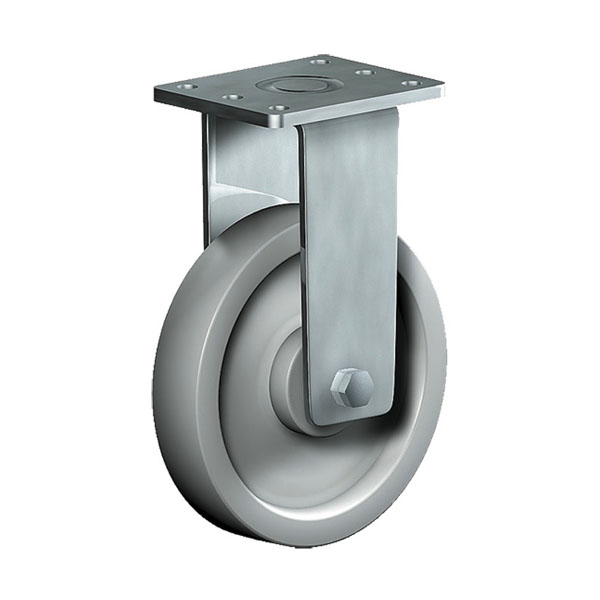

  • Fixed Castor Stainless Steel Series QX, Wheel P

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series QX, Wheel PEdelstahl

PDF product sheet
  • max 1200 kg
  • -30 °C - +80 °C
  • 125-200 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series QX, Wheel P

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series QX, Wheel P

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series QX, Wheel P

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Wet environments
  • Meat processing vats

Material

Material

Casted high quality nylon wheel

Fork material

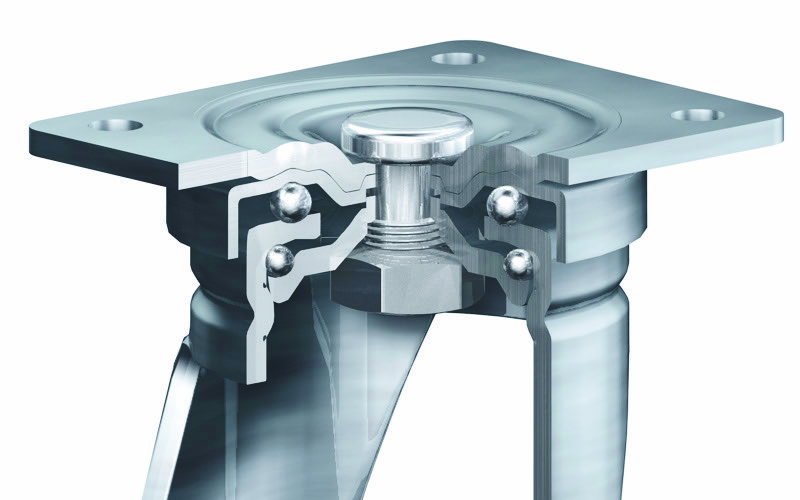

Finish: Polished stainless steel, swivel fork AISI 304, double ball bearing, very strong integrated Kingpin, wheel axle bolted, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

24 of 24 items in this series are displayed.

Article number Articel type Price € QTY

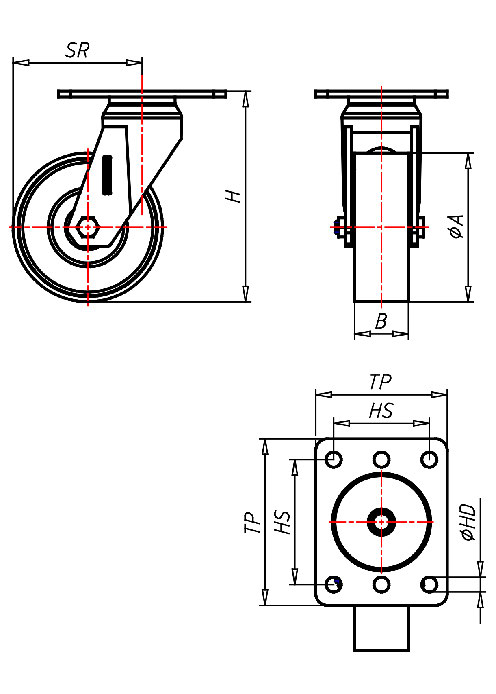

QX 126 PK

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing
QXT 126 PK

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Ball bearing
QXF 126 PK

Stainless Steel Series QX, Wheel P

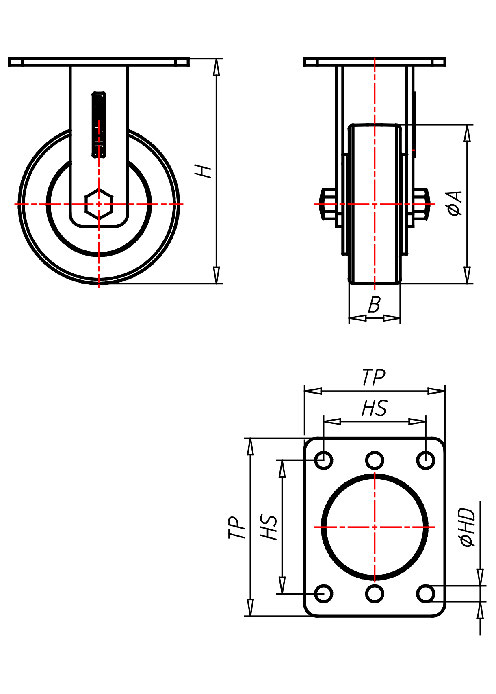

Fixed castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QX 126 P

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Nylon plain bearing
QXT 126 P

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Nylon plain bearing
QXF 126 P

Stainless Steel Series QX, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Nylon plain bearing
QX 151 PK

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x48

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 129
  • Radlagerung Ball bearing
QXT 151 PK

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x48

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 129
  • Radlagerung Ball bearing
QXF 151 PK

Stainless Steel Series QX, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x48

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Ball bearing
QX 151 P

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 129
  • Radlagerung Nylon plain bearing

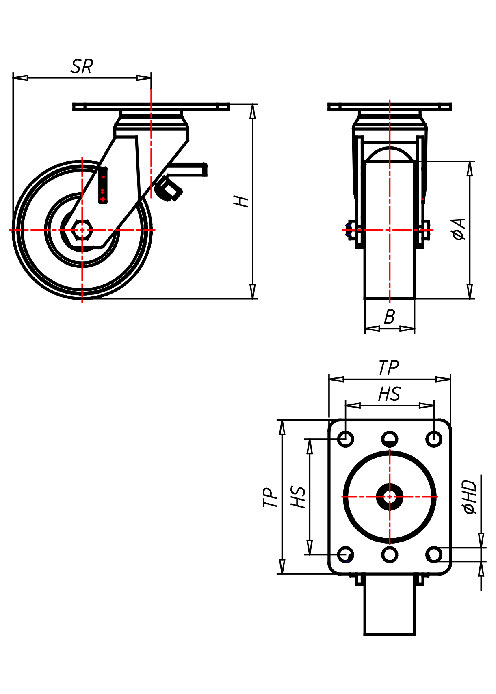

QXT 151 P

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 129
  • Radlagerung Nylon plain bearing
QXF 151 P

Stainless Steel Series QX, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x45

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Nylon plain bearing
QX 161 PK

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 160x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 216
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Ball bearing
QXT 161 PK

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 160x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 216
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Ball bearing
QXF 161 PK

Stainless Steel Series QX, Wheel P

Fixed castor Wheel-∅ x width [mm]: 160x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 216
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Ball bearing
QX 161 P

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 160x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 216
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Nylon plain bearing
QXT 161 P

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 160x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 216
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 134
  • Radlagerung Nylon plain bearing
QXF 161 P

Stainless Steel Series QX, Wheel P

Fixed castor Wheel-∅ x width [mm]: 160x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 216
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Nylon plain bearing
QX 201 PK

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing
QXT 201 PK

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing
QXF 201 PK

Stainless Steel Series QX, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QX 201 P

Stainless Steel Series QX, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Nylon plain bearing
QXT 201 P

Stainless Steel Series QX, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Nylon plain bearing
QXF 201 P

Stainless Steel Series QX, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series QX, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Nylon plain bearing
