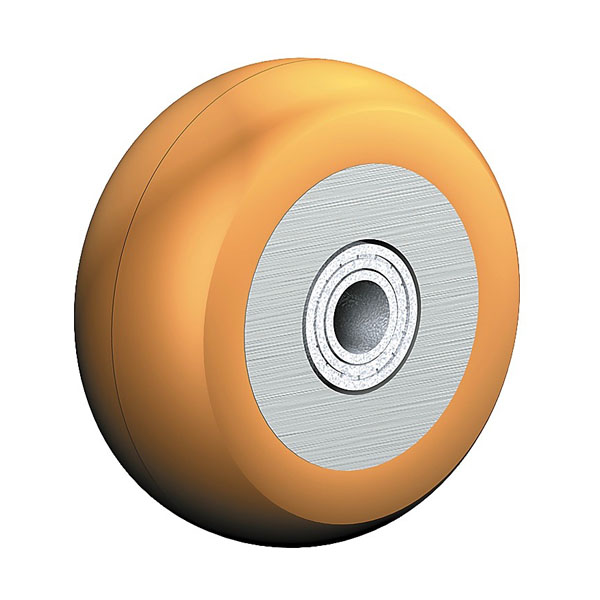

Wheels Series BA
  •  Wheels Series BA

Select the required versions in order to show them already filtered in the following table.

Wheels Series BA

PDF product sheet
  • max 800 kg
  • -20 °C - +80 °C
  • 65-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  •  Wheels Series BA

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • ergonimic running with crowned Vulkollan® tread
  • very silent in motion
  • very low rolling resistance
  • easy in revving
  • high abrasion and tear resistance
  • good chemical resistance

Applications

  • Fork-lifts

Material

Material

Vulkollan® Crowned wheel tread

Vulkollan® Crowned wheel tread

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

7 of 7 items in this series are displayed.

Article number Articel type Price € QTY
69BA65-30

Wheels Series BA, Wheel

Wheel Wheel-∅ x width [mm]: 65x30

Wheels Series BA, Wheel

Technische Daten

  • Tragkraft kg 150
  • Nabenlänge mm 30
  • Einbaulänge mm 30
  • Bohrungsdurchmesser mm 12
69BA80-40

Wheels Series BA, Wheel

Wheel Wheel-∅ x width [mm]: 80x40

Wheels Series BA, Wheel

Technische Daten

  • Tragkraft kg 250
  • Nabenlänge mm 40
  • Einbaulänge mm 40
  • Bohrungsdurchmesser mm 12
69BA100-40

Wheels Series BA, Wheel

Wheel Wheel-∅ x width [mm]: 100x40

Wheels Series BA, Wheel

Technische Daten

  • Tragkraft kg 350
  • Nabenlänge mm 40
  • Einbaulänge mm 40
  • Bohrungsdurchmesser mm 12
69BA125-45

Wheels Series BA, Wheel

Wheel Wheel-∅ x width [mm]: 125x45

Wheels Series BA, Wheel

Technische Daten

  • Tragkraft kg 450
  • Nabenlänge mm 45
  • Einbaulänge mm 45
  • Bohrungsdurchmesser mm 20
69BA150-50

Wheels Series BA, Wheel

Wheel Wheel-∅ x width [mm]: 150x50

Wheels Series BA, Wheel

Technische Daten

  • Tragkraft kg 600
  • Nabenlänge mm 50
  • Einbaulänge mm 50
  • Bohrungsdurchmesser mm 20
69BA180-50

Wheels Series BA, Wheel

Wheel Wheel-∅ x width [mm]: 180x50

Wheels Series BA, Wheel

Technische Daten

  • Tragkraft kg 700
  • Nabenlänge mm 50
  • Einbaulänge mm 50
  • Bohrungsdurchmesser mm 20
69BA200-50

Wheels Series BA, Wheel

Wheel Wheel-∅ x width [mm]: 200x50

Wheels Series BA, Wheel

Technische Daten

  • Tragkraft kg 800
  • Nabenlänge mm 50
  • Einbaulänge mm 50
  • Bohrungsdurchmesser mm 20
