Wheels Series L, Wheel TYP A
  • Type A Wheels Series L, Wheel TYP A

    TYPE A

Select the required versions in order to show them already filtered in the following table.

Wheels - Pneumatic Wheels Series L TYP A

PDF product sheet
  • max 150 kg
  • -10 °C - +40 °C
  • 180-260 mm
  • ++
    swivels easily
  • +
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Type A Wheels Series L, Wheel TYP A

    Type A

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • excellent anti shock absorption
  • very low rolling resistance
  • very silent in motion
  • high running performance
  • non-marking in grey

Applications

  • Bins
  • Refuse bins
  • Trash containers
  • Refuse containers

Material

Material

Tread: grey rubber
Revited steel rim, zinc-plated

Documents/CAD

Cadenas Partcommunity-Portal

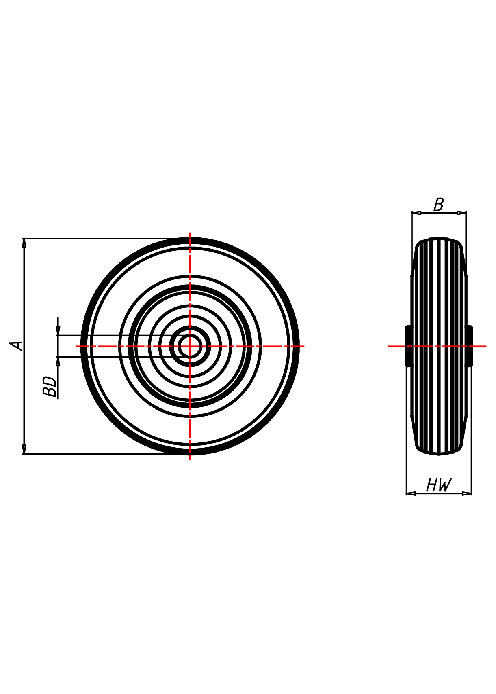

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

3 of 3 items in this series are displayed.

Article number Articel type Price € QTY
180 LGB 20

Wheels Series L, Wheel TYP A

Wheel Wheel-∅ x width [mm]: 180x45

Wheels Series L, Wheel TYP A

Technische Daten

  • Tragkraft kg 75
  • Nabenlänge mm 60
  • Einbaulänge mm 60
  • Radlagerung Roller bearing
  • Bohrungsdurchmesser mm 20
  • Radtype A
  • Felge zinc plated
  • Reifen grey
200 LGB 20

Wheels Series L, Wheel TYP A

Wheel Wheel-∅ x width [mm]: 200x50

Wheels Series L, Wheel TYP A

Technische Daten

  • Tragkraft kg 75
  • Nabenlänge mm 60
  • Einbaulänge mm 60
  • Radlagerung Roller bearing
  • Bohrungsdurchmesser mm 20
  • Radtype A
  • Felge zinc plated
  • Reifen grey
260 LGB 20

Wheels Series L, Wheel TYP A

Wheel Wheel-∅ x width [mm]: 260x85

Wheels Series L, Wheel TYP A

Technische Daten

  • Tragkraft kg 150
  • Nabenlänge mm 75
  • Einbaulänge mm 75
  • Radlagerung Roller bearing
  • Bohrungsdurchmesser mm 20
  • Radtype C
  • Felge zinc plated
  • Reifen black
