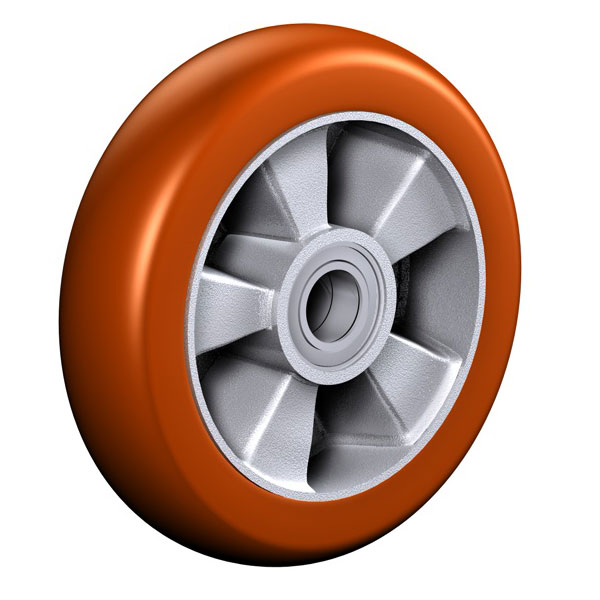

Wheels Series TLBA
  •  Wheels Series TLBA

Select the required versions in order to show them already filtered in the following table.

Wheels Series TLBA

PDF product sheet
  • max 775 kg
  • -20 °C - +80 °C
  • 100-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  •  Wheels Series TLBA

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • ergonimic running with crowned tread
  • very silent in motion
  • very low rolling resistance
  • easy in revving
  • high abrasion and tear resistance
  • good chemical resistance

Applications

  • Fork-lifts

Material

Material

Tread: cast polyurethane, 95 ± 2 Shore A crowned
Core: Die-cast aluminium alloy

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

4 of 4 items in this series are displayed.

Article number Articel type Price € QTY
100 TLBAK 20

Wheels Series TLBA, Wheel

Wheel Wheel-∅ x width [mm]: 100x50

Wheels Series TLBA, Wheel

Technische Daten

  • Tragkraft kg 350
  • Nabenlänge mm 50
  • Einbaulänge mm 50
  • Radlagerung 2 Ball bearings 6204 2RS
  • Bohrungsdurchmesser mm 20
125 TLBAK 20

Wheels Series TLBA, Wheel

Wheel Wheel-∅ x width [mm]: 125x50

Wheels Series TLBA, Wheel

Technische Daten

  • Tragkraft kg 450
  • Nabenlänge mm 56
  • Einbaulänge mm 56
  • Radlagerung 2 Ball bearings 6204 2RS
  • Bohrungsdurchmesser mm 20
150 TLBAK 20

Wheels Series TLBA, Wheel

Wheel Wheel-∅ x width [mm]: 150x50

Wheels Series TLBA, Wheel

Technische Daten

  • Tragkraft kg 575
  • Nabenlänge mm 56
  • Einbaulänge mm 56
  • Radlagerung 2 Ball bearings 6204 2RS
  • Bohrungsdurchmesser mm 20
200 TLBAK 20

Wheels Series TLBA, Wheel

Wheel Wheel-∅ x width [mm]: 200x50

Wheels Series TLBA, Wheel

Technische Daten

  • Tragkraft kg 775
  • Nabenlänge mm 56
  • Einbaulänge mm 56
  • Radlagerung 2 Ball bearings 6204 2RS
  • Bohrungsdurchmesser mm 20
