Extra Heavy Duty Series QD, Wheel PE

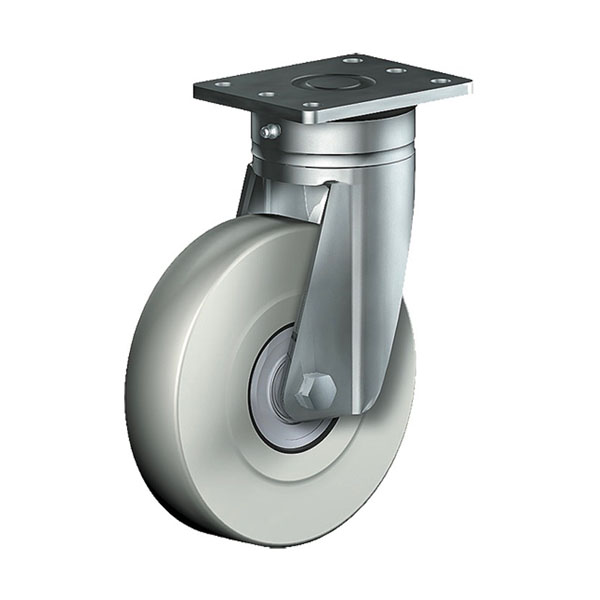

  • Swivel Castor Extra Heavy Duty Series QD, Wheel PE

    SWIVEL CASTOR

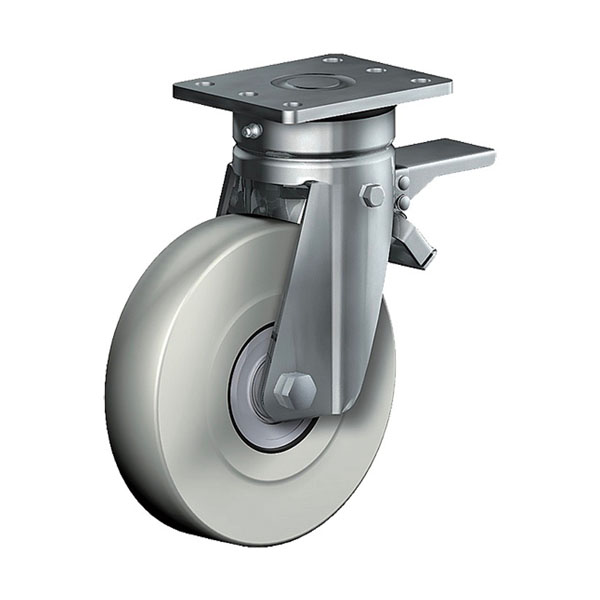

  • Swivel Castor With Total Lock Extra Heavy Duty Series QD, Wheel PE

    SWIVEL CASTOR WITH TOTAL LOCK

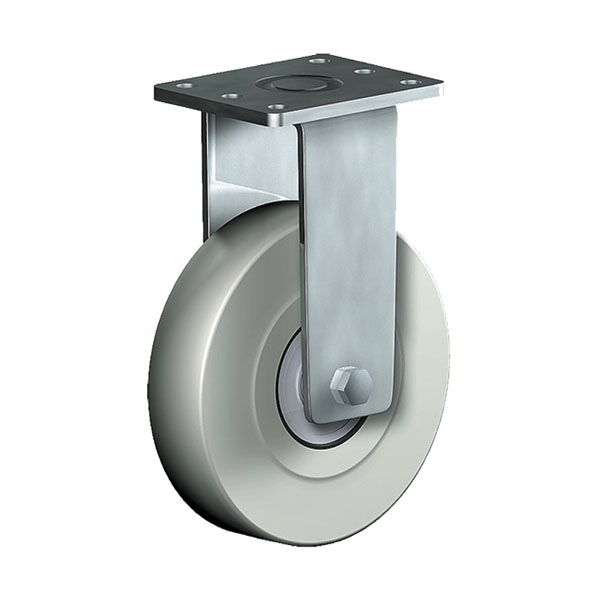

  • Fixed Castor Extra Heavy Duty Series QD, Wheel PE

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Extra Heavy Duty Series QD, Wheel PE

PDF product sheet
  • max 1500 kg
  • -30 °C - +80 °C
  • 125-250 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Extra Heavy Duty Series QD, Wheel PE

    Swivel Castor

  • Swivel Castor With Total Lock Extra Heavy Duty Series QD, Wheel PE

    Swivel Castor With Total Lock

  • Fixed Castor Extra Heavy Duty Series QD, Wheel PE

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • for extra heavy loads
  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Heavy duty dollies
  • Trash container trucks
  • Machinery moving dollies
  • Racks

Material

Material

Casted high quality nylon wheel

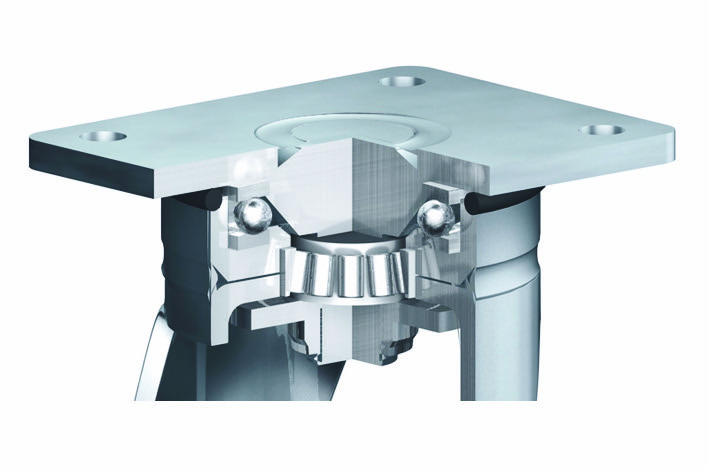

Fork material

Pressed steel welded construction,
with axial ball bearing and tapered roller bearing,
dust protection ring,
very strong integrated Kingpin,
grease nipple,
wheel axle with self-locking nut finish: zinc plated

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

9 of 9 items in this series are displayed.

Article number Articel type Price € QTY

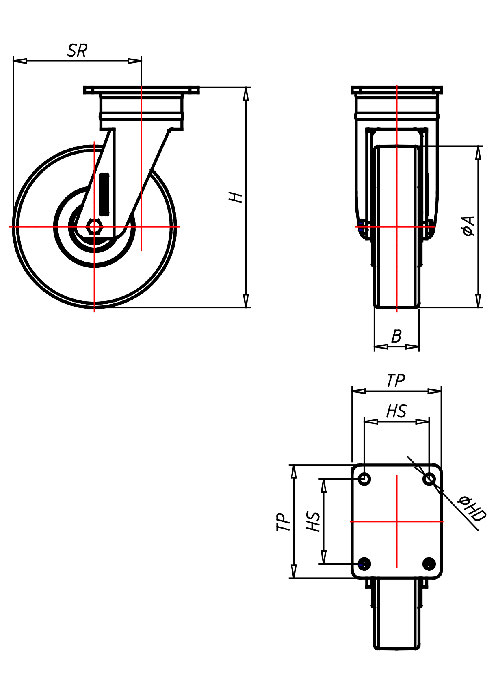

QD 125 PEK

Extra Heavy Duty Series QD, Wheel PE

Swivel castor Wheel-∅ x width [mm]: 125x40

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing

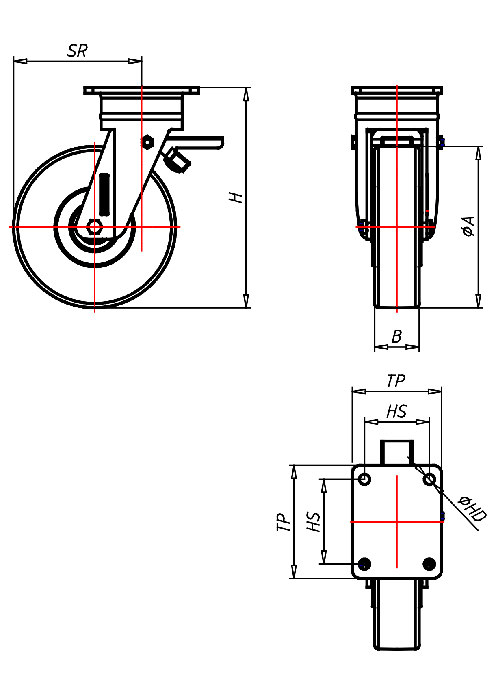

QDT 125 PEK

Extra Heavy Duty Series QD, Wheel PE

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Ball bearing
QDF 125 PEK

Extra Heavy Duty Series QD, Wheel PE

Fixed castor Wheel-∅ x width [mm]: 125x40

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QD 200 PEK

Extra Heavy Duty Series QD, Wheel PE

Swivel castor Wheel-∅ x width [mm]: 200x55

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing
QDT 200 PEK

Extra Heavy Duty Series QD, Wheel PE

Swivel castor with total lock Wheel-∅ x width [mm]: 200x55

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing

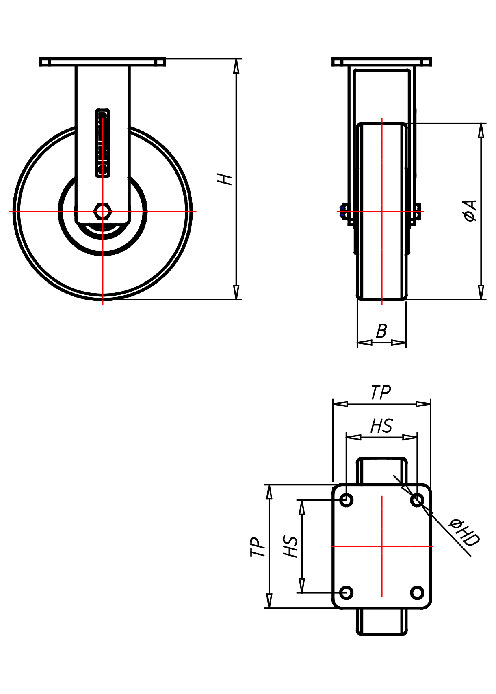

QDF 200 PEK

Extra Heavy Duty Series QD, Wheel PE

Fixed castor Wheel-∅ x width [mm]: 200x55

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QD 250 PEK

Extra Heavy Duty Series QD, Wheel PE

Swivel castor Wheel-∅ x width [mm]: 250x65

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 198
  • Radlagerung Ball bearing
QDT 250 PEK

Extra Heavy Duty Series QD, Wheel PE

Swivel castor with total lock Wheel-∅ x width [mm]: 250x65

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 198
  • Radlagerung Ball bearing
QDF 250 PEK

Extra Heavy Duty Series QD, Wheel PE

Fixed castor Wheel-∅ x width [mm]: 250x65

Extra Heavy Duty Series QD, Wheel PE

Technische Daten

  • Tragkraft kg 1500
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
