Extra Heavy Duty Series QD, Wheel P
  • Swivel Castor Extra Heavy Duty Series QD, Wheel P

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Extra Heavy Duty Series QD, Wheel P

    SWIVEL CASTOR WITH TOTAL LOCK

  • Fixed Castor Extra Heavy Duty Series QD, Wheel P

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Extra Heavy Duty Series QD, Wheel P

PDF product sheet
  • max 1400 kg
  • -30 °C - +80 °C
  • 125-250 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • +++
    weather proof

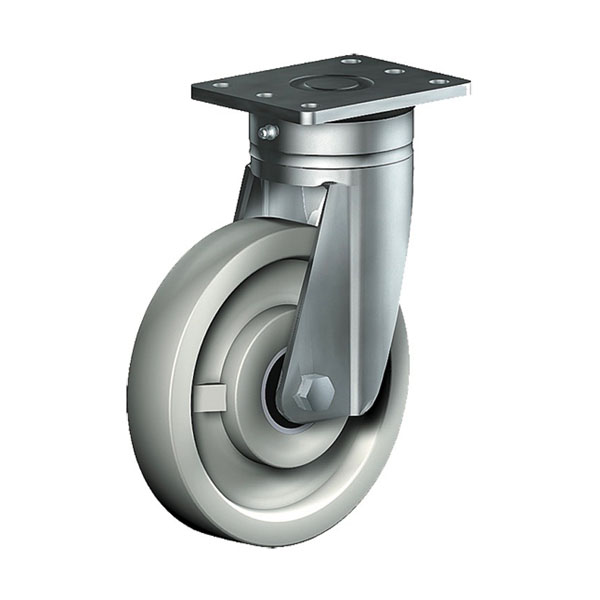

  • Swivel Castor Extra Heavy Duty Series QD, Wheel P

    Swivel Castor

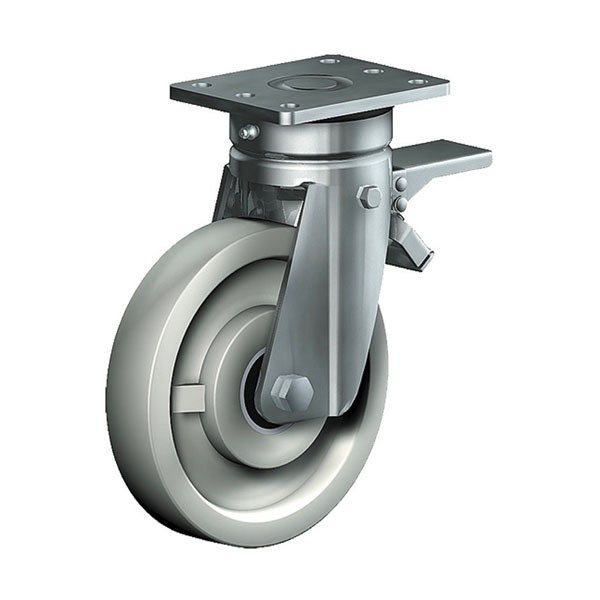

  • Swivel Castor With Total Lock Extra Heavy Duty Series QD, Wheel P

    Swivel Castor With Total Lock

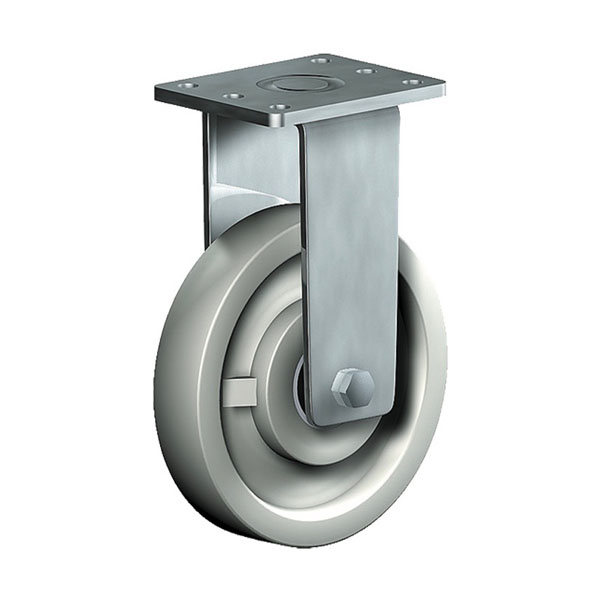

  • Fixed Castor Extra Heavy Duty Series QD, Wheel P

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Heavy duty dollies
  • Trash container trucks
  • Machinery moving dollies
  • Racks

Material

Material

Casted high quality nylon wheel

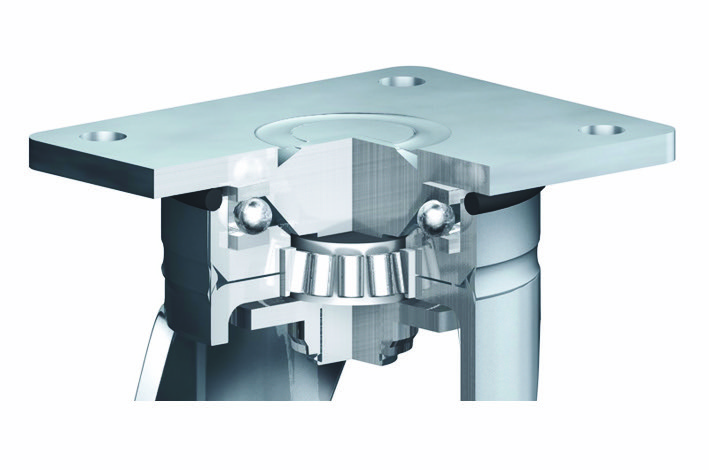

Fork material

Pressed steel welded construction,
with axial ball bearing and tapered roller bearing,
dust protection ring,
very strong integrated Kingpin,
grease nipple,
wheel axle with self-locking nut finish: zinc plated

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

30 of 30 items in this series are displayed.

Article number Articel type Price € QTY
QD 126 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing
QDT 126 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x45

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Ball bearing
QDF 126 PK

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x45

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing

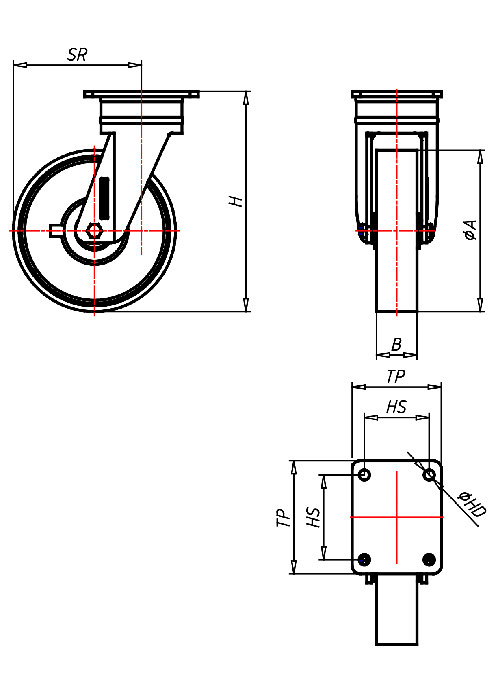

QD 126 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Nylon plain bearing
QDT 126 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x45

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Nylon plain bearing
QDF 126 P

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x45

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 177
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Nylon plain bearing
QD 151 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x48

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
QDT 151 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x48

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing

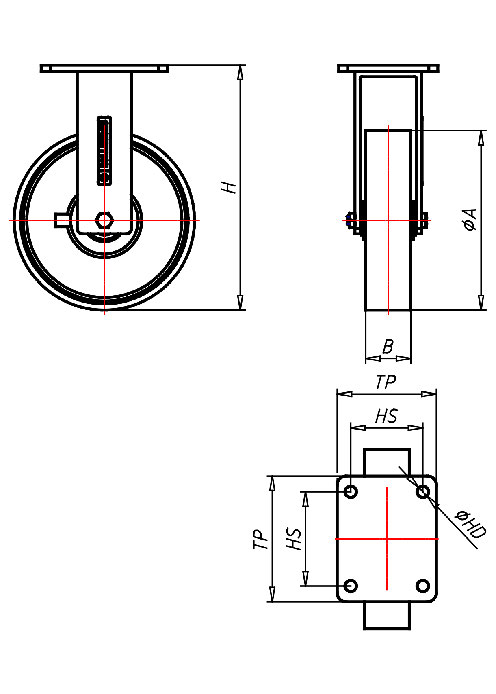

QDF 151 PK

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x48

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QD 151 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing

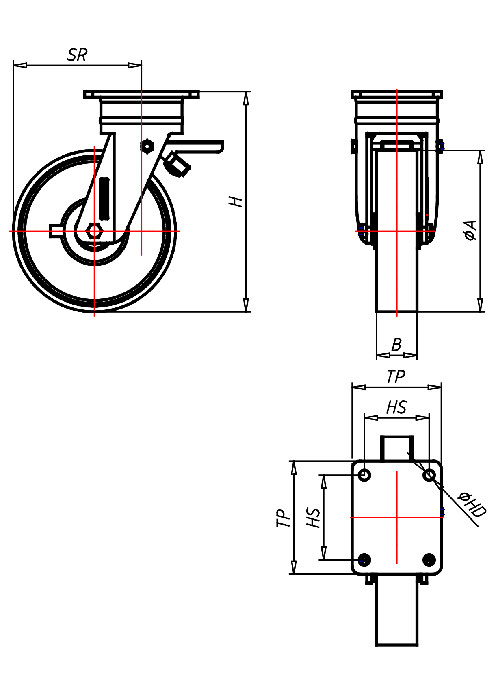

QDT 151 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
QDF 151 P

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 800
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Nylon plain bearing
QD 161 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 160x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 135
  • Radlagerung Ball bearing
QDT 161 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 160x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 135
  • Radlagerung Ball bearing
QDF 161 PK

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 160x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QD 161 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 160x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 135
  • Radlagerung Roller bearing
QDT 161 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 160x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 135
  • Radlagerung Roller bearing
QDF 161 P

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 160x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 850
  • Bauhöhe H mm 205
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Roller bearing
QD 201 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing
QDT 201 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing
QDF 201 PK

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QD 201 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Nylon plain bearing
QDT 201 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Nylon plain bearing
QDF 201 P

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Nylon plain bearing
QD 250 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 250x60

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1400
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 197
  • Radlagerung Ball bearing
QDT 250 PK

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 250x60

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1400
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 197
  • Radlagerung Ball bearing
QDF 250 PK

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 250x60

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1400
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
QD 250 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor Wheel-∅ x width [mm]: 250x60

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 197
  • Radlagerung Nylon plain bearing
QDT 250 P

Extra Heavy Duty Series QD, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 250x60

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 197
  • Radlagerung Nylon plain bearing
QDF 250 P

Extra Heavy Duty Series QD, Wheel P

Fixed castor Wheel-∅ x width [mm]: 250x60

Extra Heavy Duty Series QD, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x110
  • Lochabstand HS mm 105x80/121x59
  • Loch-Ø HD mm 12,5
  • Radlagerung Nylon plain bearing

Suitable accessories
