Heat Series CRH, Wheel HE

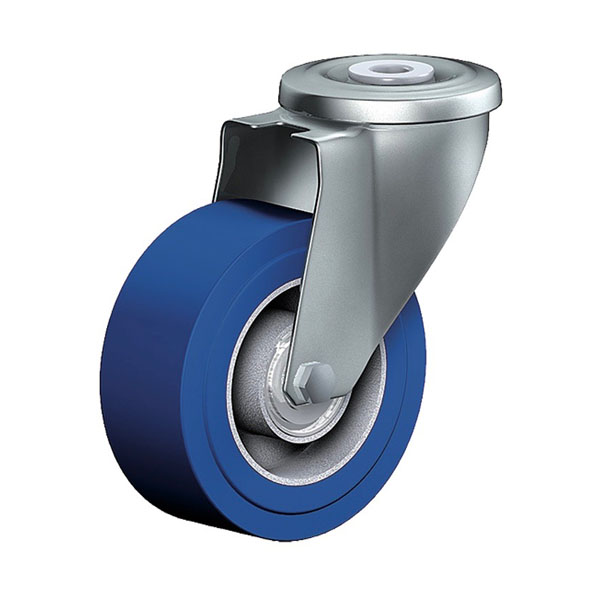

  • Swivel Castor Heat Series CRH, Wheel HE

    SWIVEL CASTOR

  •  Heat Series CRH, Wheel HE

Select the required versions in order to show them already filtered in the following table.

Heat Series CRH, Wheel HE

PDF product sheet
  • max 80 kg
  • -40 °C - +250 °C
  • 100-100 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Heat Series CRH, Wheel HE

    Swivel Castor

  •  Heat Series CRH, Wheel HE

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • heat resistant
  • silent in motion
  • good running    performance
  • resistant to diluted acids

Applications

  • Bread racks

Material

Material

Standard rubber tyre black, heat-resistant
Bolted steel rim, zinc-plated

Fork material

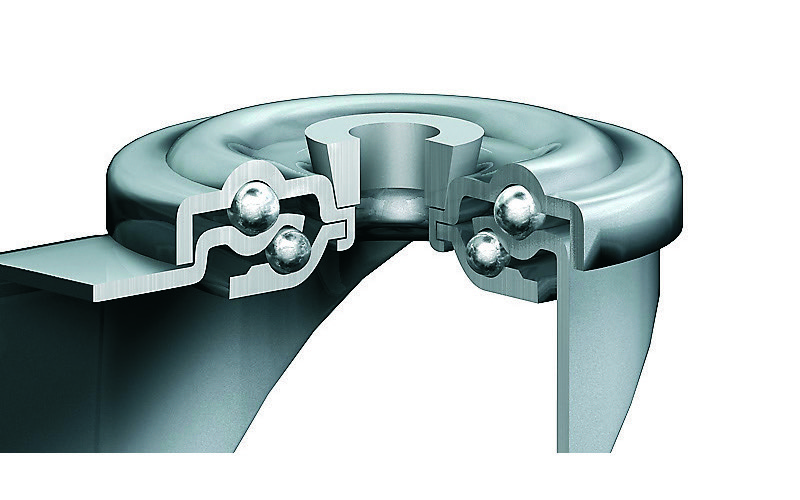

Finish: electro-zinc plated, double ball bearing – revited, hardened steel balls, high melting point grease, wheel axle bolted

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

1 of 1 items in this series are displayed.

Article number Articel type Price € QTY
CRH 100 HEK

Heat Series CRH, Wheel HE

Swivel castor Wheel-∅ x width [mm]: 100x40

Heat Series CRH, Wheel HE

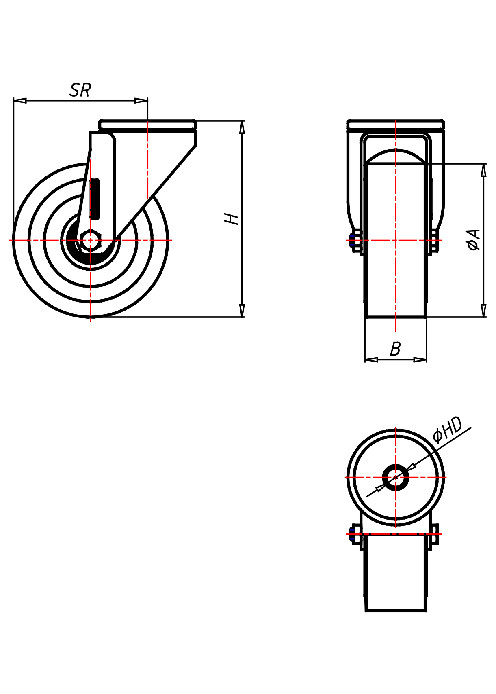

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 89
  • Radlagerung Ball bearing

Suitable accessories
