Heat Series XRH, Wheel FS

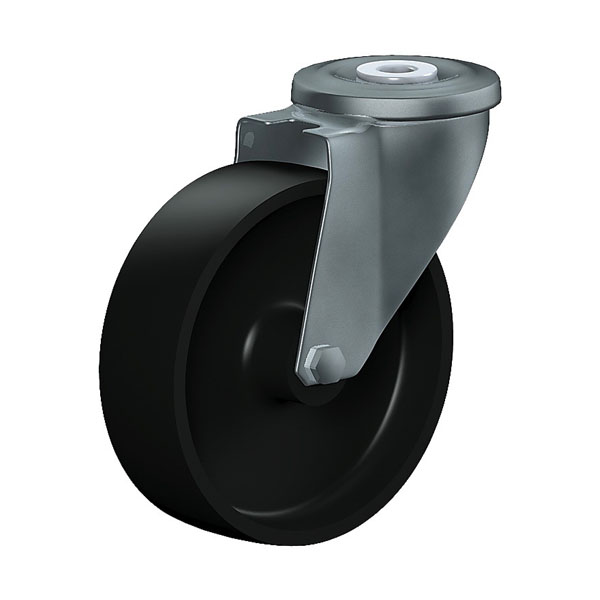

  • Swivel Castor Heat Series XRH, Wheel FS

    SWIVEL CASTOR

Select the required versions in order to show them already filtered in the following table.

Heat Series XRH, Wheel FS

PDF product sheet
  • max 370 kg
  • -40 °C - +270 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Heat Series XRH, Wheel FS

    Swivel Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

Applications

  • Bread racks

Material

Material

Wheel made of special thermo resistant compound

Fork material

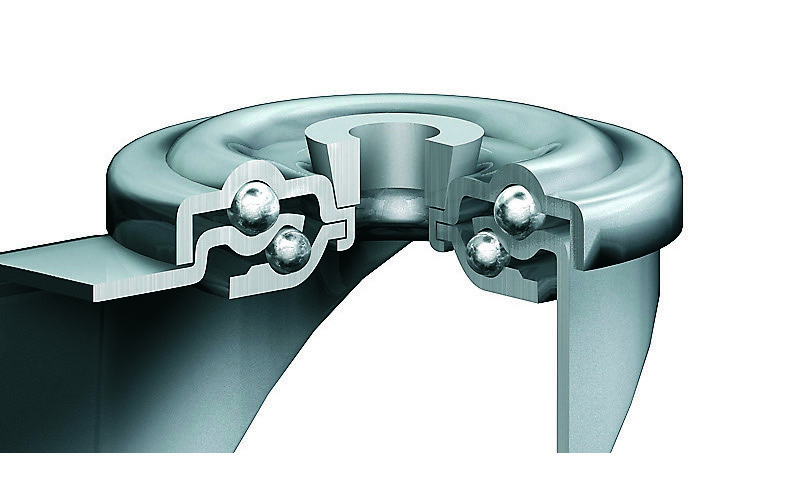

Finish: Polished stainless steel housing AISI 304, stainless steel balls AISI 420, double ball bearing, revited, high melting point grease, wheel axle bolted

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

5 of 5 items in this series are displayed.

Article number Articel type Price € QTY

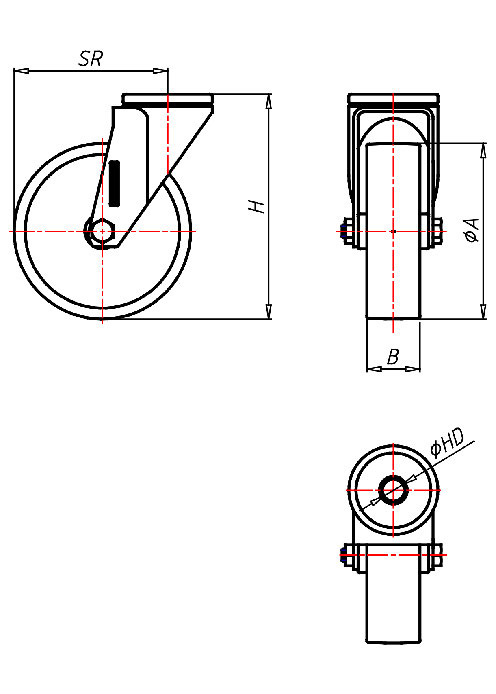

XRH 80 FS

Heat Series XRH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 80x30

Heat Series XRH, Wheel FS

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 75
  • Radlagerung Plain bearing
XRH 100 FS

Heat Series XRH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 100x30

Heat Series XRH, Wheel FS

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Plain bearing
XRSH 125 FS

Heat Series XRH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 125x35

Heat Series XRH, Wheel FS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 113
  • Radlagerung Plain bearing
XRH 150 FS

Heat Series XRH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 150x45

Heat Series XRH, Wheel FS

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 203
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 137
  • Radlagerung Plain bearing
XRH 200 FS

Heat Series XRH, Wheel FS

Swivel castor Wheel-∅ x width [mm]: 200x50

Heat Series XRH, Wheel FS

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Plain bearing
