Heat Series XDH, Wheel HB

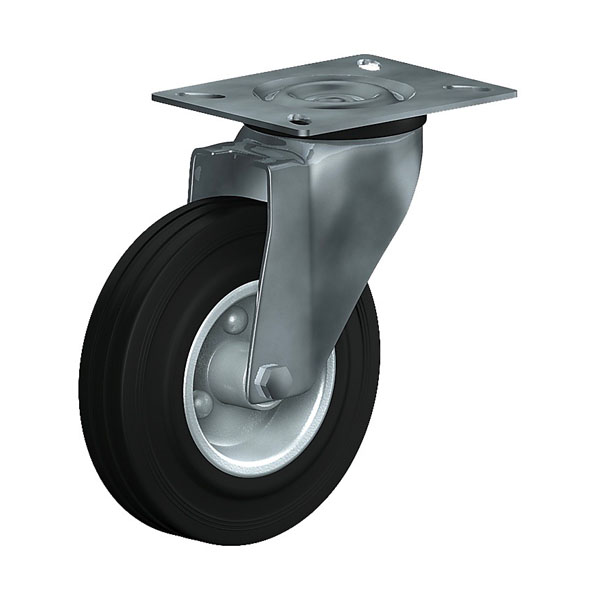

  • Swivel Castor Heat Series XDH, Wheel HB

    SWIVEL CASTOR

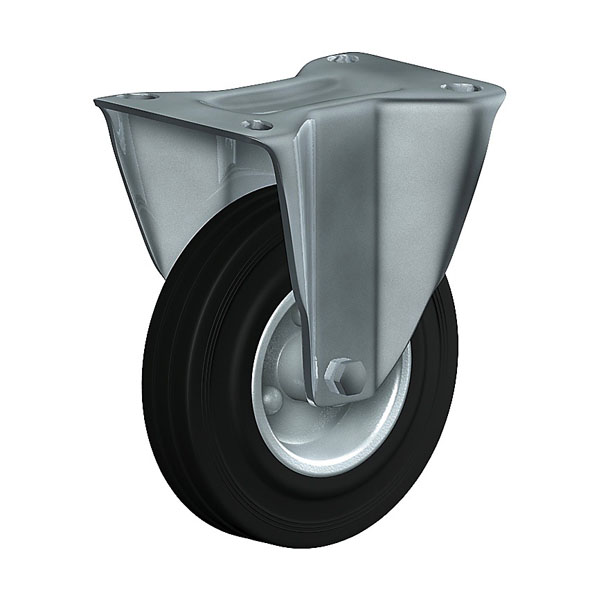

  • Fixed Castor Heat Series XDH, Wheel HB

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Heat Series XDH, Wheel HB

PDF product sheet
  • max 230 kg
  • -20 °C - +120 °C
  • 100-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Heat Series XDH, Wheel HB

    Swivel Castor

  • Fixed Castor Heat Series XDH, Wheel HB

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

Advantages

  • heat resistant
  • silent in motion
  • good running    performance
  • resistant to diluted acids

Applications

  • Bread racks
  • Meat processing vats

Material

Material

Standard rubber tyre black, heat-resistant
Bolted steel rim, zinc-plated

Fork material

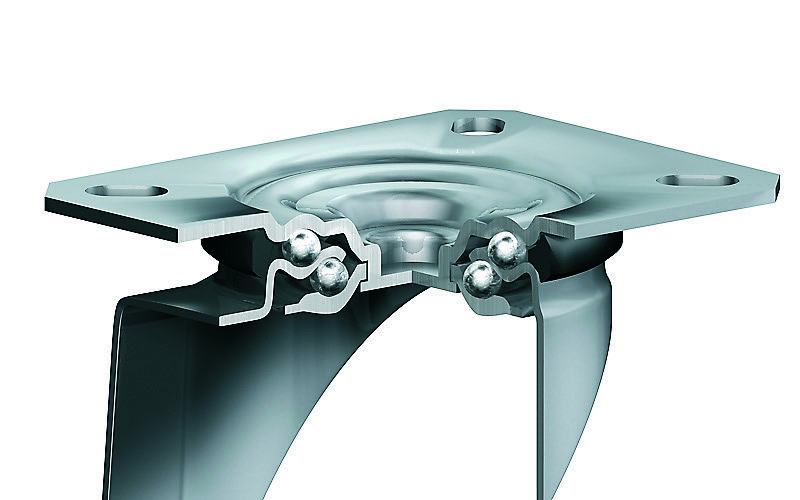

Finish: Polished stainless steel housing AISI 304, stainless steel balls AISI 420, double ball bearing, revited, dust protection ring up to max. 270° C, high melting point grease, wheel axle bolted

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

10 of 10 items in this series are displayed.

Article number Articel type Price € QTY
XDH 100 HBX

Heat Series XDH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 100x30

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 88
  • Radlagerung Roller bearing
XF 100 HBX

Heat Series XDH, Wheel HB

Fixed castor Wheel-∅ x width [mm]: 100x30

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XSH 125 HBX

Heat Series XDH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XFS 125 HBX

Heat Series XDH, Wheel HB

Fixed castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XSSH 125 HBX

Heat Series XDH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XFSS 125 HBX

Heat Series XDH, Wheel HB

Fixed castor Wheel-∅ x width [mm]: 125x38

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
XSH 160 HBX

Heat Series XDH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 160x40

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 203
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 138
  • Radlagerung Roller bearing
XFS 160 HBX

Heat Series XDH, Wheel HB

Fixed castor Wheel-∅ x width [mm]: 160x40

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 203
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing

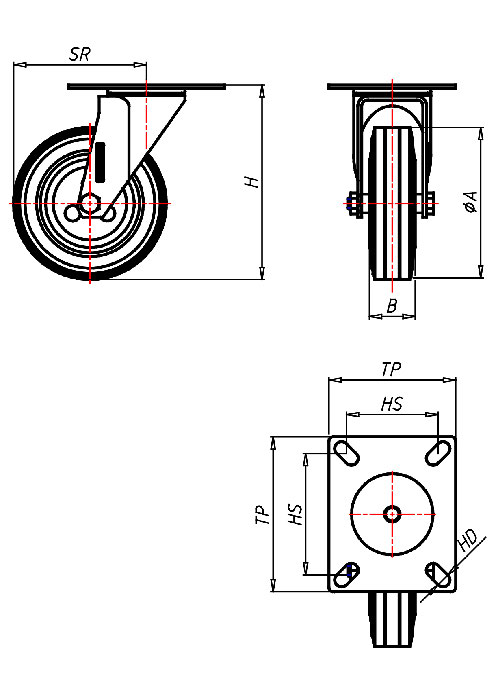

XDH 200 HBX

Heat Series XDH, Wheel HB

Swivel castor Wheel-∅ x width [mm]: 200x50

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing
XF 200 HBX

Heat Series XDH, Wheel HB

Fixed castor Wheel-∅ x width [mm]: 200x50

Heat Series XDH, Wheel HB

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
