Heavy Duty Series PD, Wheel ELPG

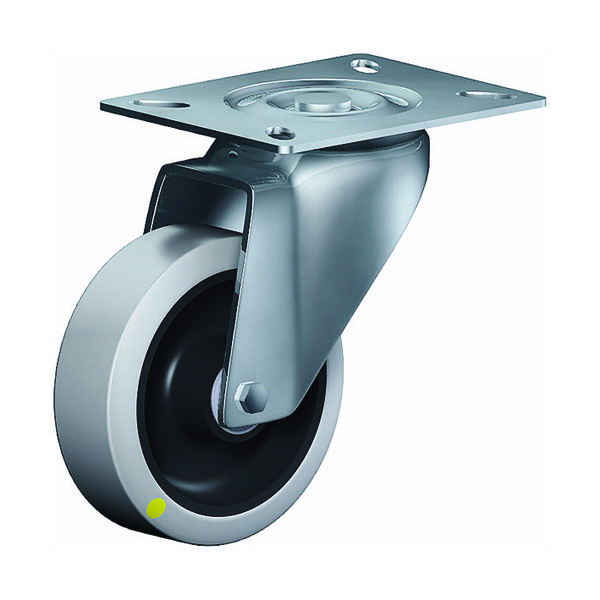

  • Swivel Castor Heavy Duty Series PD, Wheel ELPG

    SWIVEL CASTOR

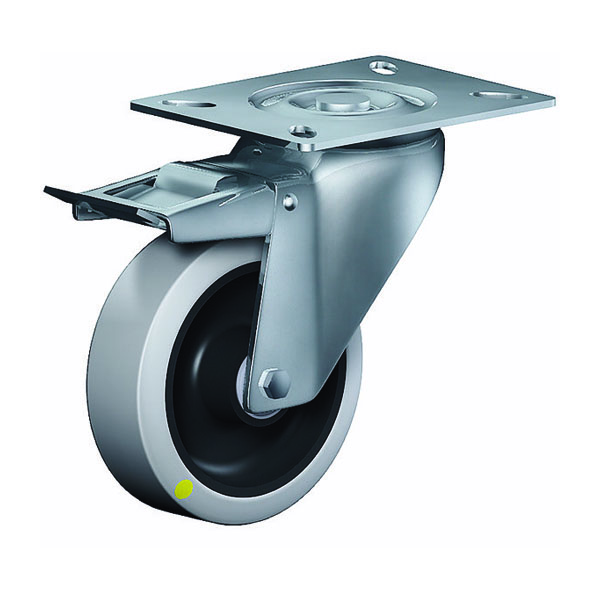

  • Swivel Castor With Total Lock Heavy Duty Series PD, Wheel ELPG

    SWIVEL CASTOR WITH TOTAL LOCK

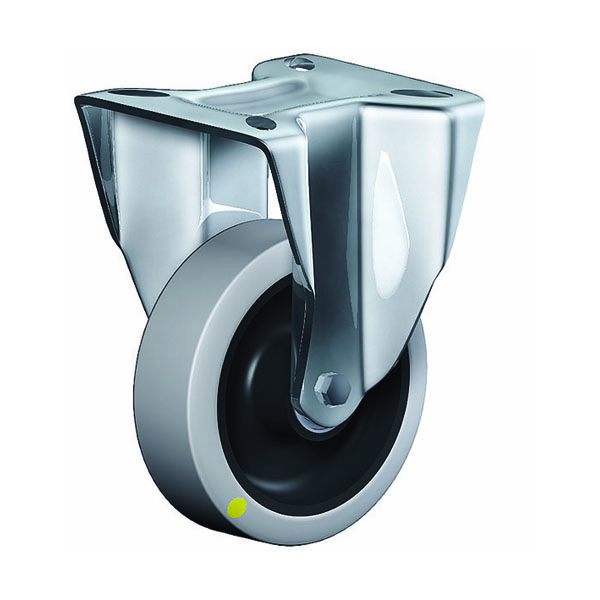

  • Fixed Castor Heavy Duty Series PD, Wheel ELPG

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Heavy Duty Series PD, Wheel ELPGelectrically conductive

PDF product sheet
  • max 500 kg
  • -10 °C - +60 °C
  • 125-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Heavy Duty Series PD, Wheel ELPG

    Swivel Castor

  • Swivel Castor With Total Lock Heavy Duty Series PD, Wheel ELPG

    Swivel Castor With Total Lock

  • Fixed Castor Heavy Duty Series PD, Wheel ELPG

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • electrically conductive
  • excellent running performance
  • low rolling resistance
  • good abrasion resistance
  • korrosionsbeständig
  • non-marking

Applications

  • Heavy duty dollies
  • Machinery moving dollies
  • Scaffolds
  • Racks

Material

Material

Elastic solid rubber tyre 70 ± 5 Shore A electrically conductive
volume resistance value <104Ω
High quality nylon wheel centre electrically conductive
volume resistance value <104Ω

Fork material

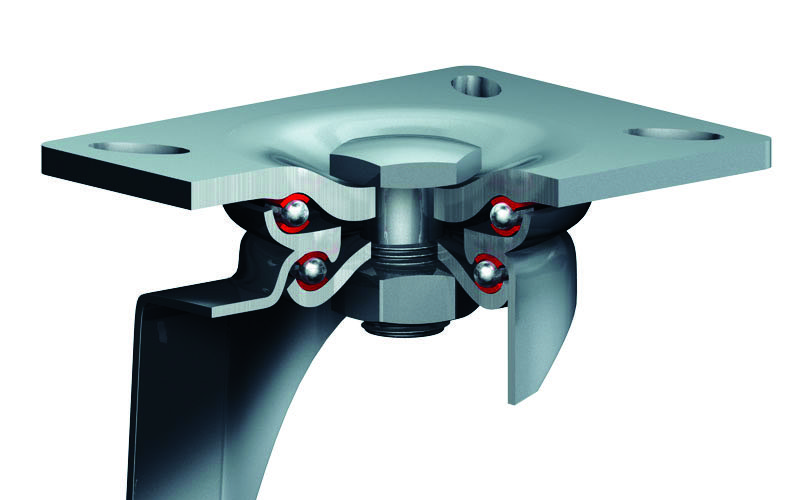

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

9 of 9 items in this series are displayed.

Article number Articel type Price € QTY

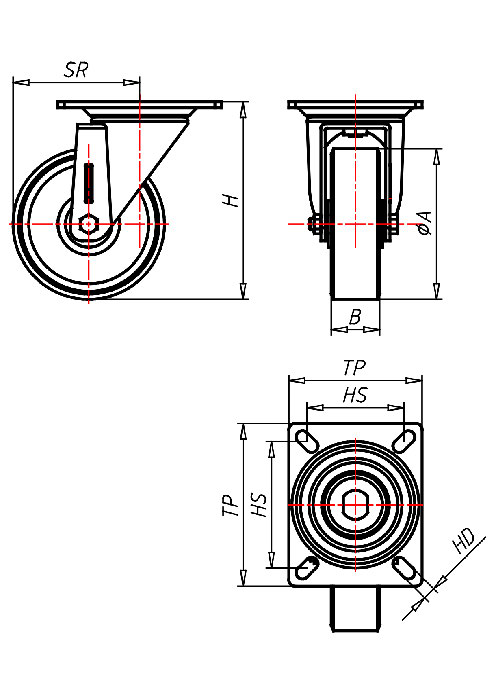

PD 125 ELPGB

Heavy Duty Series PD, Wheel ELPG

Swivel castor Wheel-∅ x width [mm]: 125x40

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 225
  • Bauhöhe H mm 164
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 106
  • Radlagerung Roller bearing

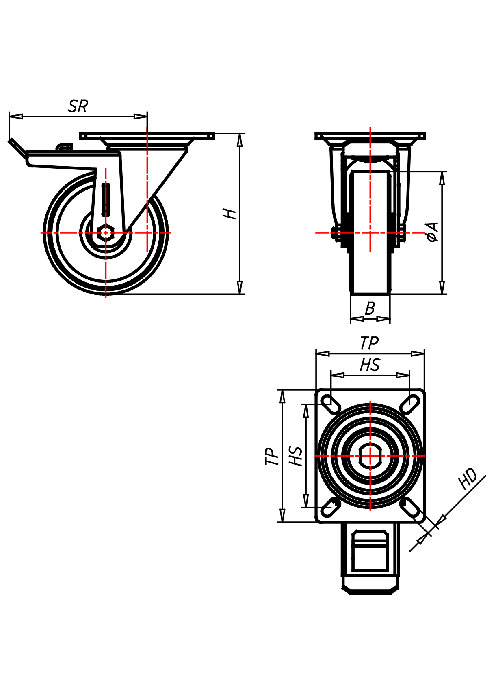

PDT 125 ELPGB

Heavy Duty Series PD, Wheel ELPG

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 225
  • Bauhöhe H mm 164
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing

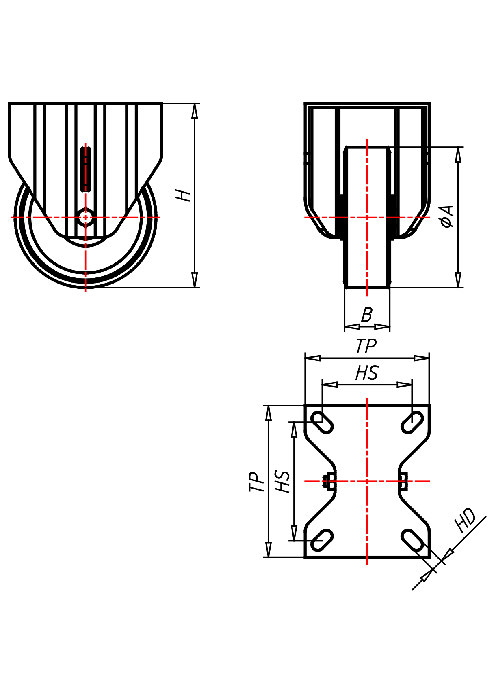

PDF 125 ELPGB

Heavy Duty Series PD, Wheel ELPG

Fixed castor Wheel-∅ x width [mm]: 125x40

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 225
  • Bauhöhe H mm 164
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Roller bearing
PS 160 ELPGK

Heavy Duty Series PD, Wheel ELPG

Swivel castor Wheel-∅ x width [mm]: 160x45

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 200
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
PST 160 ELPGK

Heavy Duty Series PD, Wheel ELPG

Swivel castor with total lock Wheel-∅ x width [mm]: 160x45

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 200
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 140
  • Radlagerung Ball bearing
PSF 160 ELPGK

Heavy Duty Series PD, Wheel ELPG

Fixed castor Wheel-∅ x width [mm]: 160x45

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 200
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Ball bearing
PD 200 ELPGK

Heavy Duty Series PD, Wheel ELPG

Swivel castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 167
  • Radlagerung Ball bearing
PDT 200 ELPGK

Heavy Duty Series PD, Wheel ELPG

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 170
  • Radlagerung Ball bearing
PDF 200 ELPGK

Heavy Duty Series PD, Wheel ELPG

Fixed castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series PD, Wheel ELPG

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 250
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
