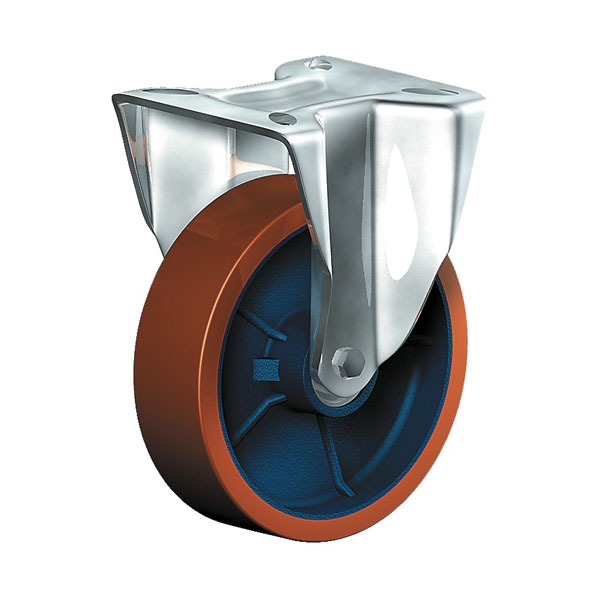

Tread: Cast polyurethane, 95±3 Shore A Wheel centre, Cast-iron - painted
Fork material

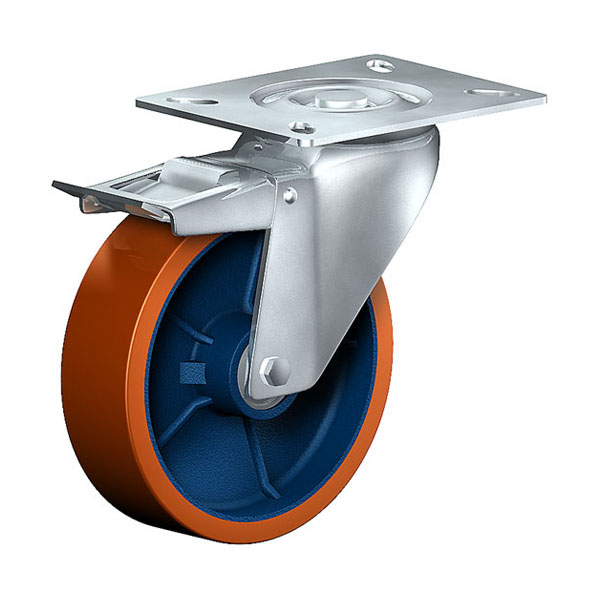

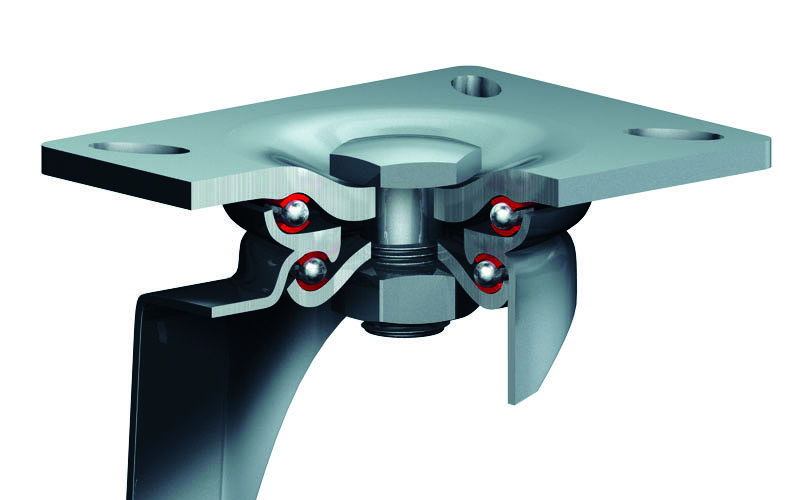

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Documents/CAD
Cadenas Partcommunity-Portal
For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
Wheel Tread: cast polyurethane, 95 ± 2 Shore A crowned
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD,
Rad TLEL
max 800 kg
150-500 mm
Wheel Coated in cast polyurethane, 95±3 Shore A Electrically conductive
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD,
Rad A
max 700 kg
150-500 mm
Wheel Coated in cast polyurethane, 95±3 Shore A
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD,
Rad E
max 450 kg
150-500 mm
Wheel Tread: Elastic solid rubber tyre, black, 73±5 Shore A, vulcanised on wheel centre
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
Heavy Duty
Serie PD,
Rad ELPG
max 500 kg
150-500 mm
Wheel Elastic solid rubber tyre 70 ± 5 Shore A electrically conductive volume resistance value <104Ω
Fork Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available
