Heavy Duty Series PD, Wheel TL

 PDF product sheet

max 800 kg
-30 °C - +80 °C
80-250 mm

++

swivels easily
+++

wear resistant
+++

shock proof
+++

floor protective
++

weather proof

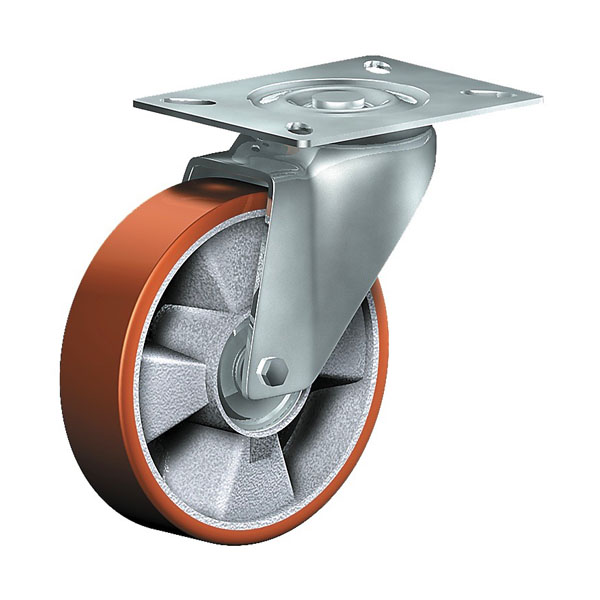

Swivel Castor

Show dimensions

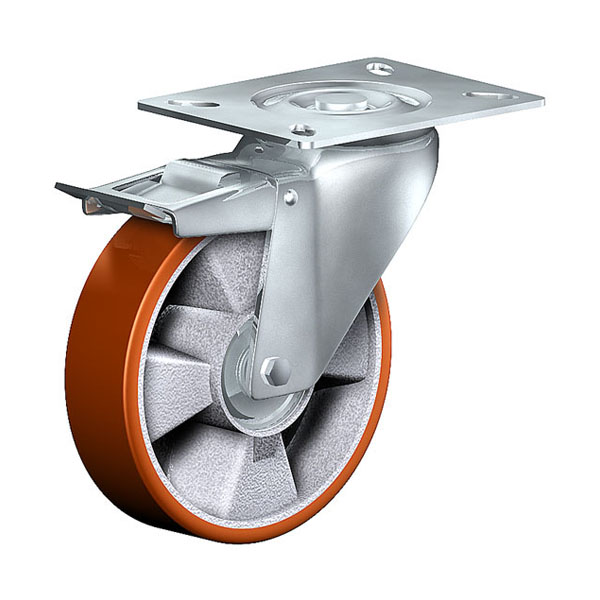

Swivel Castor With Total Lock

Show dimensions

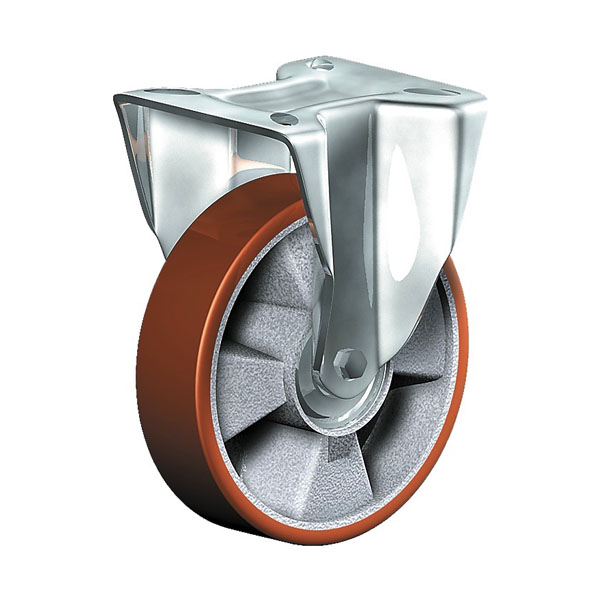

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Tiles
Asphalt
Parquet flooring
Obstacles

Advantages

silent in motion
low rolling resistance
high abrasion and tear resistance
high resistance to shocks
good chemical resistance

Applications

Metal-Technology
Heavy duty dollies
Machinery moving dollies
Workshops
Scaffolds
Racks
Carpentry
Building-Industry

Material

Tread: cast polyurethane, 95±3 Shore A
Core: De-cast aluminium alloy

Fork material

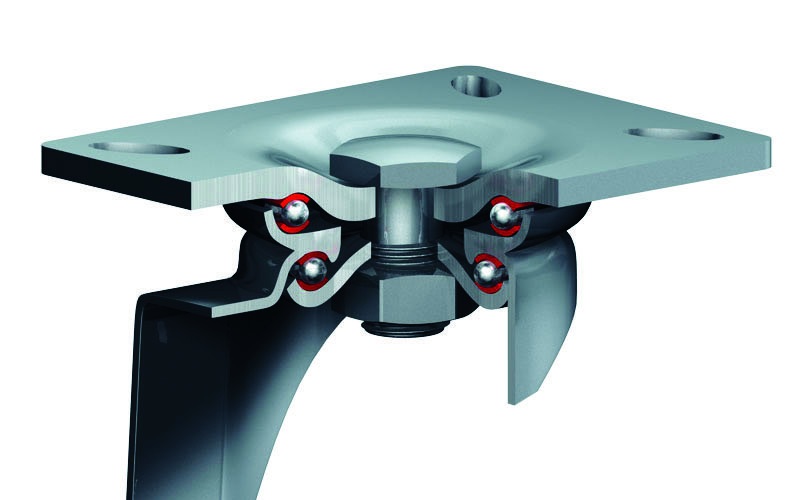

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

57 of 57 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm

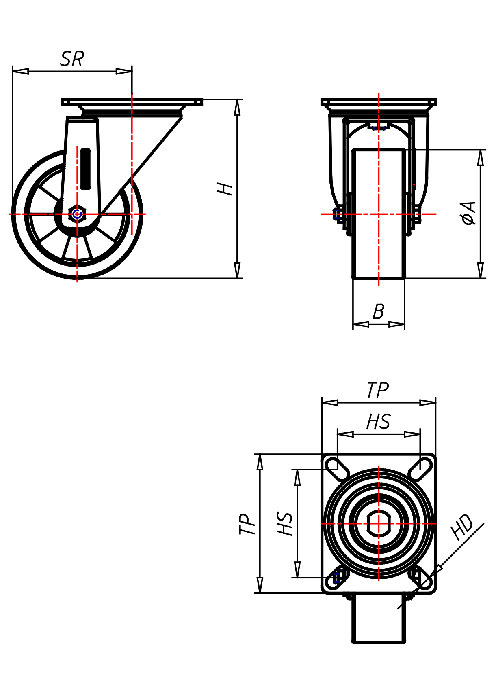

PD 82 TLK	Swivel castor	80x40	250	128	105x85	80x60	8,5	84
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 80x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 84 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)

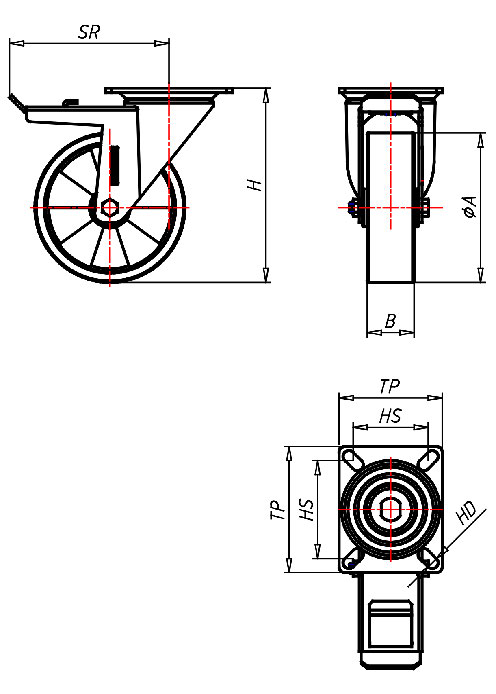

PDT 82 TLK	Swivel castor with total lock	80x40	250	128	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 80x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Ball bearing

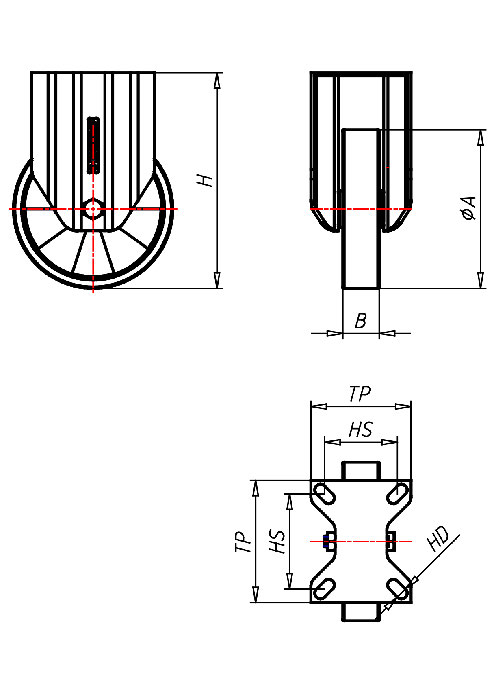

PDF 82 TLK	Fixed castor	80x40	250	128	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 80x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 82 TLB	Swivel castor	80x40	250	128	105x85	80x60	8,5	84
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 80x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 84 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 82 TLB	Swivel castor with total lock	80x40	250	128	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 80x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Roller bearing
PDF 82 TLB	Fixed castor	80x40	250	128	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 80x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 128 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 100 TLK	Swivel castor	100x30	200	138	105x85	80x60	8,5	93
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 TLK	Swivel castor with total lock	100x30	200	138	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 TLK	Fixed castor	100x30	200	138	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 100 TLB	Swivel castor	100x30	200	138	105x85	80x60	8,5	93
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 TLB	Swivel castor with total lock	100x30	200	138	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 TLB	Fixed castor	100x30	200	138	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 200 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 101 TLK	Swivel castor	100x40	280	138	105x85	80x60	8,5	94
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 280 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 94 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 101 TLK	Swivel castor with total lock	100x40	280	138	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 280 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 101 TLK	Fixed castor	100x40	280	138	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 280 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 101 TLB	Swivel castor	100x40	280	138	105x85	80x60	8,5	94
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 280 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 94 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 101 TLB	Swivel castor with total lock	100x40	280	138	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 280 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 101 TLB	Fixed castor	100x40	280	138	105x85	80x60	8,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 280 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 TLK	Swivel castor	125x30	250	164	135x110	105x80	10,5	106
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 TLK	Swivel castor with total lock	125x30	250	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 TLK	Fixed castor	125x30	250	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 TLB	Swivel castor	125x30	250	164	135x110	105x80	10,5	106
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 TLB	Swivel castor with total lock	125x30	250	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 TLB	Fixed castor	125x30	250	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PS 126 TLK	Swivel castor	125x50	350	174	135x110	105x80	12,5	118
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 174 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 118 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PST 126 TLK	Swivel castor with total lock	125x50	350	174	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 174 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PSF 126 TLK	Fixed castor	125x50	350	174	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 174 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PS 126 TLB	Swivel castor	125x50	350	174	135x110	105x80	12,5	118
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 174 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 118 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PST 126 TLB	Swivel castor with total lock	125x50	350	174	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 174 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PSF 126 TLB	Fixed castor	125x50	350	174	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 174 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 150 TLK	Swivel castor	150x40	400	195	135x110	105x80	12,5	127
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 127 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 150 TLK	Swivel castor with total lock	150x40	400	195	135x110	105x80	12,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 150 TLK	Fixed castor	150x40	400	195	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 150 TLB	Swivel castor	150x40	400	195	135x110	105x80	12,5	127
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 127 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 150 TLB	Swivel castor with total lock	150x40	400	195	135x110	105x80	12,5	140
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 150 TLB	Fixed castor	150x40	400	195	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 400 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PS 160 TLK	Swivel castor	160x50	600	208	135x110	105x80	12,5	145
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 145 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PST 160 TLK	Swivel castor with total lock	160x50	600	208	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PSF 160 TLK	Fixed castor	160x50	600	208	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PS 160 TLB	Swivel castor	160x50	600	208	135x110	105x80	12,5	145
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 145 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PST 160 TLB	Swivel castor with total lock	160x50	600	208	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PSF 160 TLB	Fixed castor	160x50	600	208	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 600 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 175 TLK	Swivel castor	175x40	550	238	135x110	105x80	12,5	154
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 550 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 154 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 175 TLK	Swivel castor with total lock	175x40	550	238	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 550 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 175 TLK	Fixed castor	175x40	550	238	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 550 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 175 TLB	Swivel castor	175x40	550	238	135x110	105x80	12,5	154
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 550 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 154 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 175 TLB	Swivel castor with total lock	175x40	550	238	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 550 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 175 TLB	Fixed castor	175x40	550	238	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 550 Bauhöhe H mm 238 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 TLK	Swivel castor	200x50	800	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 TLK	Swivel castor with total lock	200x50	800	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 TLK	Fixed castor	200x50	800	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 TLB	Swivel castor	200x50	800	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 TLB	Swivel castor with total lock	200x50	800	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 TLB	Fixed castor	200x50	800	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 800 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 250 TLK	Swivel castor	250x60	800	305	135x110	105x80	12,5	198
Heavy Duty Series PD, Wheel TL Swivel castor Wheel-∅ x width [mm]: 250x60 Technische Daten Tragkraft kg 800 Bauhöhe H mm 305 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 198 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 250 TLK	Swivel castor with total lock	250x60	800	305	135x110	105x80	12,5	198
Heavy Duty Series PD, Wheel TL Swivel castor with total lock Wheel-∅ x width [mm]: 250x60 Technische Daten Tragkraft kg 800 Bauhöhe H mm 305 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 198 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 250 TLK	Fixed castor	250x60	800	305	135x110	105x80	12,5
Heavy Duty Series PD, Wheel TL Fixed castor Wheel-∅ x width [mm]: 250x60 Technische Daten Tragkraft kg 800 Bauhöhe H mm 305 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Counter plate 105x85x3,5 mm
Art.No. GEGENPLATTE 1

blank
Stahl blank
105x85x3,5
80x60

Qty € /Pc., exkl. Shipping
Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € /Pc., exkl. Shipping
Counter plate 135x110x8 mm
Art.No. GEGENPLATTE 3

blank
Stahl blank
135x110x8
105x80

Qty € /Pc., exkl. Shipping
Directional lock DL3
Art.No. DL 3

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € /Pc., exkl. Shipping
Fixing Bolt M8x20 mm
Art.No. M 8X20

verzinkt
Stahl 8.8 verzinkt
M8x20

Qty € /Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € /Pc., exkl. Shipping
Fixing Bolt M12x25mm
Art.No. M 12X25

verzinkt
Stahl 8.8 verzinkt
M12x25

Qty € /Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € /Pc., exkl. Shipping
