Heavy Duty Series PD, Wheel AL

 PDF product sheet

max 550 kg
-30 °C - +80 °C
100-200 mm

++

swivels easily
+++

wear resistant
+++

shock proof
++

floor protective
++

weather proof

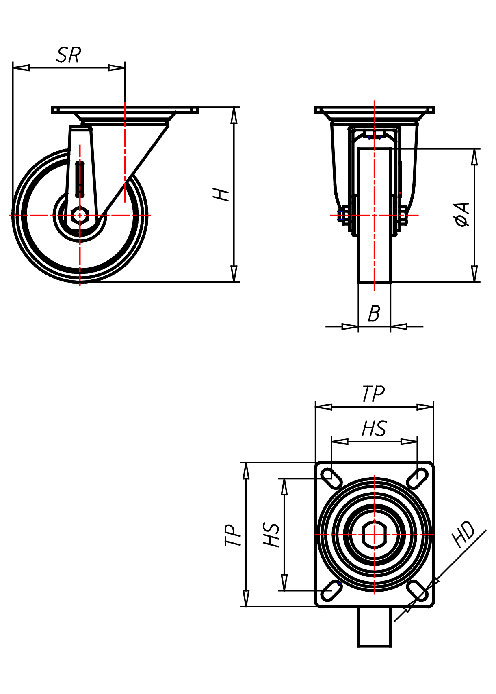

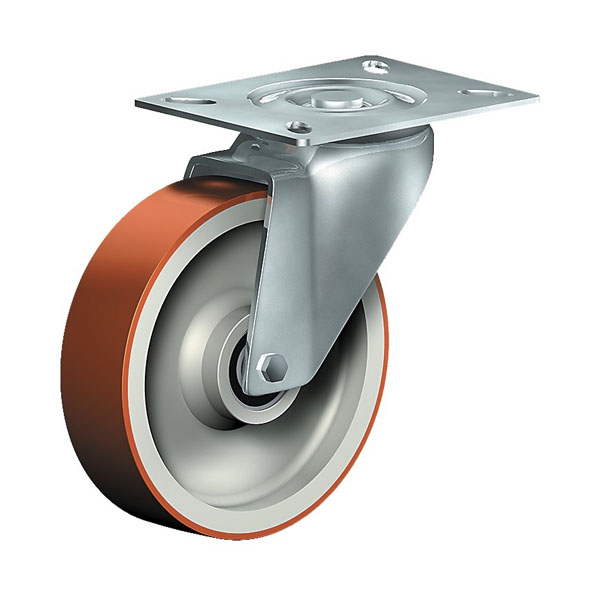

Swivel Castor

Show dimensions

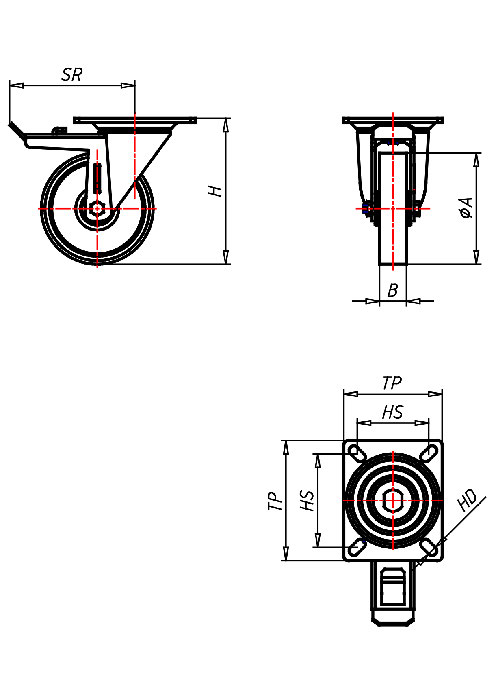

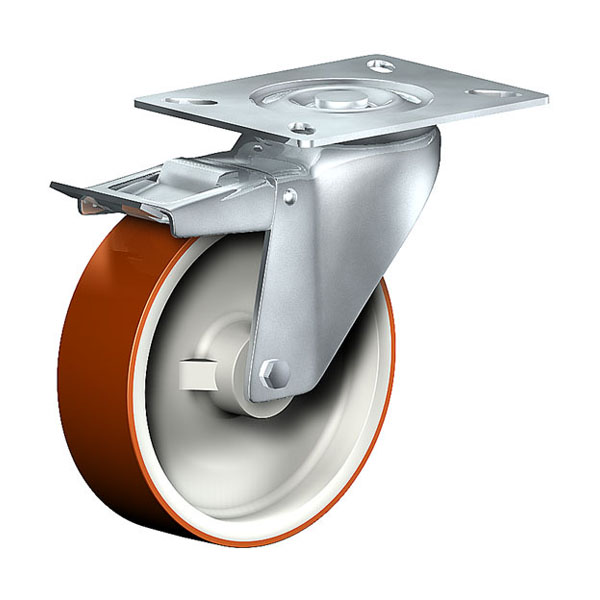

Swivel Castor With Total Lock

Show dimensions

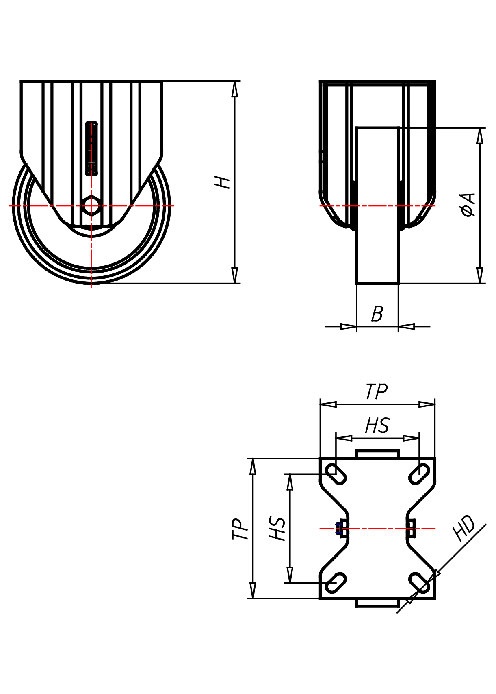

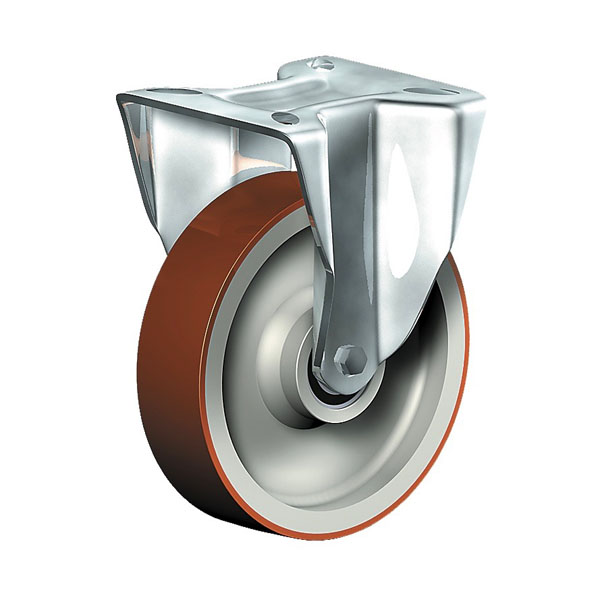

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Carpet
Asphalt

Advantages

low rolling resistance
high abrasion and tear resistance
easy to clean
good chemical resistance

Applications

Metal-Technology
Heavy duty dollies
Machinery moving dollies
Workshops
Scaffolds
Racks
Carpentry
Building-Industry

Material

Coated in injected polyurethane, 58±3 Shore D
High quality nylon wheel centre

Fork material

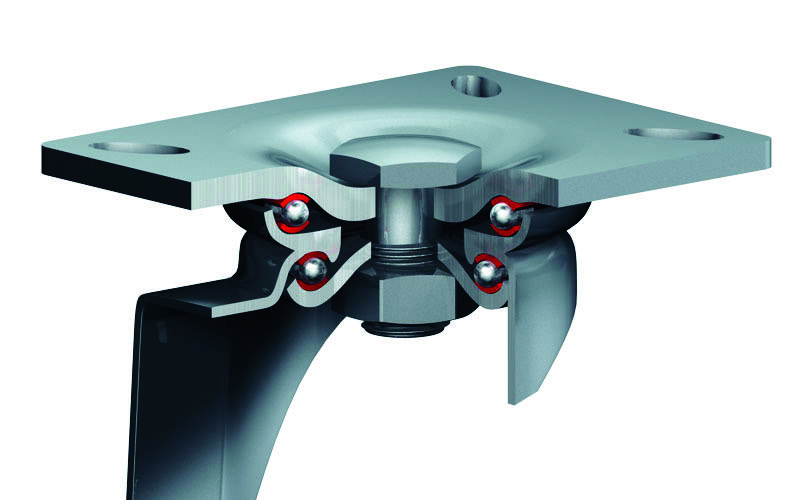

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

27 of 27 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm
PD 100 ALB	Swivel castor	100x30	160	138	105x85	80x60	8,5	93
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 160 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 ALB	Swivel castor with total lock	100x30	160	138	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 160 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 ALB	Fixed castor	100x30	160	138	105x85	80x60	8,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 160 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 100 AL	Swivel castor	100x30	160	138	105x85	80x60	8,5	93
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 160 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 93 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 AL	Swivel castor with total lock	100x30	160	138	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 160 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 AL	Fixed castor	100x30	160	138	105x85	80x60	8,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 160 Bauhöhe H mm 138 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 ALB	Swivel castor	125x30	230	164	135x110	105x80	10,5	106
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 230 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 ALB	Swivel castor with total lock	125x30	230	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 230 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 ALB	Fixed castor	125x30	230	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 230 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 AL	Swivel castor	125x30	230	164	135x110	105x80	10,5	106
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 230 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 AL	Swivel castor with total lock	125x30	230	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 230 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 AL	Fixed castor	125x30	230	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 230 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 150 ALB	Swivel castor	150x40	300	195	135x110	105x80	10,5	127
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 300 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 127 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 150 ALB	Swivel castor with total lock	150x40	300	195	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 300 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 150 ALB	Fixed castor	150x40	300	195	135x110	105x80	10,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 300 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 150 AL	Swivel castor	150x40	300	195	135x110	105x80	10,5	127
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 300 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 127 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 150 AL	Swivel castor with total lock	150x40	300	195	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 300 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 150 AL	Fixed castor	150x40	300	195	135x110	105x80	10,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 300 Bauhöhe H mm 195 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 ALK	Swivel castor	200x50	550	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 ALK	Swivel castor with total lock	200x50	550	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 ALK	Fixed castor	200x50	550	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 ALB	Swivel castor	200x50	550	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 ALB	Swivel castor with total lock	200x50	550	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 ALB	Fixed castor	200x50	550	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 AL	Swivel castor	200x50	550	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel AL Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 AL	Swivel castor with total lock	200x50	550	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel AL Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 AL	Fixed castor	200x50	550	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel AL Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 550 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Counter plate 105x85x3,5 mm
Art.No. GEGENPLATTE 1

blank
Stahl blank
105x85x3,5
80x60

Qty € /Pc., exkl. Shipping
Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € /Pc., exkl. Shipping
Counter plate 135x110x8 mm
Art.No. GEGENPLATTE 3

blank
Stahl blank
135x110x8
105x80

Qty € /Pc., exkl. Shipping
Directional lock DL3
Art.No. DL 3

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € /Pc., exkl. Shipping
Fixing Bolt M8x20 mm
Art.No. M 8X20

verzinkt
Stahl 8.8 verzinkt
M8x20

Qty € /Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € /Pc., exkl. Shipping
Fixing Bolt M12x25mm
Art.No. M 12X25

verzinkt
Stahl 8.8 verzinkt
M12x25

Qty € /Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € /Pc., exkl. Shipping
