Institutional Series 315R, Wheel TP

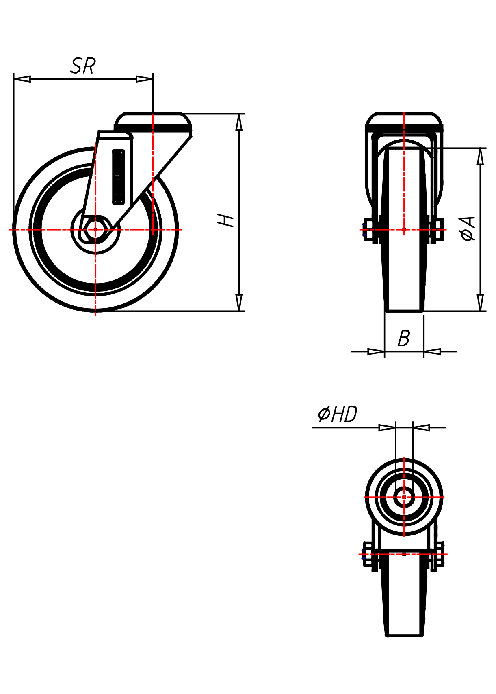

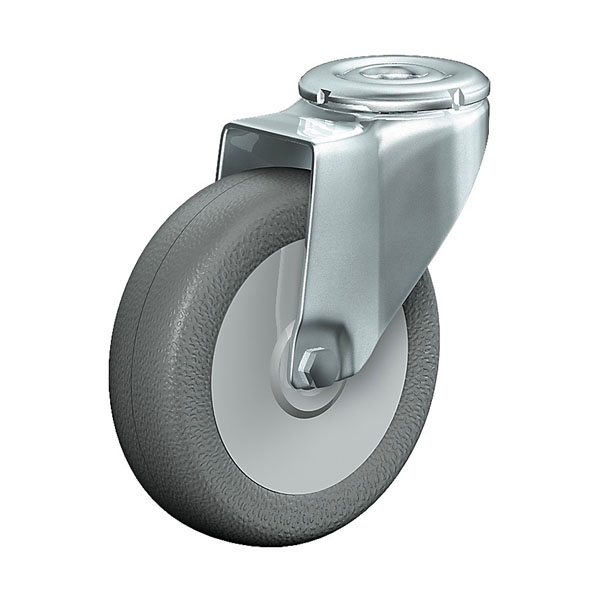

  • Swivel Castor Institutional Series 315R, Wheel TP

    SWIVEL CASTOR

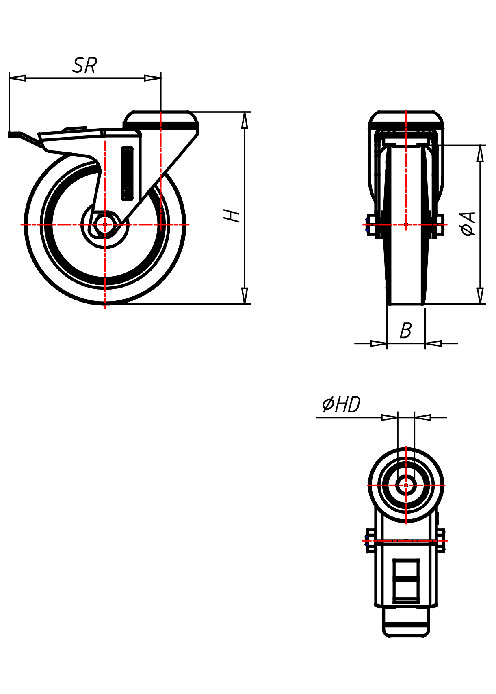

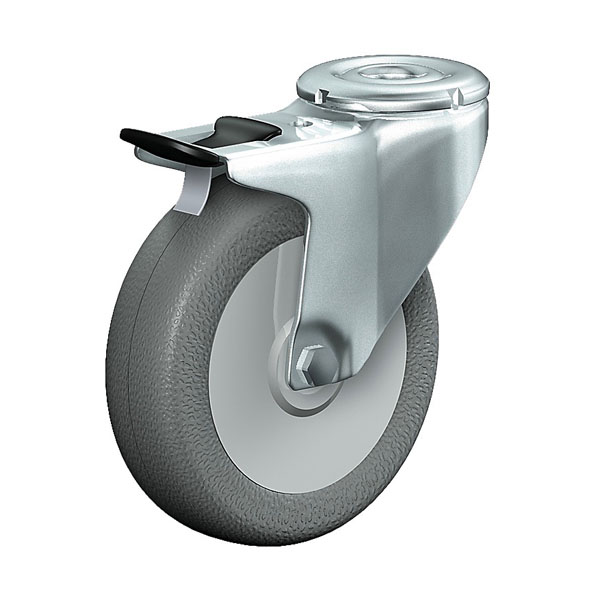

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel TP

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 315R, Wheel TP

PDF product sheet
  • max 60 kg
  • -20 °C - +60 °C
  • 50-75 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 315R, Wheel TP

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel TP

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • high resistance to shocks
  • non-marking
  • easy to clean
  • good chemical resistance

Applications

  • Metal-Technology
  • Portable bar units
  • House keeping carts
  • Workshops
  • Laboratory equipment
  • Sidetables
  • Book carts
  • Instrument stands
  • Carpentry
  • Bedside carts
  • Hanging racks
  • Health-Professionals
  • School furniture

Material

Material

Tread: Thermoplastic elastomer coating 95±3 Shore A**
High quality nylon wheel centre

Fork material

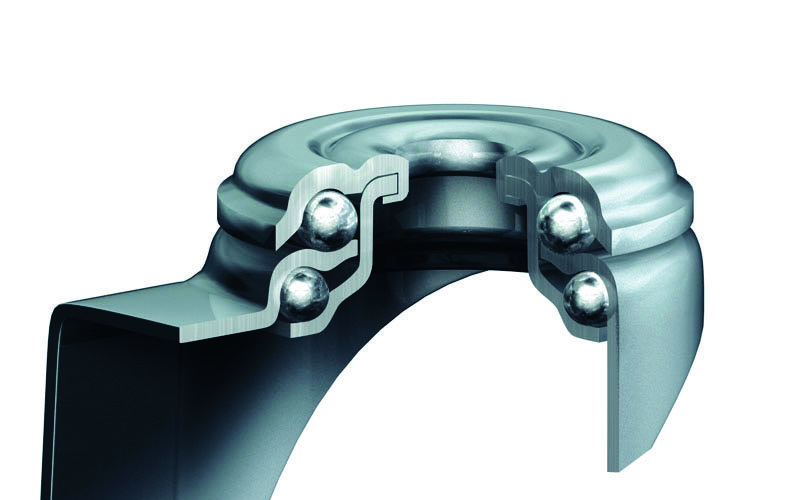

Finish: zinc plated and chromate coated, large double ball bearing – Ø 46 mm, revited,
dust protection ring, wheel axle bolted and locked, wheel-/ total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

16 of 16 items in this series are displayed.

Article number Articel type Price € QTY
315 RÜ10 50 TPK

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 51
  • Radlagerung Ball bearing
316 RÜ10 50 TPK

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 73
  • Radlagerung Ball bearing
315 RÜ12 50 TPK

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 51
  • Radlagerung Ball bearing
316 RÜ12 50 TPK

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 73
  • Radlagerung Ball bearing
315 RÜ10 50 V

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ10 50 V

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ12 50 V

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ12 50 V

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ10 75 DEK

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ10 75 DEK

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ12 75 DEK

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ12 75 DEK

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ10 75 TPK

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ10 75 TPK

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ12 75 TPK

Institutional Series 315R, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ12 75 TPK

Institutional Series 315R, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel TP

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
