Institutional Series 315R, Wheel G

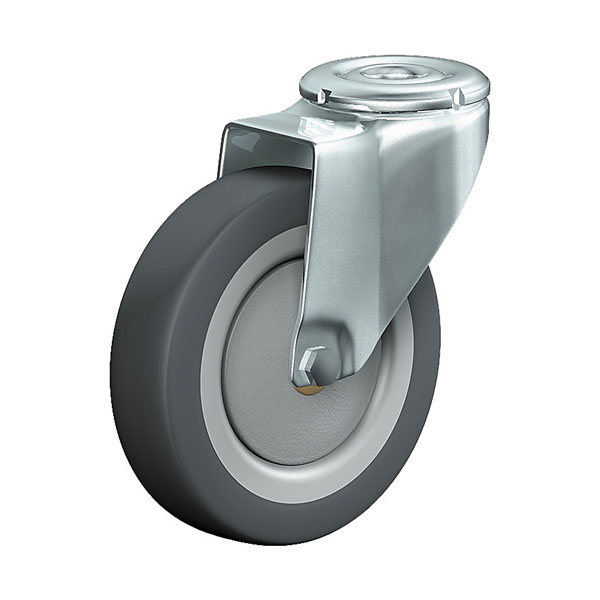

  • Swivel Castor Institutional Series 315R, Wheel G

    SWIVEL CASTOR

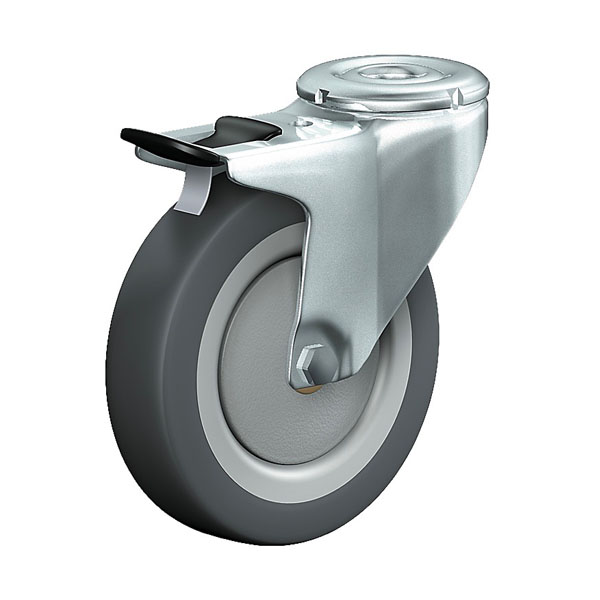

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel G

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 315R, Wheel G

PDF product sheet
  • max 70 kg
  • -20 °C - +60 °C
  • 50-100 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • +
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 315R, Wheel G

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 315R, Wheel G

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • non-marking - floor protective
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Metal-Technology
  • Portable bar units
  • House keeping carts
  • Workshops
  • Laboratory equipment
  • Sidetables
  • Book carts
  • Instrument stands
  • Carpentry
  • Bedside carts
  • Hanging racks
  • Health-Professionals
  • School furniture

Material

Material

Standard rubber tyre grey
Nylon rim

Fork material

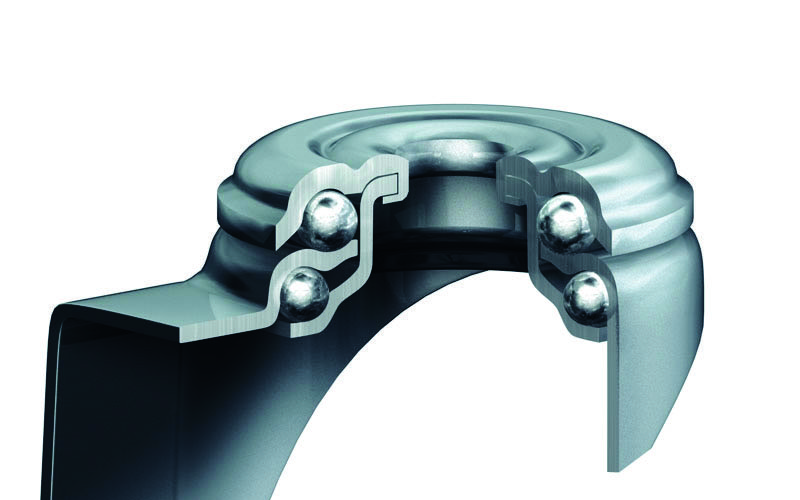

Finish: zinc plated and chromate coated, large double ball bearing – Ø 46 mm, revited,
dust protection ring, wheel axle bolted and locked, wheel-/ total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

36 of 36 items in this series are displayed.

Article number Articel type Price € QTY
315 RÜ10 50 G

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ10 50 G

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ12 50 G

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ12 50 G

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ10 50 GL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ10 50 GL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ12 50 GL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 RÜ12 50 GL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
315 RÜ10 75 GK

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ10 75 GK

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ12 75 GK

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ12 75 GK

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ10 75 GKL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ10 75 GKL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ12 75 GKL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Ball bearing
316 RÜ12 75 GKL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Ball bearing
315 RÜ10 75 G

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Nylon plain bearing
316 RÜ10 75 G

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Nylon plain bearing
315 RÜ12 75 G

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Nylon plain bearing
316 RÜ12 75 G

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Nylon plain bearing
315 RÜ10 75 GL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 68
  • Radlagerung Nylon plain bearing
316 RÜ10 75 GL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 83
  • Radlagerung Nylon plain bearing
315 RÜ12 75 GL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 68
  • Radlagerung Nylon plain bearing
316 RÜ12 75 GL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x22

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 97
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 83
  • Radlagerung Nylon plain bearing
315 RÜ10 100 GK

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 85
  • Radlagerung Ball bearing
316 RÜ10 100 GK

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 96
  • Radlagerung Ball bearing
315 RÜ12 100 GK

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 85
  • Radlagerung Ball bearing
316 RÜ12 100 GK

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 96
  • Radlagerung Ball bearing
315 RÜ10 100 GKL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 85
  • Radlagerung Ball bearing
316 RÜ10 100 GKL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 96
  • Radlagerung Ball bearing
315 RÜ12 100 GKL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 85
  • Radlagerung Ball bearing
316 RÜ12 100 GKL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 96
  • Radlagerung Ball bearing
315 RÜ10 100 GL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 100x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 85
  • Radlagerung Nylon plain bearing
316 RÜ10 100 GL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 100x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 96
  • Radlagerung Nylon plain bearing
315 RÜ12 100 GL

Institutional Series 315R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 100x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 85
  • Radlagerung Nylon plain bearing
316 RÜ12 100 GL

Institutional Series 315R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 100x25

Institutional Series 315R, Wheel G

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 121
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 96
  • Radlagerung Nylon plain bearing

Suitable accessories
