Institutional Series 330Z, Wheel TP
  • Swivel Castor Institutional Series 330Z, Wheel TP

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 330Z, Wheel TP

    SWIVEL CASTOR WITH TOTAL LOCK

  • With Directional Lock Institutional Series 330Z, Wheel TP

    WITH DIRECTIONAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 330Z, Wheel TP

PDF product sheet
  • max 110 kg
  • -20 °C - +60 °C
  • 125-150 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 330Z, Wheel TP

    Swivel Castor

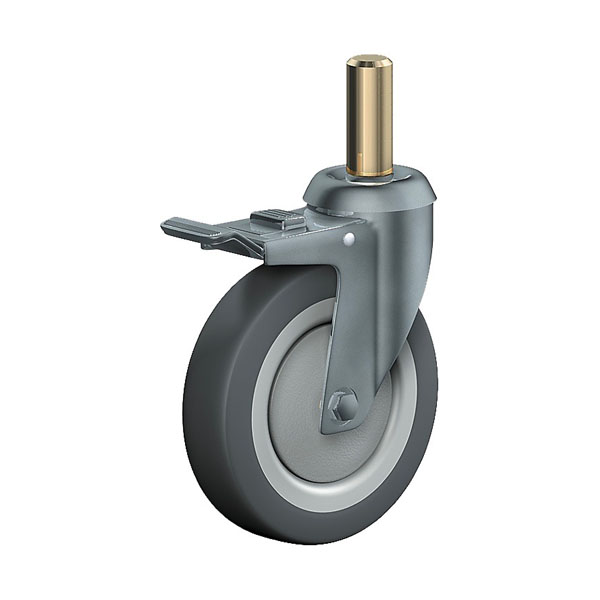

  • Swivel Castor With Total Lock Institutional Series 330Z, Wheel TP

    Swivel Castor With Total Lock

  • With Directional Lock Institutional Series 330Z, Wheel TP

    With Directional Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • high resistance to shocks
  • non-marking
  • easy to clean
  • good chemical resistance

Applications

  • Metal-Technology
  • Kitchen equipment
  • Food & dish carts
  • Food service carts
  • Workshops
  • Food service carts
  • Food & dish carts
  • Room service carts
  • Laboratory equipment
  • Instrument stands
  • Carpentry
  • Health-Professionals
  • School furniture

Material

Material

Tread: Thermoplastic elastomer coating 95±3 Shore A**
High quality nylon wheel centre

Fork material

Finish: zinc plated and chromate coated, large double ball bearing – Ø 57 mm, stem revited, wheel axle bolted and locked, total-/ directional lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

9 of 9 items in this series are displayed.

Article number Articel type Price € QTY
330 Z18 127 TPK

Institutional Series 330Z, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 104
  • Radlagerung Ball bearing
331 Z18 127 TPK

Institutional Series 330Z, Wheel TP

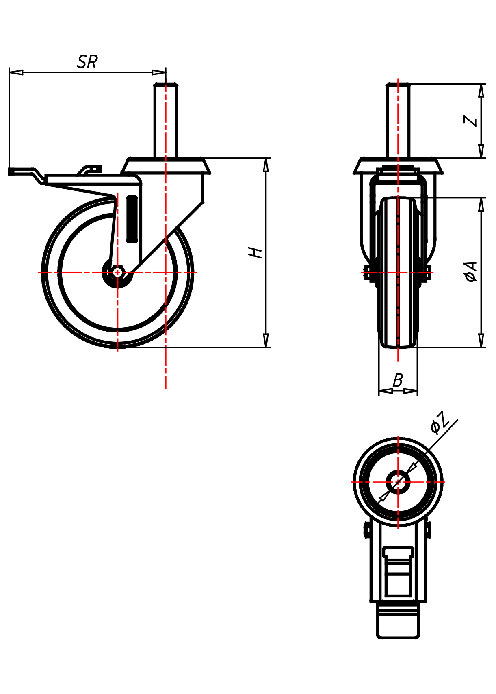

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
337 Z18 127 TPK

Institutional Series 330Z, Wheel TP

Swivel castor with directional lock Wheel-∅ x width [mm]: 125x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing
330 Z18 127 TP

Institutional Series 330Z, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 125x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 104
  • Radlagerung Nylon plain bearing
331 Z18 127 TP

Institutional Series 330Z, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
337 Z18 127 TP

Institutional Series 330Z, Wheel TP

Swivel castor with directional lock Wheel-∅ x width [mm]: 125x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 158
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 130
  • Radlagerung Nylon plain bearing
330 Z18 150 TPK

Institutional Series 330Z, Wheel TP

Swivel castor Wheel-∅ x width [mm]: 150x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
331 Z18 150 TPK

Institutional Series 330Z, Wheel TP

Swivel castor with total lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
337 Z18 150 TPK

Institutional Series 330Z, Wheel TP

Swivel castor with directional lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330Z, Wheel TP

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Zapfen mm 18x62
  • Querbohrung mm M8 auf 30
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing

Suitable accessories
