Institutional Series 330R, Wheel G

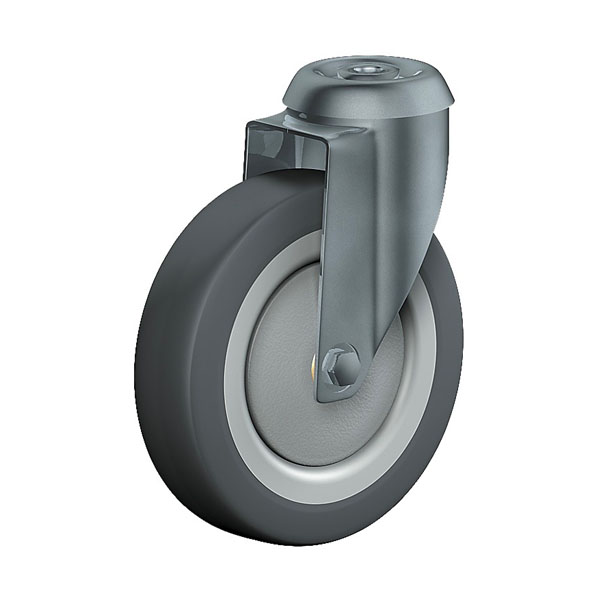

  • Swivel Castor Institutional Series 330R, Wheel G

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 330R, Wheel G

    SWIVEL CASTOR WITH TOTAL LOCK

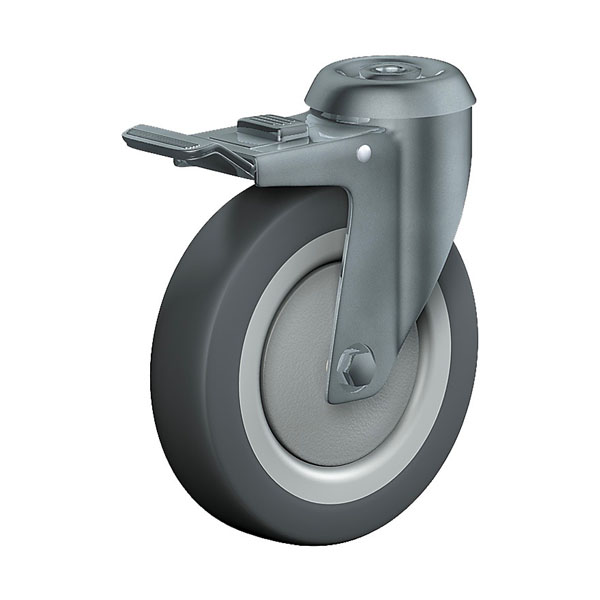

  • With Directional Lock Institutional Series 330R, Wheel G

    WITH DIRECTIONAL LOCK

Select the required versions in order to show them already filtered in the following table.

Institutional Series 330R, Wheel G

PDF product sheet
  • max 110 kg
  • -20 °C - +60 °C
  • 75-150 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 330R, Wheel G

    Swivel Castor

  • Swivel Castor With Total Lock Institutional Series 330R, Wheel G

    Swivel Castor With Total Lock

  • With Directional Lock Institutional Series 330R, Wheel G

    With Directional Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • non-marking - floor protective
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Metal-Technology
  • House keeping carts
  • Kitchen equipment
  • Mail carts
  • Food & dish carts
  • Workshops
  • Hospital beds
  • Food & dish carts
  • Room service carts
  • Trolleys
  • Laboratory equipment
  • Instrument stands
  • Spool trucks
  • Carpentry
  • Hanging racks
  • Display racks
  • School furniture

Material

Material

Standard rubber tyre grey
Nylon rim

Fork material

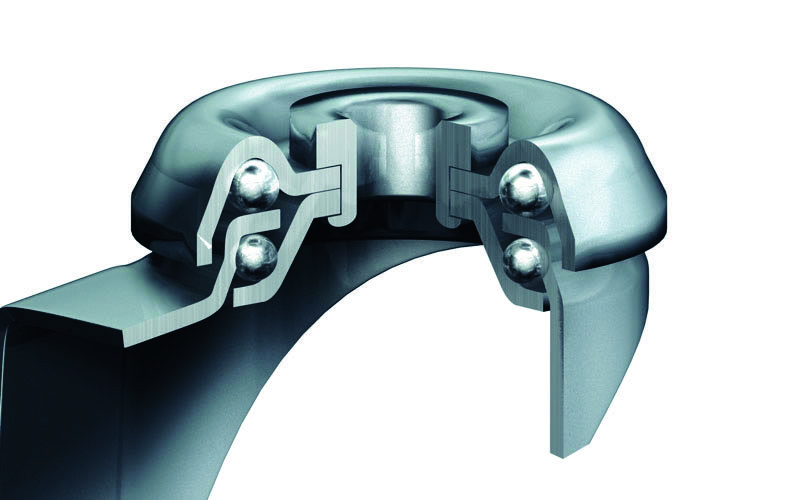

Finish: zinc plated and chromate coated, large double ball bearing – Ø 57 mm, revited, wheel axle bolted and locked, total-/ directional lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

10 of 10 items in this series are displayed.

Article number Articel type Price € QTY
330 RÜ10 76 GK

Institutional Series 330R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x30

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 66
  • Radlagerung Ball bearing
331 RÜ10 76 GK

Institutional Series 330R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x30

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 107
  • Radlagerung Ball bearing
330 RÜ12 76 GK

Institutional Series 330R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x30

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 66
  • Radlagerung Ball bearing
331 RÜ12 76 GK

Institutional Series 330R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x30

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 107
  • Radlagerung Ball bearing
330 RÜ10 150 GK

Institutional Series 330R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 150x32

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
331 RÜ10 150 GK

Institutional Series 330R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
337 RÜ10 150 GK

Institutional Series 330R, Wheel G

Swivel castor with directional lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
330 RÜ12 150 GK

Institutional Series 330R, Wheel G

Swivel castor Wheel-∅ x width [mm]: 150x32

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
331 RÜ12 150 GK

Institutional Series 330R, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing

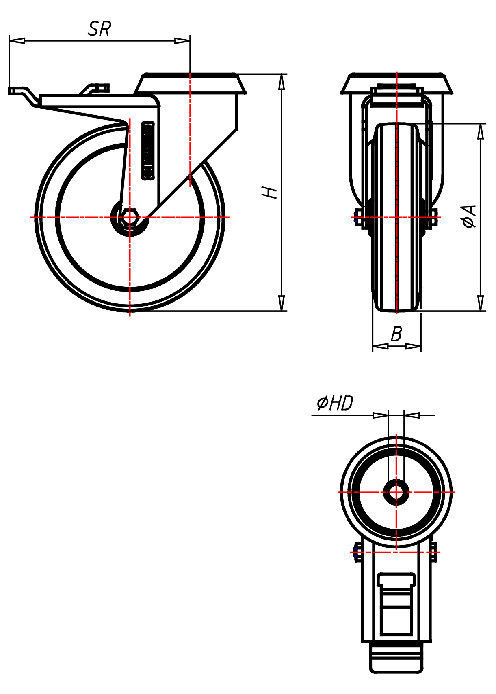

337 RÜ12 150 GK

Institutional Series 330R, Wheel G

Swivel castor with directional lock Wheel-∅ x width [mm]: 150x32

Institutional Series 330R, Wheel G

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 187
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 121
  • Radlagerung Ball bearing
