Stainless Steel Series QX, Wheel PE

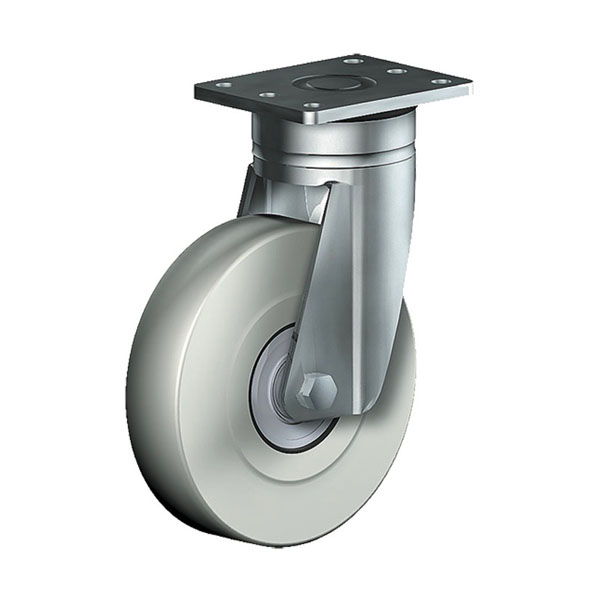

  • Swivel Castor Stainless Steel Series QX, Wheel PE

    SWIVEL CASTOR

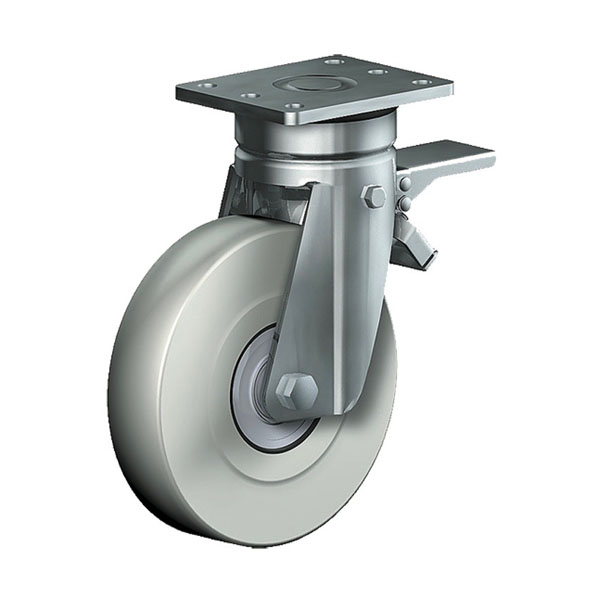

  • Swivel Castor With Total Lock Stainless Steel Series QX, Wheel PE

    SWIVEL CASTOR WITH TOTAL LOCK

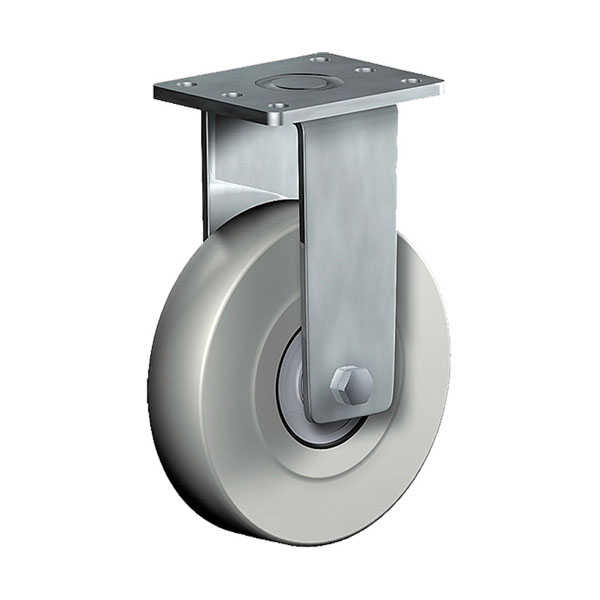

  • Fixed Castor Stainless Steel Series QX, Wheel PE

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series QX, Wheel PEEdelstahl

PDF product sheet
  • max 1300 kg
  • -30 °C - +80 °C
  • 125-200 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series QX, Wheel PE

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series QX, Wheel PE

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series QX, Wheel PE

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • for extra heavy loads
  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Wet environments

Material

Material

Casted high quality nylon wheel

Fork material

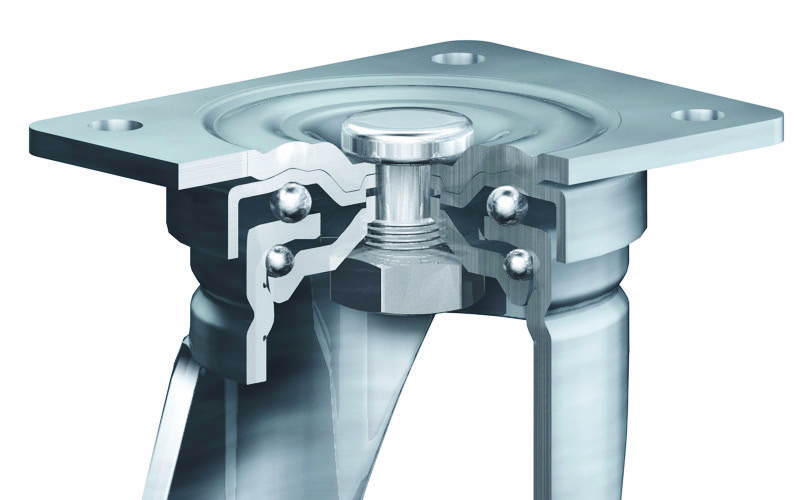

Finish: Polished stainless steel, swivel fork AISI 304, double ball bearing, very strong integrated Kingpin, wheel axle bolted, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

9 of 9 items in this series are displayed.

Article number Articel type Price € QTY
QX 125 PEK

Stainless Steel Series QX, Wheel PE

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 110
  • Radlagerung Ball bearing
QXT 125 PEK

Stainless Steel Series QX, Wheel PE

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 125
  • Radlagerung Ball bearing
QXF 125 PEK

Stainless Steel Series QX, Wheel PE

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 177
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing

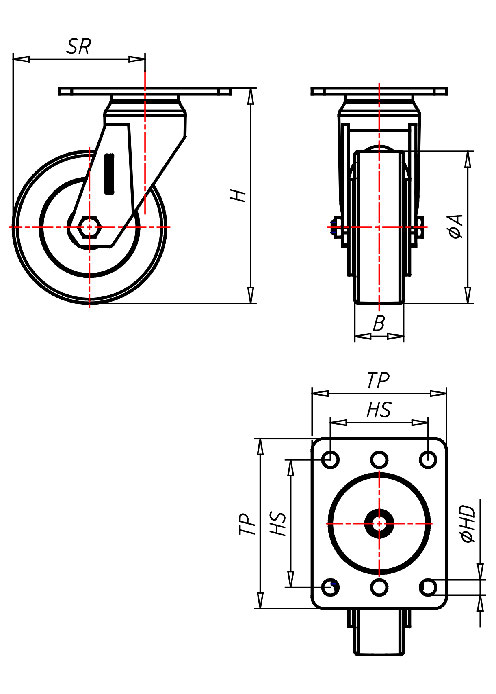

QX 151 PEK

Stainless Steel Series QX, Wheel PE

Swivel castor Wheel-∅ x width [mm]: 150x55

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing

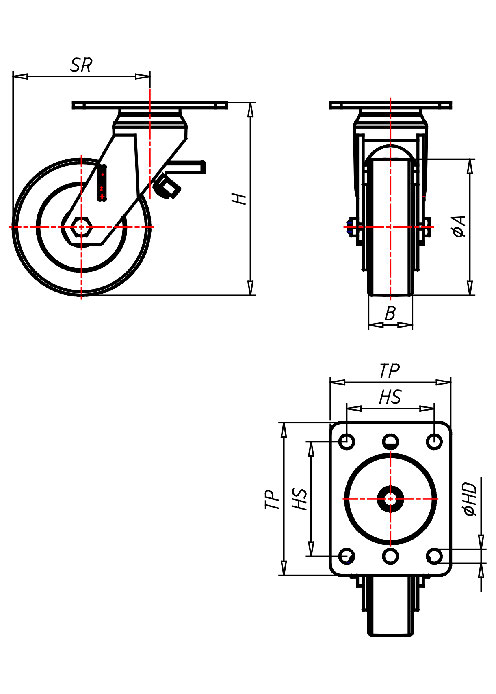

QXT 151 PEK

Stainless Steel Series QX, Wheel PE

Swivel castor with total lock Wheel-∅ x width [mm]: 150x55

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 130
  • Radlagerung Ball bearing

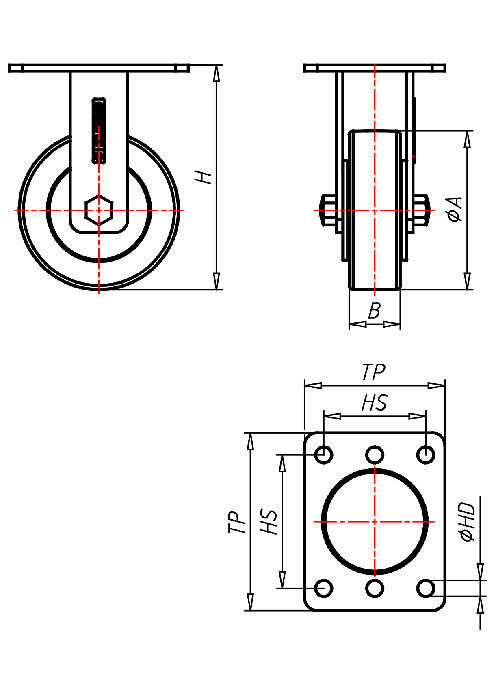

QXF 151 PEK

Stainless Steel Series QX, Wheel PE

Fixed castor Wheel-∅ x width [mm]: 150x55

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 211
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10,5
  • Radlagerung Ball bearing
QX 200 PEK

Stainless Steel Series QX, Wheel PE

Swivel castor Wheel-∅ x width [mm]: 200x55

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing
QXT 200 PEK

Stainless Steel Series QX, Wheel PE

Swivel castor with total lock Wheel-∅ x width [mm]: 200x55

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 160
  • Radlagerung Ball bearing
QXF 200 PEK

Stainless Steel Series QX, Wheel PE

Fixed castor Wheel-∅ x width [mm]: 200x55

Stainless Steel Series QX, Wheel PE

Technische Daten

  • Tragkraft kg 1300
  • Bauhöhe H mm 250
  • Plattengröße TP mm 140x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 12,5
  • Radlagerung Ball bearing
