Heavy Duty Series GT, Wheel ZK

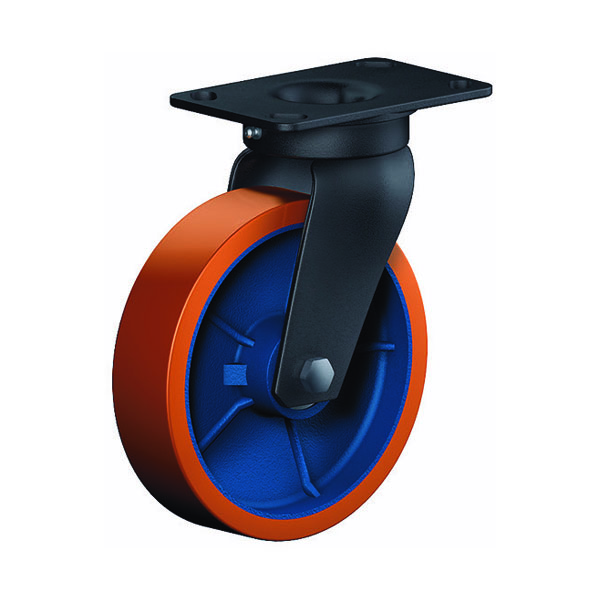

  • Swivel Castor Heavy Duty Series GT, Wheel ZK

    SWIVEL CASTOR

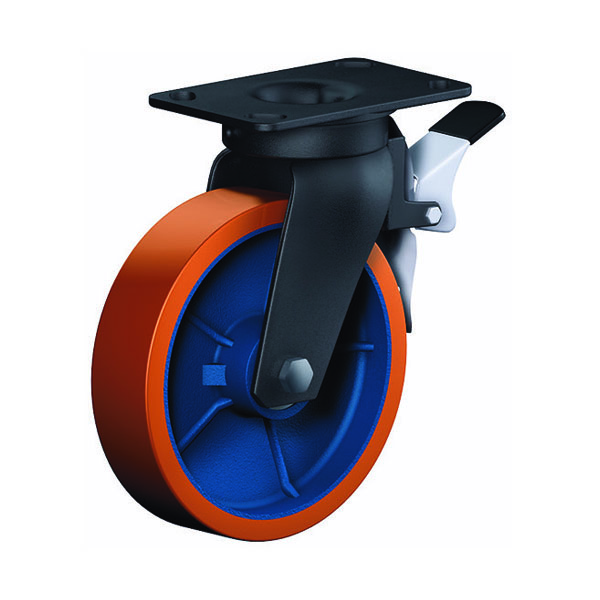

  • Wheel Brake Heavy Duty Series GT, Wheel ZK

    WHEEL BRAKE

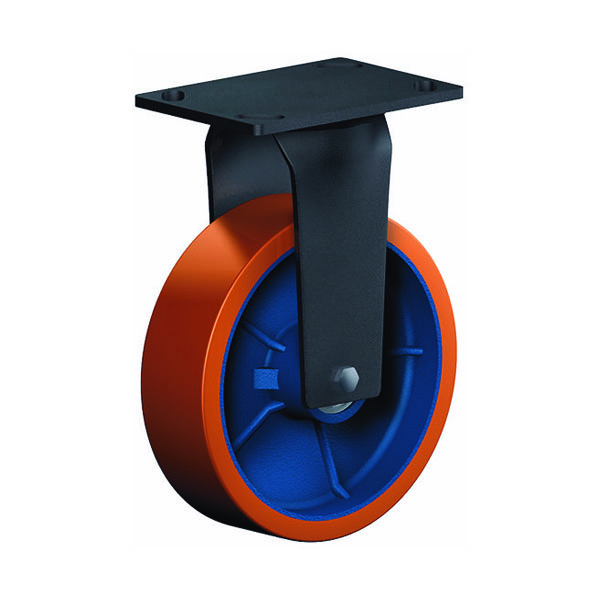

  • Fixed Castor Heavy Duty Series GT, Wheel ZK

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Heavy Duty Series GT, Wheel ZK

PDF product sheet
  • max 1200 kg
  • -30 °C - +80 °C
  • 85-250 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Heavy Duty Series GT, Wheel ZK

    Swivel Castor

  • Wheel Brake Heavy Duty Series GT, Wheel ZK

    Wheel Brake

  • Fixed Castor Heavy Duty Series GT, Wheel ZK

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • high abrasion and tear resistance
  • high resistance to shocks
  • good chemical resistance

Applications

  • Heavy duty dollies
  • Machinery moving dollies
  • Scaffolds

Material

Material

Tread: Cast polyurethane, 95±3 Shore A
Wheel centre, Cast-iron - painted

Fork material

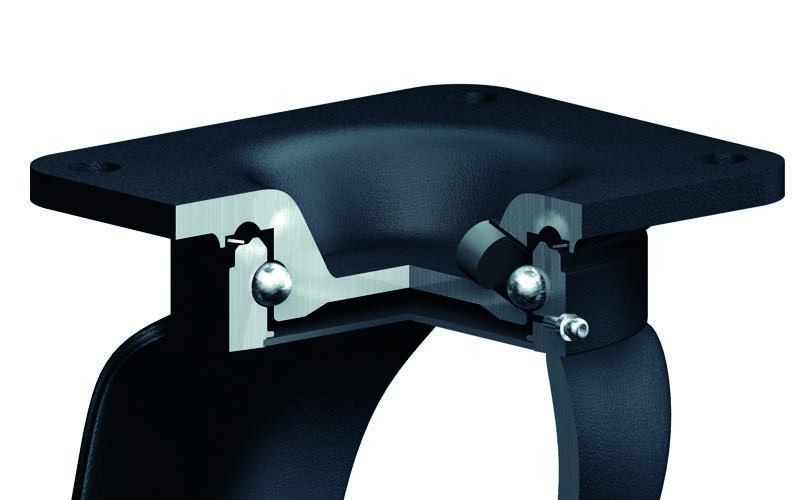

Non-Kingpin swivel head with hardened steel raceways and hardened steel balls, forged and tempered, fitted with grease nipple, wheel axle bolted and locked

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

20 of 20 items in this series are displayed.

Article number Articel type Price € QTY
GT 85 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 85x60

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 133
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 99
  • Radlagerung Ball bearing
GTF 85 ZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 85x60

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 133
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Ball bearing
GT 101 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 100x40

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 104
  • Radlagerung Ball bearing

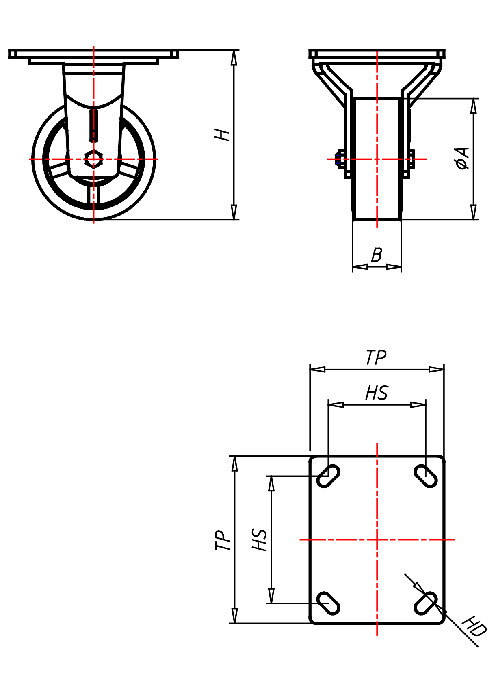

GTF 101 ZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 100x40

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Ball bearing
GT 127 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 125x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 165
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 117
  • Radlagerung Ball bearing
GTF 127 ZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 125x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 165
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Ball bearing
GT 140 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 140x60

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 195
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 146
  • Radlagerung Ball bearing
GT 150 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 150x40

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 149
  • Radlagerung Ball bearing

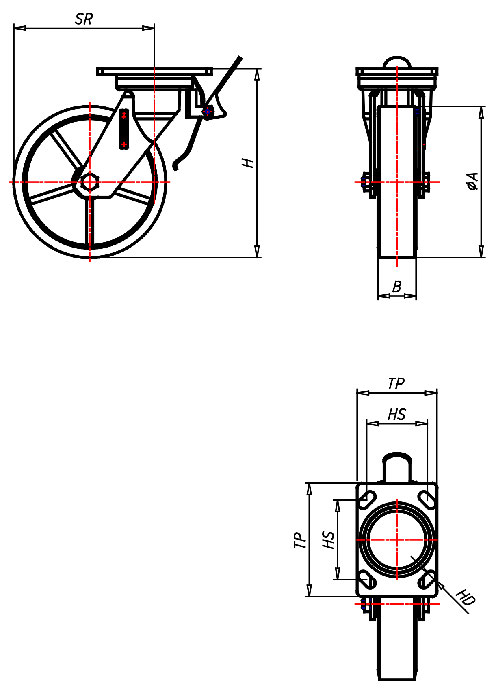

GTBR 150 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor with wheel brake Wheel-∅ x width [mm]: 150x40

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 149
  • Radlagerung Ball bearing
GTF 150 ZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 150x40

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing
GT 151 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 150x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 150
  • Radlagerung Ball bearing
GTBR 151 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor with wheel brake Wheel-∅ x width [mm]: 150x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 150
  • Radlagerung Ball bearing
GTF 151 ZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 150x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 700
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing
GT 175 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 175x40

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 650
  • Bauhöhe H mm 238
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 174
  • Radlagerung Ball bearing
GTF 175 ZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 175x40

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 650
  • Bauhöhe H mm 238
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing

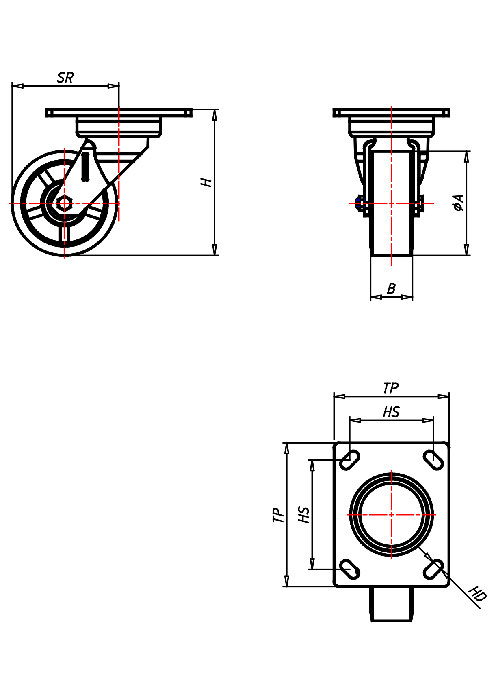

GT 200 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 1000
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 187
  • Radlagerung Ball bearing
GTBR 200 ZK

Heavy Duty Series GT, Wheel ZK

Swivel castor with wheel brake Wheel-∅ x width [mm]: 200x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 1000
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 187
  • Radlagerung Ball bearing
GTF 200 ZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 1000
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing
GT 250 LZK

Heavy Duty Series GT, Wheel ZK

Swivel castor Wheel-∅ x width [mm]: 250x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 190
  • Radlagerung Ball bearing
GTF 250 LZK

Heavy Duty Series GT, Wheel ZK

Fixed castor Wheel-∅ x width [mm]: 250x50

Heavy Duty Series GT, Wheel ZK

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing

Suitable accessories
