Heavy Duty Series GT, Wheel P
  • Swivel Castor Heavy Duty Series GT, Wheel P

    SWIVEL CASTOR

  • Wheel Brake Heavy Duty Series GT, Wheel P

    WHEEL BRAKE

  •  Heavy Duty Series GT, Wheel P

Select the required versions in order to show them already filtered in the following table.

Heavy Duty Series GT, Wheel P

PDF product sheet
  • max 1270 kg
  • -30 °C - +80 °C
  • 100-250 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • +++
    weather proof

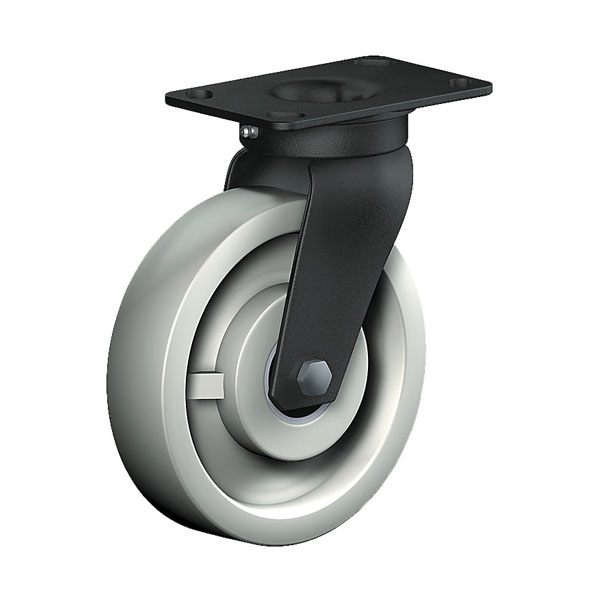

  • Swivel Castor Heavy Duty Series GT, Wheel P

    Swivel Castor

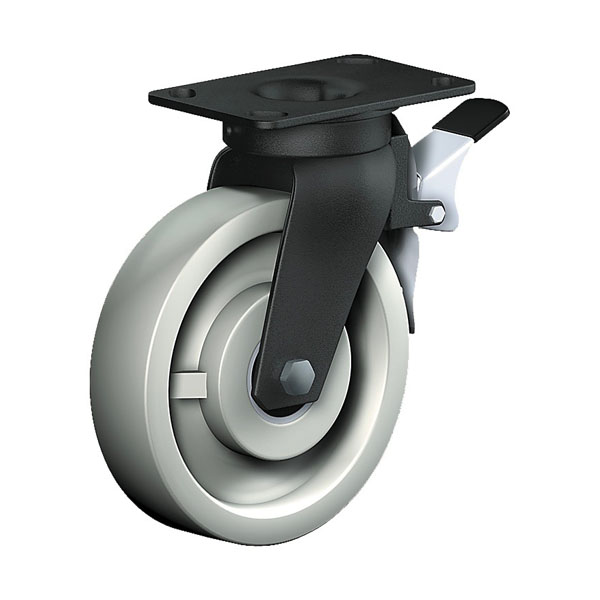

  • Wheel Brake Heavy Duty Series GT, Wheel P

    Wheel Brake

  •  Heavy Duty Series GT, Wheel P

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Heavy duty dollies
  • Machinery moving dollies
  • Scaffolds

Material

Material

Casted high quality nylon wheel

Fork material

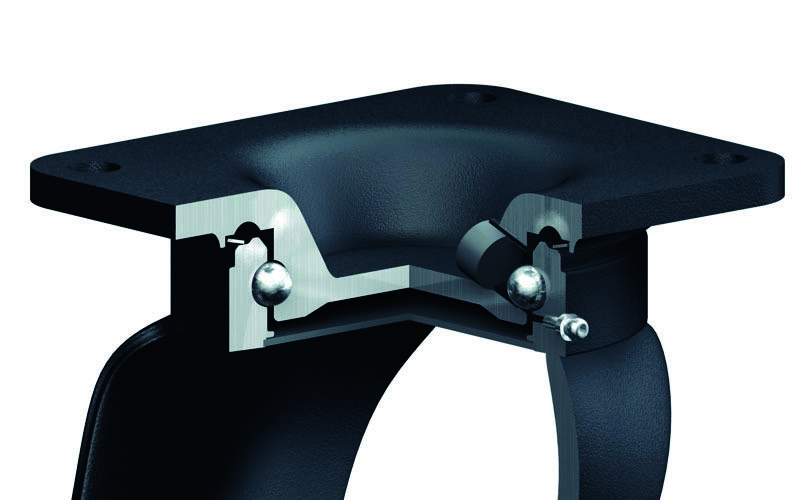

Non-Kingpin swivel head with hardened steel raceways and hardened steel balls, forged and tempered, fitted with grease nipple, wheel axle bolted and locked

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

18 of 18 items in this series are displayed.

Article number Articel type Price € QTY
GT 101 PK

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x37

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 104
  • Radlagerung Ball bearing
GTF 101 PK

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 100x37

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Ball bearing

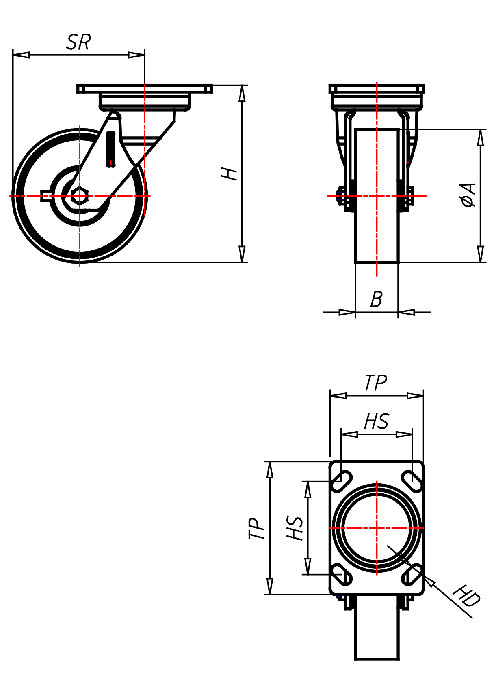

GT 101 P

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x37

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 104
  • Radlagerung Nylon plain bearing
GTF 101 P

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 100x37

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Nylon plain bearing
GT 126 PK

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 165
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 117
  • Radlagerung Ball bearing
GTF 126 PK

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x45

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 165
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Ball bearing
GT 126 P

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 165
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 117
  • Radlagerung Nylon plain bearing
GTF 126 P

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x45

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 165
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Nylon plain bearing
GT 151 PK

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x48

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 150
  • Radlagerung Ball bearing
GTF 151 PK

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x48

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing
GT 151 P

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x48

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 150
  • Radlagerung Nylon plain bearing
GTF 151 P

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x48

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 900
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Nylon plain bearing
GT 201 PK

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 187
  • Radlagerung Ball bearing
GTF 201 PK

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing
GT 201 P

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 187
  • Radlagerung Nylon plain bearing
GTF 201 P

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 1200
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Nylon plain bearing
GT 250 PK

Heavy Duty Series GT, Wheel P

Swivel castor Wheel-∅ x width [mm]: 250x60

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 1270
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 190
  • Radlagerung Ball bearing

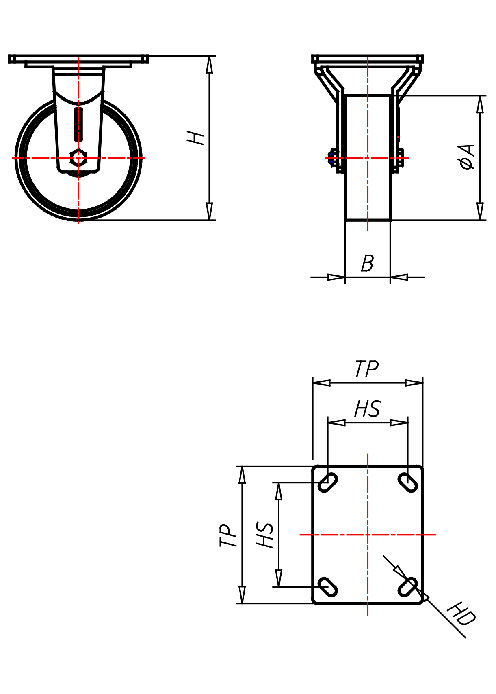

GTF 250 PK

Heavy Duty Series GT, Wheel P

Fixed castor Wheel-∅ x width [mm]: 250x60

Heavy Duty Series GT, Wheel P

Technische Daten

  • Tragkraft kg 1270
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Ball bearing
