Heavy Duty Series GT, Wheel SU

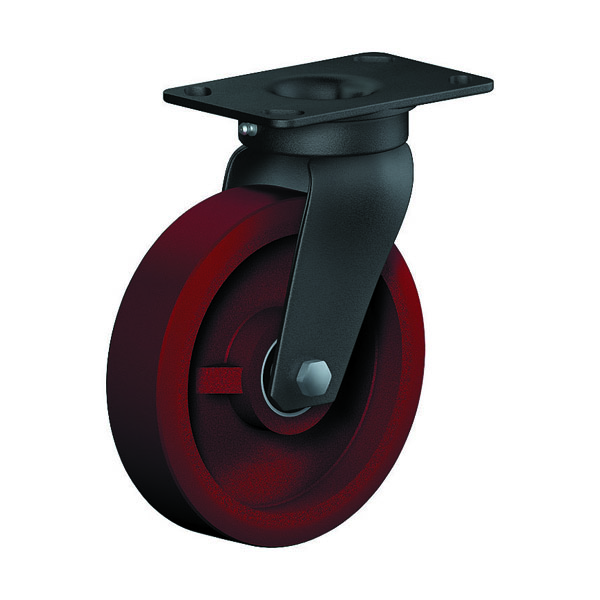

  • Swivel Castor Heavy Duty Series GT, Wheel SU

    SWIVEL CASTOR

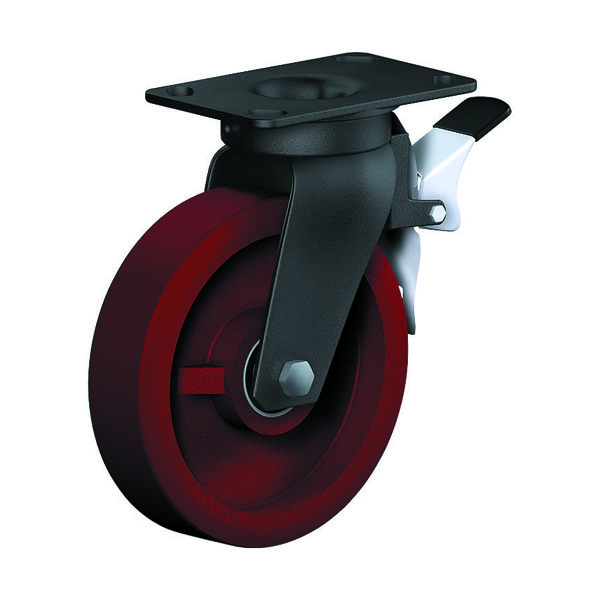

  • Wheel Brake Heavy Duty Series GT, Wheel SU

    WHEEL BRAKE

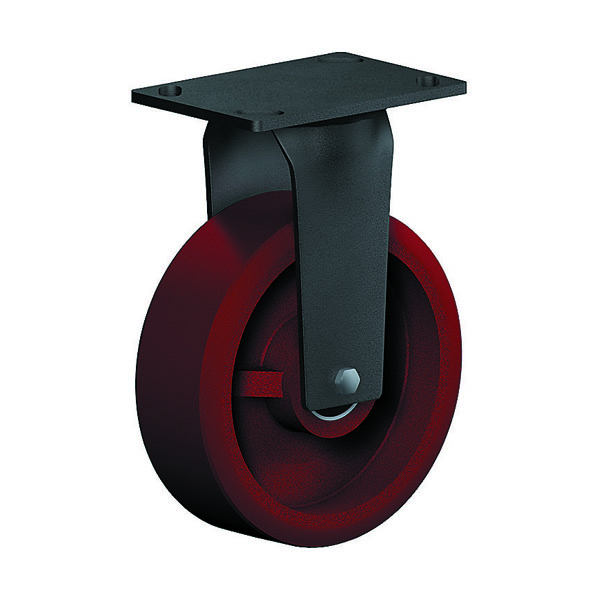

  • Fixed Castor Heavy Duty Series GT, Wheel SU

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Heavy Duty Series GT, Wheel SU

PDF product sheet
  • max 1100 kg
  • -30 °C - +80 °C
  • 100-250 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • ++
    weather proof
  • Swivel Castor Heavy Duty Series GT, Wheel SU

    Swivel Castor

  • Wheel Brake Heavy Duty Series GT, Wheel SU

    Wheel Brake

  • Fixed Castor Heavy Duty Series GT, Wheel SU

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • high abrasion and tear resistance
  • high resistance to shocks
  • good chemical resistance

Applications

  • Heavy duty dollies
  • Machinery moving dollies
  • Scaffolds

Material

Material

Tread: Cast polyurethane, 95±3 Shore A
Wheel centre, Cast-iron - painted

Fork material

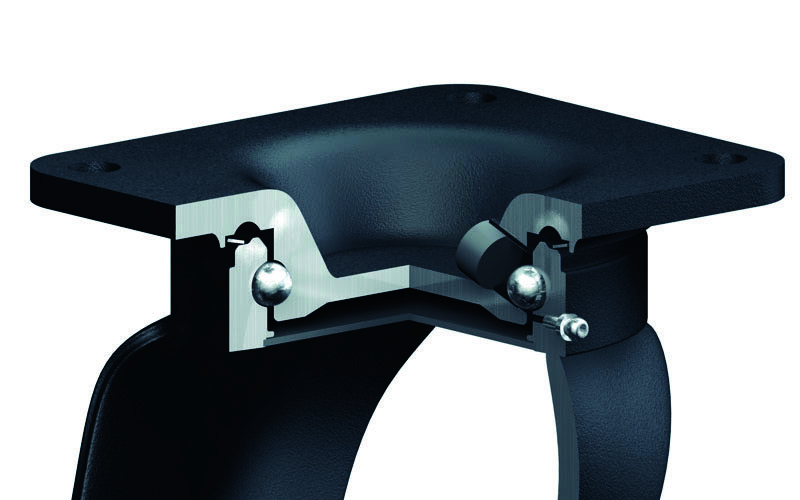

Non-Kingpin swivel head with hardened steel raceways and hardened steel balls, forged and tempered, fitted with grease nipple, wheel axle bolted and locked

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

9 of 9 items in this series are displayed.

Article number Articel type Price € QTY
GT 100 SUB

Heavy Duty Series GT, Wheel SU

Swivel castor Wheel-∅ x width [mm]: 100x43

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Störkreisradius SR mm 104
  • Radlagerung Roller bearing
GTF 100 SUB

Heavy Duty Series GT, Wheel SU

Fixed castor Wheel-∅ x width [mm]: 100x43

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 140
  • Plattengröße TP mm 138x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 10
  • Radlagerung Roller bearing
GT 150 SUB

Heavy Duty Series GT, Wheel SU

Swivel castor Wheel-∅ x width [mm]: 150x45

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 725
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 150
  • Radlagerung Roller bearing

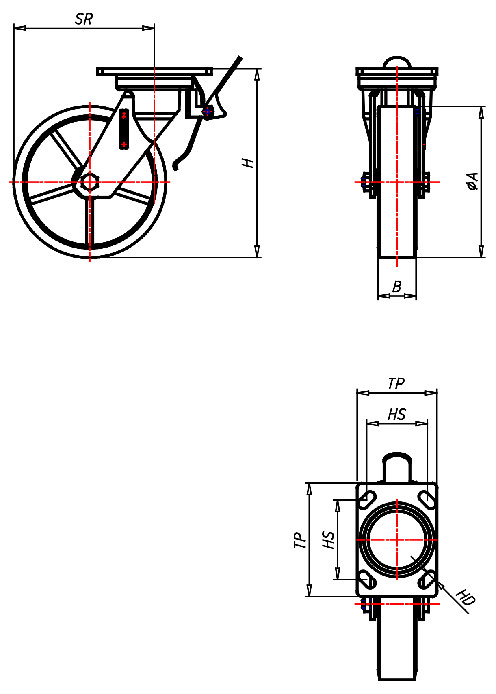

GTBR 150 SUB

Heavy Duty Series GT, Wheel SU

Swivel castor with wheel brake Wheel-∅ x width [mm]: 150x45

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 725
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 150
  • Radlagerung Roller bearing
GTF 150 SUB

Heavy Duty Series GT, Wheel SU

Fixed castor Wheel-∅ x width [mm]: 150x45

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 725
  • Bauhöhe H mm 200
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Roller bearing

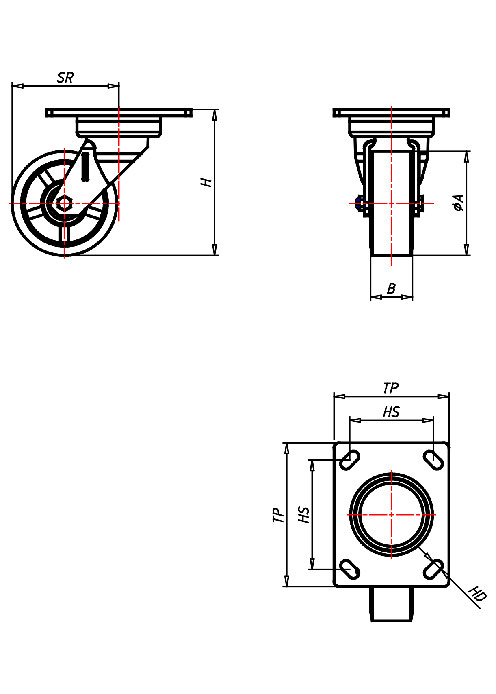

GT 200 SUB

Heavy Duty Series GT, Wheel SU

Swivel castor Wheel-∅ x width [mm]: 200x51

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 1000
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 187
  • Radlagerung Roller bearing
GTBR 200 SUB

Heavy Duty Series GT, Wheel SU

Swivel castor with wheel brake Wheel-∅ x width [mm]: 200x51

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 1000
  • Bauhöhe H mm 250
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 187
  • Radlagerung Roller bearing
GT 250 SUB

Heavy Duty Series GT, Wheel SU

Swivel castor Wheel-∅ x width [mm]: 250x51

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 1100
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 190
  • Radlagerung Roller bearing

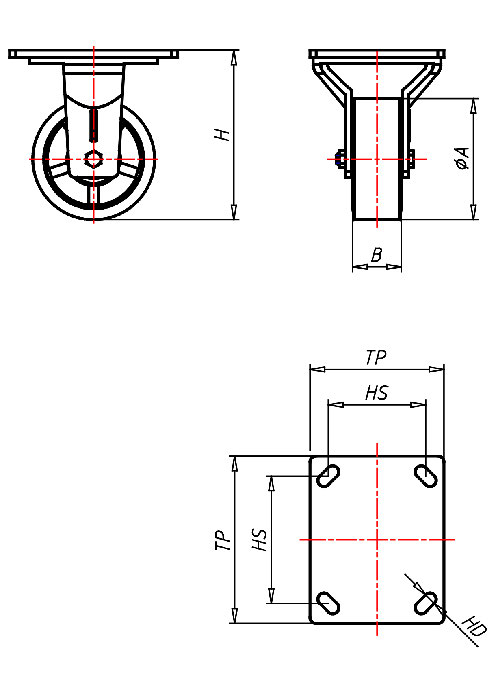

GTF 250 SUB

Heavy Duty Series GT, Wheel SU

Fixed castor Wheel-∅ x width [mm]: 250x51

Heavy Duty Series GT, Wheel SU

Technische Daten

  • Tragkraft kg 1100
  • Bauhöhe H mm 300
  • Plattengröße TP mm 150x105
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Roller bearing
