Heavy Duty Series PD, Wheel E

 PDF product sheet

max 450 kg
-20 °C - +70 °C
100-250 mm

++

swivels easily
++

wear resistant
+++

shock proof
+++

floor protective
++

weather proof

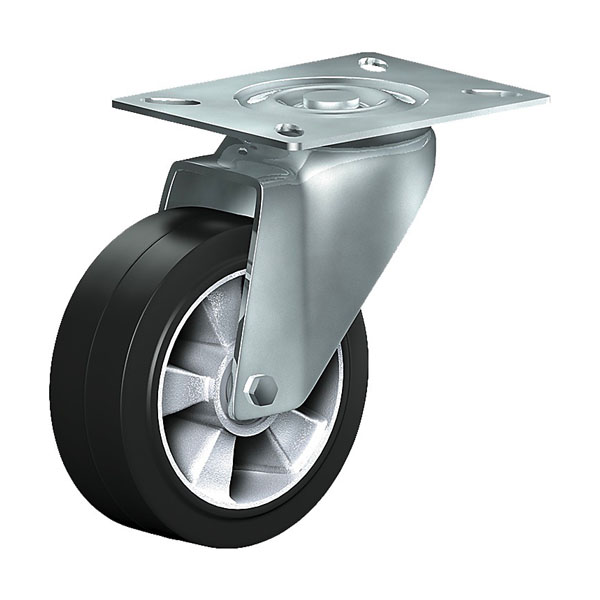

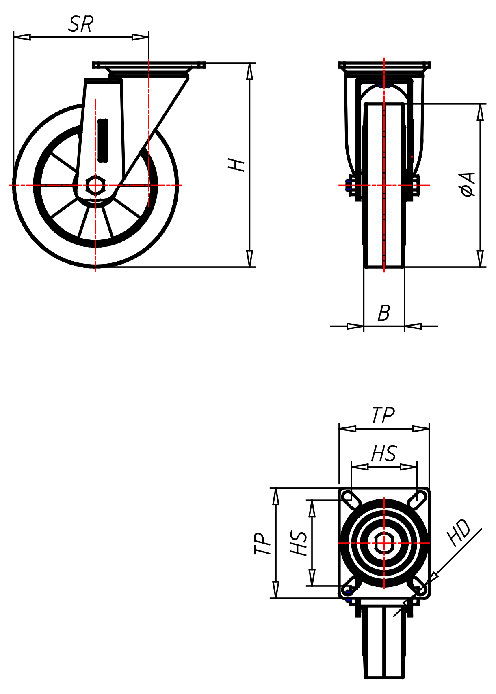

Swivel Castor

Show dimensions

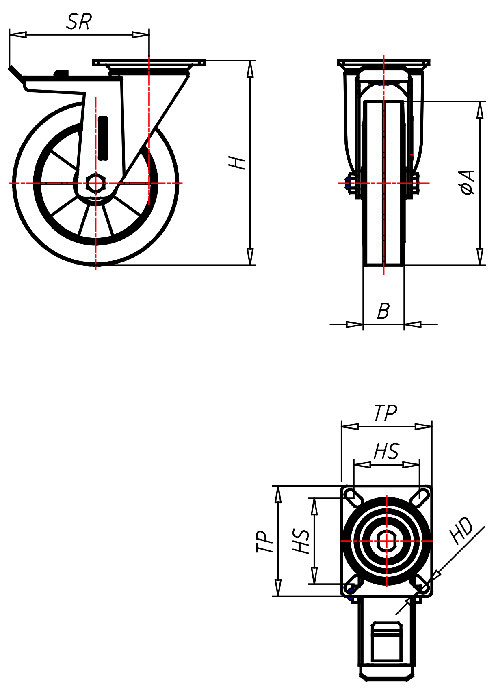

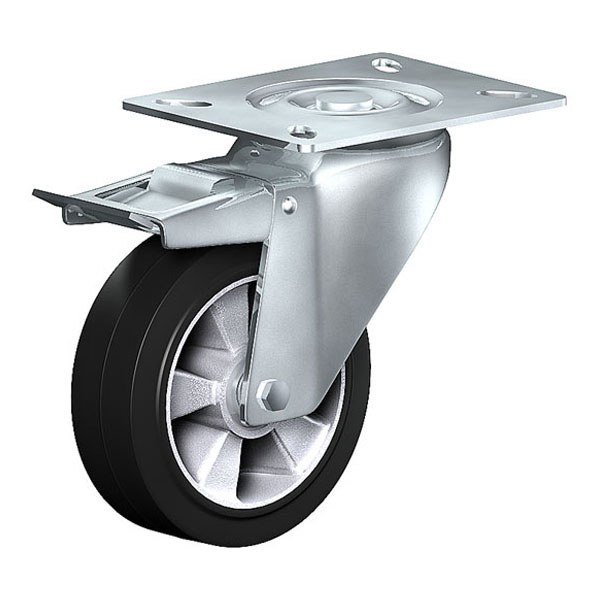

Swivel Castor With Total Lock

Show dimensions

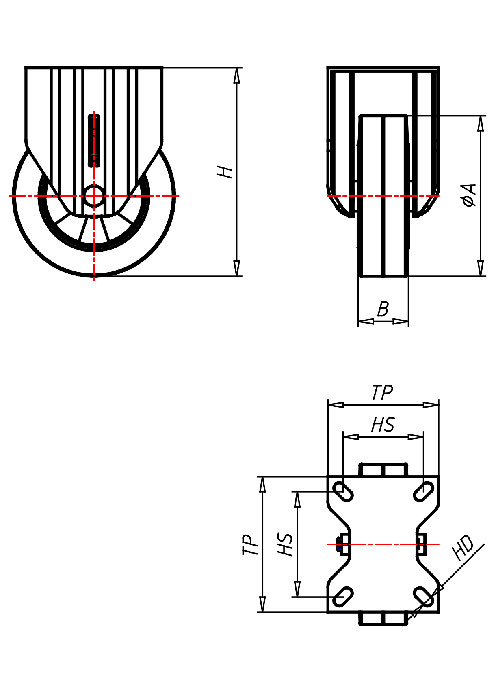

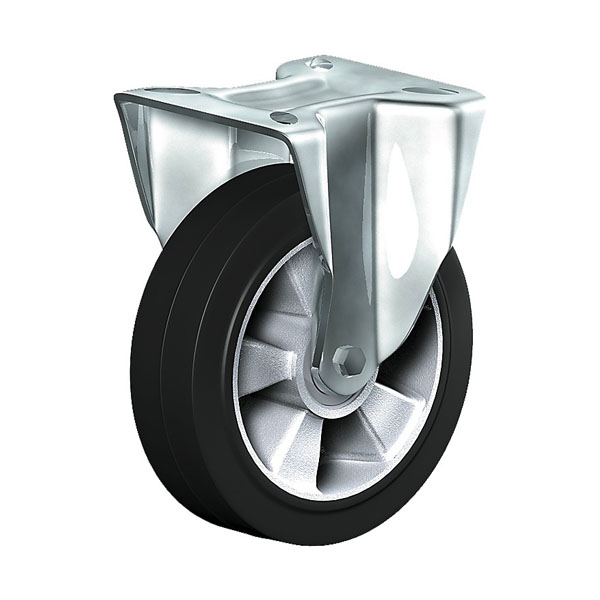

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Tiles
Asphalt
Parquet flooring
Obstacles

Advantages

excellent running performance
very silent in motion
low rolling resistance
good abrasion resistance
corrosion resistant
non-marking in grey

Applications

Heavy duty dollies
Machinery moving dollies
Scaffolds
Racks

Material

Tread: Elastic solid rubber tyre, black, 73±5 Shore A, vulcanised on wheel centre
Wheel centre: Die-cast aluminium alloy

Fork material

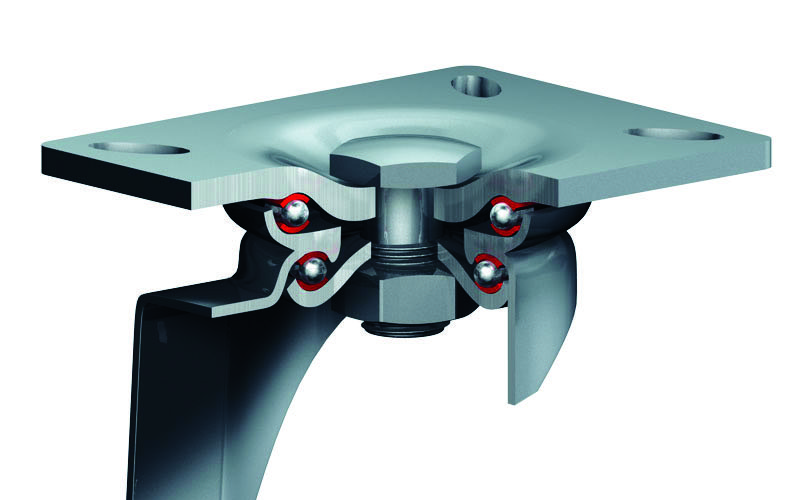

Finish: electro-zinc plated, hardened steel balls, double ball race – hardened steel sheet, with strong Kingpin bolted and locked – adjustable, thermoplastic dust protection ring and seal, wheel axle bolted, adjustable total lock – leading or trailing available

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

45 of 45 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm
PD 100 EK	Swivel castor	100x40	150	139	105x85	80x60	8,5	94
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 139 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 94 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 EK	Swivel castor with total lock	100x40	150	139	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 139 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 EK	Fixed castor	100x40	150	139	105x85	80x60	8,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 139 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 100 EB	Swivel castor	100x40	150	139	105x85	80x60	8,5	94
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 139 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 94 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 100 EB	Swivel castor with total lock	100x40	150	139	105x85	80x60	8,5	140
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 139 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 100 EB	Fixed castor	100x40	150	139	105x85	80x60	8,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 100x40 Technische Daten Tragkraft kg 150 Bauhöhe H mm 139 Plattengröße TP mm 105x85 Lochabstand HS mm 80x60 Loch-Ø HD mm 8,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 LEK	Swivel castor	125x40	180	164	135x110	105x80	10,5	106
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 180 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 LEK	Swivel castor with total lock	125x40	180	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 180 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 LEK	Fixed castor	125x40	180	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 180 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 LEB	Swivel castor	125x40	180	164	135x110	105x80	10,5	106
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 180 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 106 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 LEB	Swivel castor with total lock	125x40	180	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 180 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 LEB	Fixed castor	125x40	180	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 125x40 Technische Daten Tragkraft kg 180 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 EK	Swivel castor	125x50	220	164	135x110	105x80	10,5	107
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 220 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 107 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 EK	Swivel castor with total lock	125x50	220	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 220 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 EK	Fixed castor	125x50	220	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 220 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 125 EB	Swivel castor	125x50	220	164	135x110	105x80	10,5	107
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 220 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 107 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 125 EB	Swivel castor with total lock	125x50	220	164	135x110	105x80	10,5	140
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 220 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 125 EB	Fixed castor	125x50	220	164	135x110	105x80	10,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 125x50 Technische Daten Tragkraft kg 220 Bauhöhe H mm 164 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 10,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PS 160 EK	Swivel castor	160x50	300	208	135x110	105x80	12,5	145
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 145 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PST 160 EK	Swivel castor with total lock	160x50	300	208	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PSF 160 EK	Fixed castor	160x50	300	208	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PS 160 EB	Swivel castor	160x50	300	208	135x110	105x80	12,5	145
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 145 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PST 160 EB	Swivel castor with total lock	160x50	300	208	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PSF 160 EB	Fixed castor	160x50	300	208	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 160x50 Technische Daten Tragkraft kg 300 Bauhöhe H mm 208 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 180 EK	Swivel castor	180x50	350	240	135x110	105x80	12,5	157
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 180x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 157 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 180 EK	Swivel castor with total lock	180x50	350	240	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 180x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 180 EK	Fixed castor	180x50	350	240	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 180x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 180 EB	Swivel castor	180x50	350	240	135x110	105x80	12,5	157
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 180x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 157 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 180 EB	Swivel castor with total lock	180x50	350	240	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 180x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 180 EB	Fixed castor	180x50	350	240	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 180x50 Technische Daten Tragkraft kg 350 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 EK	Swivel castor	200x50	450	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 EK	Swivel castor with total lock	200x50	450	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 EK	Fixed castor	200x50	450	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 200 EB	Swivel castor	200x50	450	250	135x110	105x80	12,5	167
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 167 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 200 EB	Swivel castor with total lock	200x50	450	250	135x110	105x80	12,5	170
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 170 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 200 EB	Fixed castor	200x50	450	250	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 250 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 230 EK	Swivel castor	230x50	450	295	135x110	105x80	12,5	188
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 230x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 295 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 188 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 230 EK	Swivel castor with total lock	230x50	450	295	135x110	105x80	12,5	188
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 230x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 295 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 188 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 230 EK	Fixed castor	230x50	450	295	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 230x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 295 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 230 EB	Swivel castor	230x50	450	295	135x110	105x80	12,5	188
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 230x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 295 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 188 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 230 EB	Swivel castor with total lock	230x50	450	295	135x110	105x80	12,5	188
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 230x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 295 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 188 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 230 EB	Fixed castor	230x50	450	295	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 230x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 295 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
PD 250 LEK	Swivel castor	250x50	450	305	135x110	105x80	12,5	198
Heavy Duty Series PD, Wheel E Swivel castor Wheel-∅ x width [mm]: 250x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 305 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 198 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDT 250 LEK	Swivel castor with total lock	250x50	450	305	135x110	105x80	12,5	198
Heavy Duty Series PD, Wheel E Swivel castor with total lock Wheel-∅ x width [mm]: 250x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 305 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Störkreisradius SR mm 198 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)
PDF 250 LEK	Fixed castor	250x50	450	305	135x110	105x80	12,5
Heavy Duty Series PD, Wheel E Fixed castor Wheel-∅ x width [mm]: 250x50 Technische Daten Tragkraft kg 450 Bauhöhe H mm 305 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 12,5 Radlagerung Ball bearing PDF Data sheet 3D model (Cardenas Customer portal)

Suitable accessories

Counter plate 105x85x3,5 mm
Art.No. GEGENPLATTE 1

blank
Stahl blank
105x85x3,5
80x60

Qty € /Pc., exkl. Shipping
Counter plate 135x110x5 mm
Art.No. GEGENPLATTE 2

blank
Stahl blank
135x110x5
105x80

Qty € /Pc., exkl. Shipping
Counter plate 135x110x8 mm
Art.No. GEGENPLATTE 3

blank
Stahl blank
135x110x8
105x80

Qty € /Pc., exkl. Shipping
Directional lock DL3
Art.No. DL 3

360 Grad
Stahlblech verzinkt
135x110
105x80

Qty € /Pc., exkl. Shipping
Fixing Bolt M8x20 mm
Art.No. M 8X20

verzinkt
Stahl 8.8 verzinkt
M8x20

Qty € /Pc., exkl. Shipping
Fixing bolt M10x20 mm
Art.No. M 10X20

verzinkt
Stahl 8.8 verzinkt
M10x20

Qty € /Pc., exkl. Shipping
Fixing Bolt M12x25mm
Art.No. M 12X25

verzinkt
Stahl 8.8 verzinkt
M12x25

Qty € /Pc., exkl. Shipping
Foot guard zinc plated
Art.No. FUSSSCHUTZ VZ

Qty € /Pc., exkl. Shipping
