Stainless Steel Series IN, Wheel PS

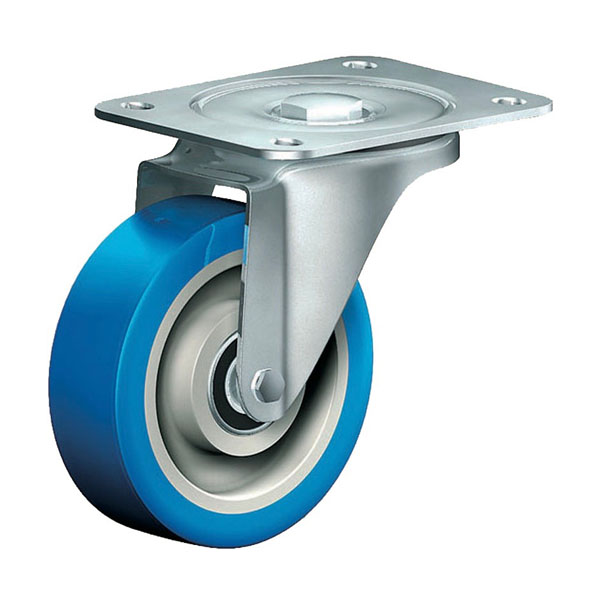

  • Swivel Castor Stainless Steel Series IN, Wheel PS

    SWIVEL CASTOR

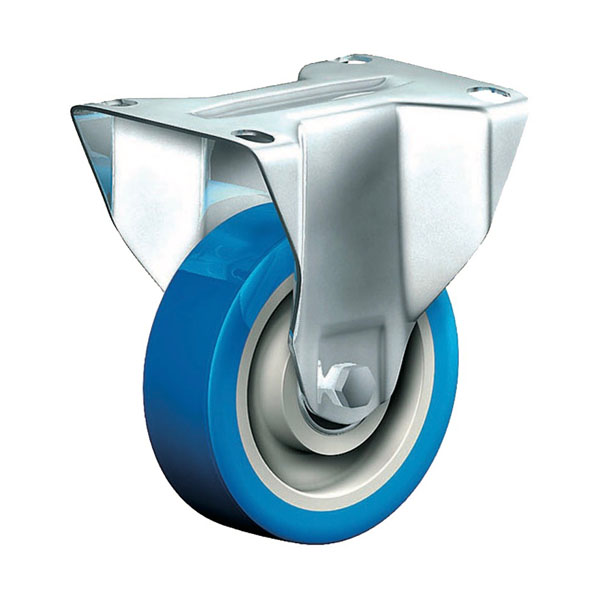

  • Fixed Castor Stainless Steel Series IN, Wheel PS

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series IN, Wheel PSEdelstahl

PDF product sheet
  • max 400 kg
  • -30 °C - +80 °C
  • 100-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series IN, Wheel PS

    Swivel Castor

  • Fixed Castor Stainless Steel Series IN, Wheel PS

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • very silent in motion
  • low rolling resistance
  • high abrasion and tear resistance
  • high resistance to shocks
  • easy to clean
  • good chemical resistance

Applications

  • Wet environments
  • Dollies

Material

Material

Cast soft polyurethane coating,
87±3 Shore A
High quality nylon wheel centre

Fork material

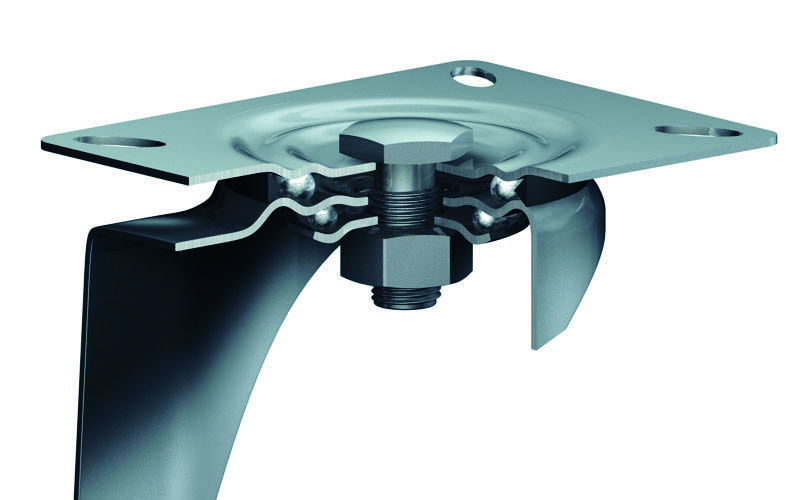

Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

10 of 10 items in this series are displayed.

Article number Articel type Price € QTY
INV 100 PSBX

Stainless Steel Series IN, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 102
  • Radlagerung Roller bearing
INVF 100 PSBX

Stainless Steel Series IN, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IN 100 PSBX

Stainless Steel Series IN, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 100x33

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 96
  • Radlagerung Roller bearing
INF 100 PSBX

Stainless Steel Series IN, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 100x33

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
IN 125 PSBX

Stainless Steel Series IN, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 125x35

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 175
  • Bauhöhe H mm 155
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 114
  • Radlagerung Roller bearing
INF 125 PSBX

Stainless Steel Series IN, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 125x35

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 175
  • Bauhöhe H mm 155
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IN 150 PSBX

Stainless Steel Series IN, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 210
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 127
  • Radlagerung Roller bearing

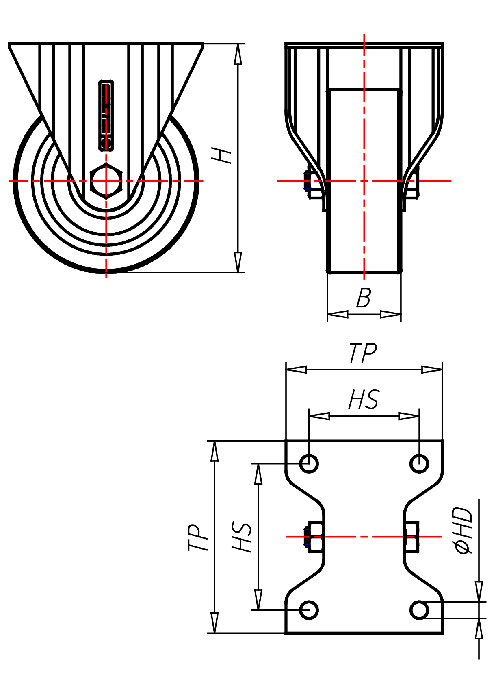

INF 150 PSBX

Stainless Steel Series IN, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 210
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing

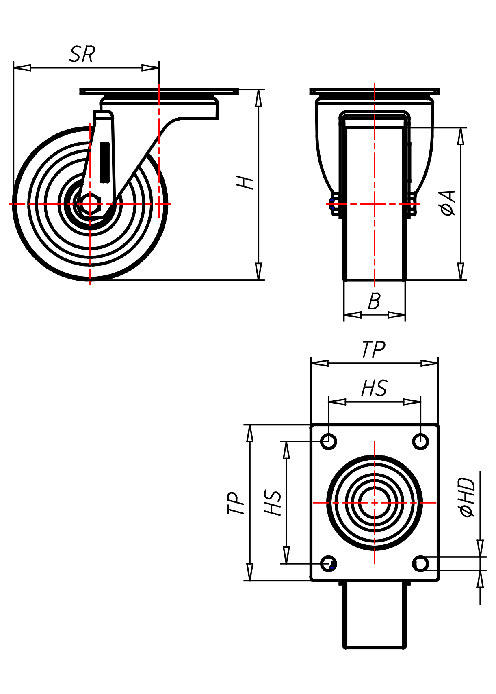

IN 200 PSBX

Stainless Steel Series IN, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 162
  • Radlagerung Roller bearing
INF 200 PSBX

Stainless Steel Series IN, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel PS

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
