Coated in cast polyurethane, 95±3 Shore A High quality nylon wheel centre
Fork material

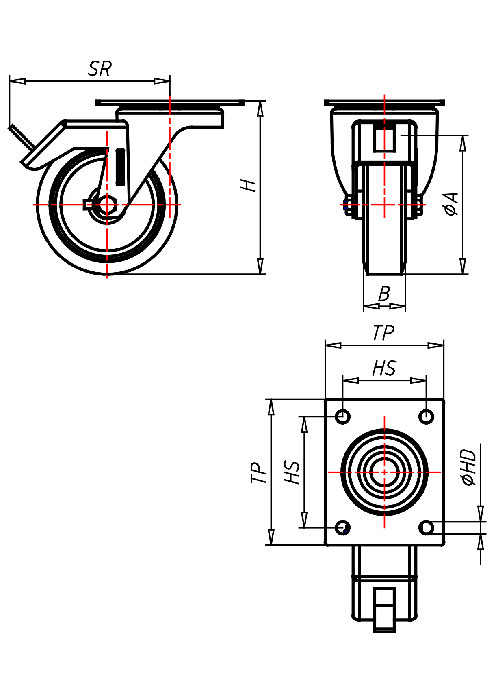

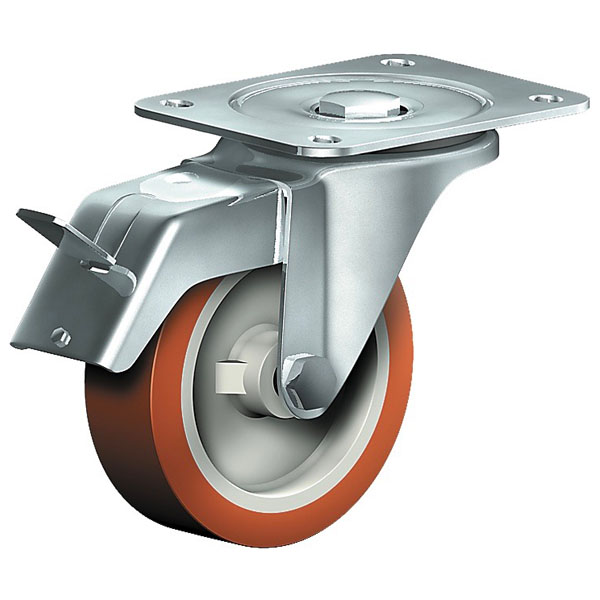

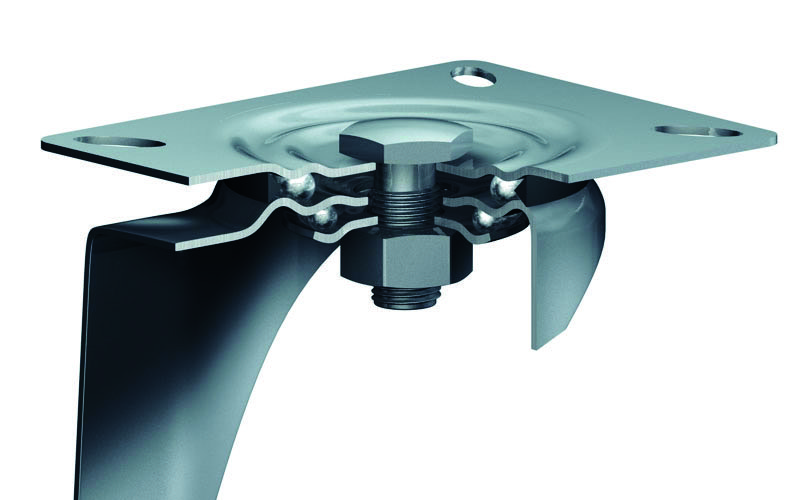

Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Documents/CAD
Cadenas Partcommunity-Portal
For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.
The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.
Wheel Coated in injected polyurethane, 58±3 Shore D
Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN,
Rad P
max 400 kg
150-500 mm
Wheel Casted high quality nylon wheel
Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN,
Rad AEL
max 400 kg
150-500 mm
Wheel coated in polyurethane, 90±3 Shore A elecrically conductive <104Ω
Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN,
Rad EL
max 205 kg
150-500 mm
Wheel rubber tyre, electrically conductive, volume resistance value <104Ω
Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
Stainless Steel
Serie IN,
Rad D
max 205 kg
150-500 mm
Wheel Tread: standard rubber tyre black, 85±5 Shore A
Fork Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock
