Stainless Steel Series IN, Wheel DG

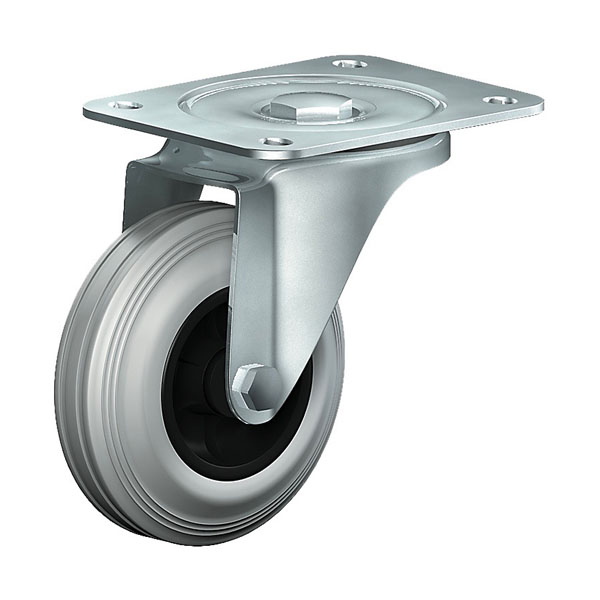

  • Swivel Castor Stainless Steel Series IN, Wheel DG

    SWIVEL CASTOR

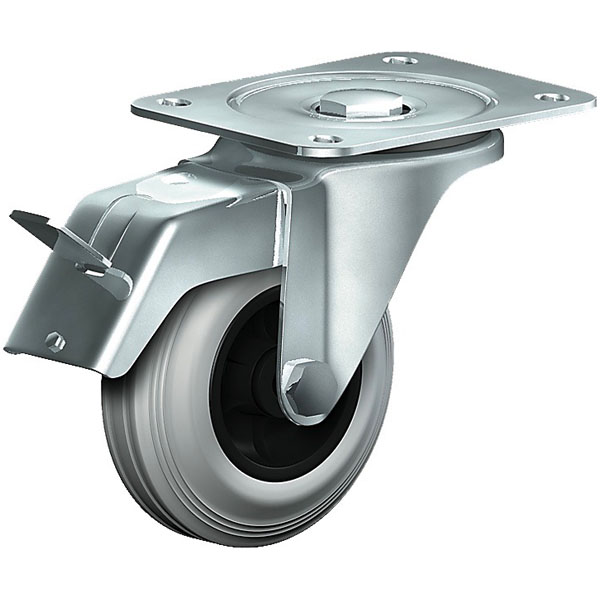

  • Swivel Castor With Total Lock Stainless Steel Series IN, Wheel DG

    SWIVEL CASTOR WITH TOTAL LOCK

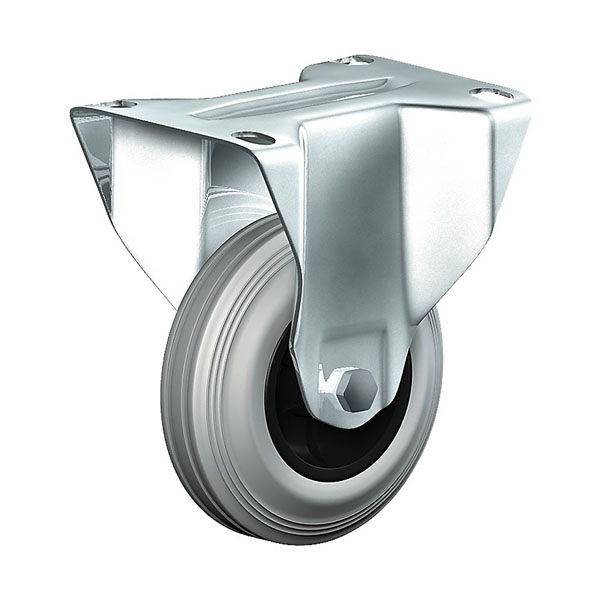

  • Fixed Castor Stainless Steel Series IN, Wheel DG

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series IN, Wheel DGEdelstahl

PDF product sheet
  • max 230 kg
  • -20 °C - +60 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series IN, Wheel DG

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series IN, Wheel DG

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series IN, Wheel DG

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • non-marking – floor protective
  • excellent running performance
  • very silent in motion
  • low rolling resistance
  • good abrasion resistance

Applications

  • Wet environments
  • Dollies

Material

Material

Elastic solid rubber tyre, grey, 75±5 Shore A

Quality nylon wheel centre, black

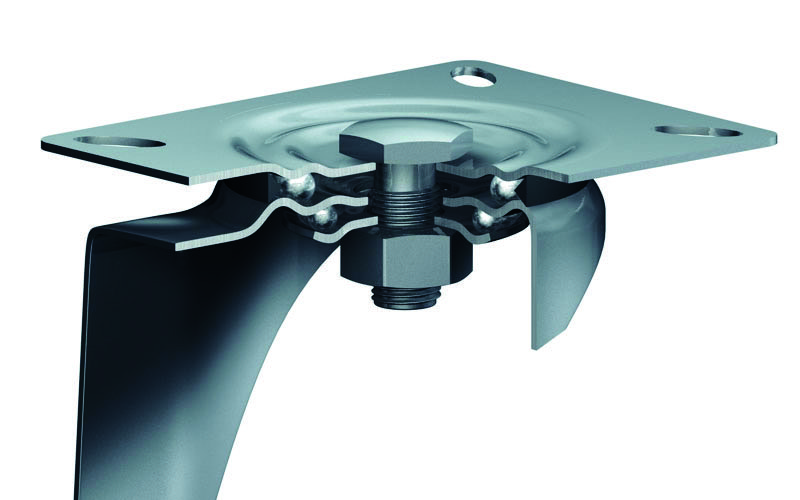

Fork material

Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

36 of 36 items in this series are displayed.

Article number Articel type Price € QTY

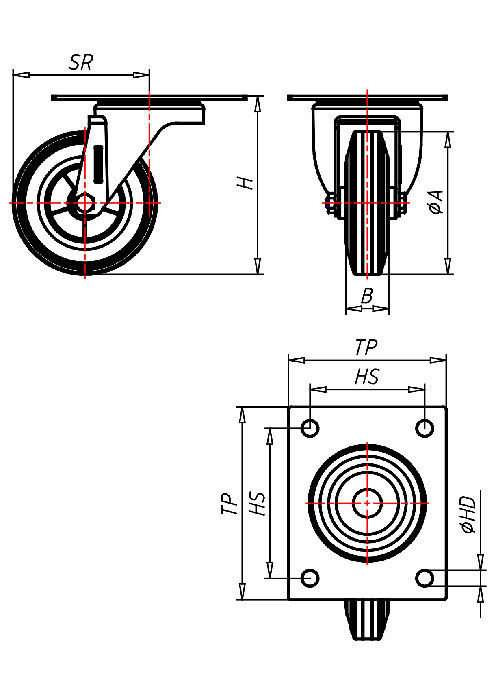

IN 80 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 81
  • Radlagerung Roller bearing

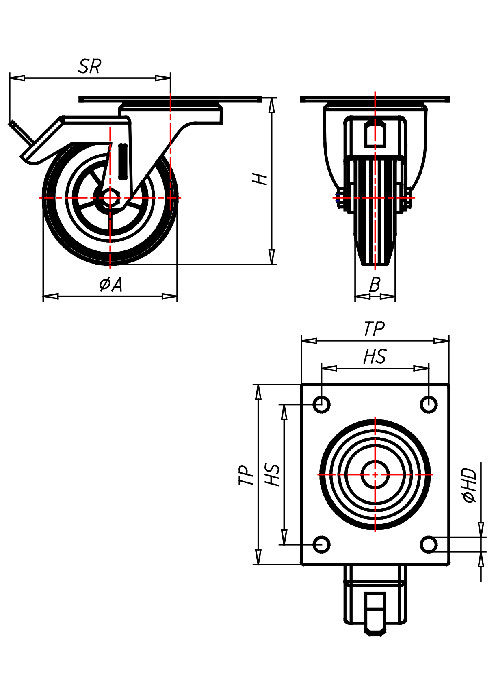

INT 80 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 115
  • Radlagerung Roller bearing

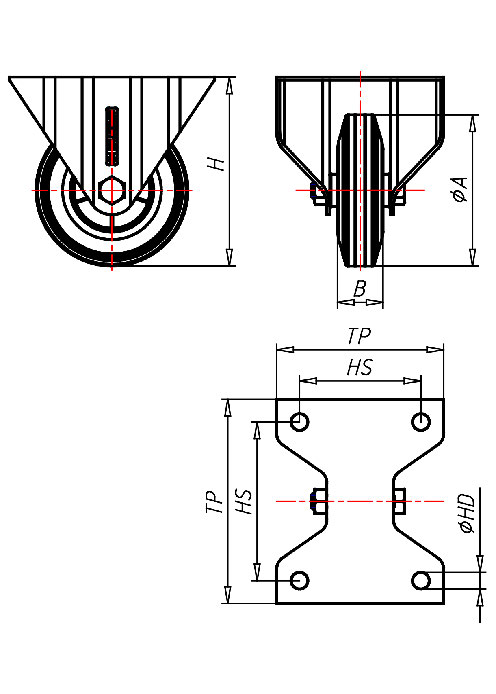

INF 80 DGBX

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
IN 80 DG

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 81
  • Radlagerung Nylon plain bearing
INT 80 DG

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 115
  • Radlagerung Nylon plain bearing
INF 80 DG

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
INV 100 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 101
  • Radlagerung Roller bearing
INVT 100 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Roller bearing
INVF 100 DGBX

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IN 100 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 101
  • Radlagerung Roller bearing
INT 100 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 120
  • Radlagerung Roller bearing
INF 100 DGBX

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
INV 100 DG

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 101
  • Radlagerung Nylon plain bearing
INVT 100 DG

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Nylon plain bearing
INVF 100 DG

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 100 DG

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 101
  • Radlagerung Nylon plain bearing
INT 100 DG

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 120
  • Radlagerung Nylon plain bearing
INF 100 DG

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 150 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 127
  • Radlagerung Roller bearing
INT 150 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Roller bearing
INF 150 DGBX

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IN 150 DG

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 127
  • Radlagerung Nylon plain bearing
INT 150 DG

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Nylon plain bearing
INF 150 DG

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 160 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 160
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 132
  • Radlagerung Roller bearing
INT 160 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 160
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Roller bearing
INF 160 DGBX

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 160
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IN 160 DG

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 160
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 132
  • Radlagerung Nylon plain bearing
INT 160 DG

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 160
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Nylon plain bearing
INF 160 DG

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 160
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 200 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 162
  • Radlagerung Roller bearing
INT 200 DGBX

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 190
  • Radlagerung Roller bearing
INF 200 DGBX

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IN 200 DG

Stainless Steel Series IN, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 162
  • Radlagerung Nylon plain bearing
INT 200 DG

Stainless Steel Series IN, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 190
  • Radlagerung Nylon plain bearing
INF 200 DG

Stainless Steel Series IN, Wheel DG

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing

Suitable accessories
