Stainless Steel Series IP, Wheel AEL
  • Swivel Castor Stainless Steel Series IP, Wheel AEL

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Stainless Steel Series IP, Wheel AEL

    SWIVEL CASTOR WITH TOTAL LOCK

  • Fixed Castor Stainless Steel Series IP, Wheel AEL

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series IP, Wheel AELEdelstahlelectrically conductive

PDF product sheet
  • max 500 kg
  • -20 °C - +70 °C
  • 125-200 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • +++
    weather proof

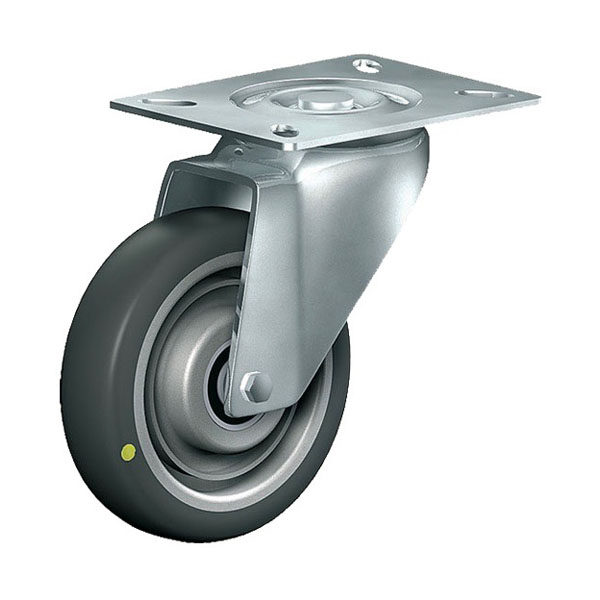

  • Swivel Castor Stainless Steel Series IP, Wheel AEL

    Swivel Castor

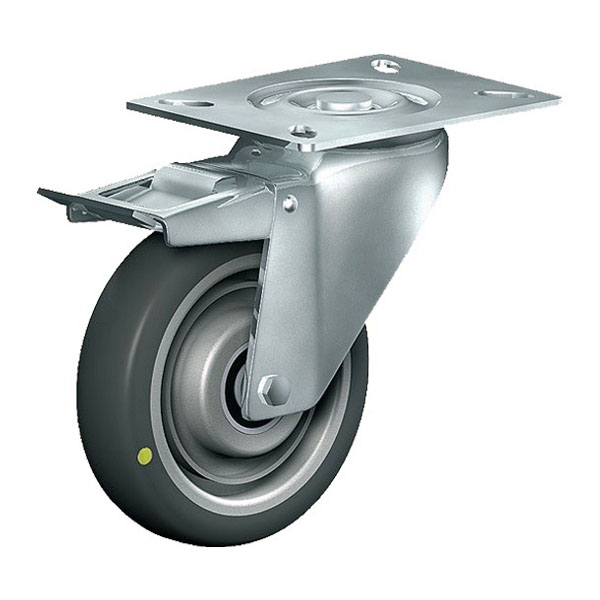

  • Swivel Castor With Total Lock Stainless Steel Series IP, Wheel AEL

    Swivel Castor With Total Lock

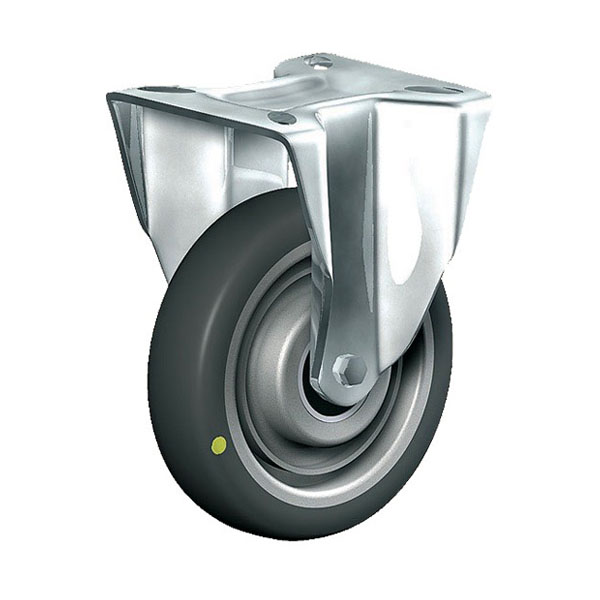

  • Fixed Castor Stainless Steel Series IP, Wheel AEL

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • electrically conductive
  • silent in motion
  • low rolling resistance
  • non-marking
  • high resistance to shocks
  • good chemical resistance

Applications

  • Wet environments
  • Dollies

Material

Material

coated in polyurethane, 90±3 Shore A elecrically conductive <104Ω
High quality nylon wheel centre

Fork material

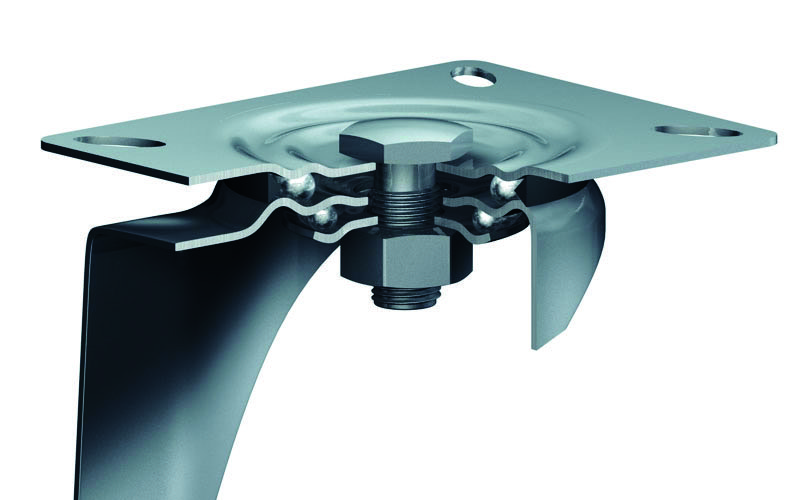

Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY

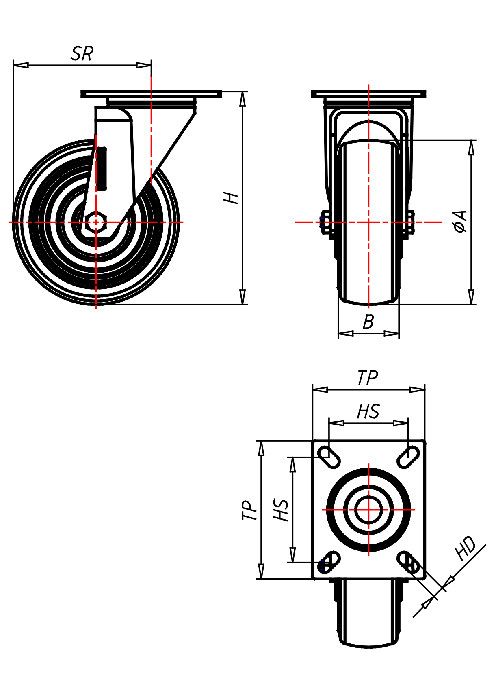

IP 126 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 125x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 107
  • Radlagerung Ball bearing
IPT 126 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Ball bearing
IPF 126 AELK

Stainless Steel Series IP, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 125x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Ball bearing
IPS 126 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 125x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 107
  • Radlagerung Ball bearing

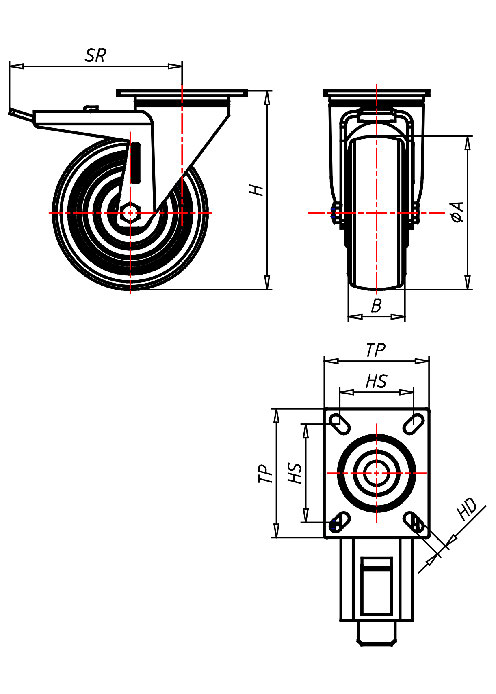

IPST 126 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Ball bearing
IPSF 126 AELK

Stainless Steel Series IP, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 125x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Ball bearing
IP 160 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 160x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 131
  • Radlagerung Ball bearing
IPT 160 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 160x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Ball bearing
IPF 160 AELK

Stainless Steel Series IP, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 160x46

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Ball bearing
IP 200 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 162
  • Radlagerung Ball bearing
IPT 200 AELK

Stainless Steel Series IP, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Ball bearing

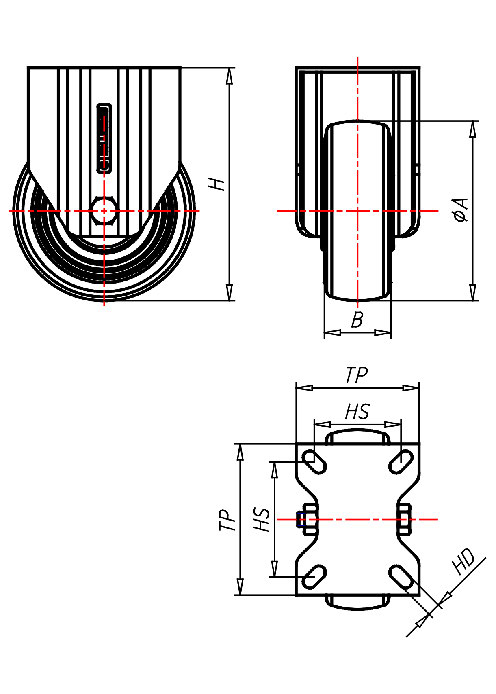

IPF 200 AELK

Stainless Steel Series IP, Wheel AEL

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel AEL

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Ball bearing
