Stainless Steel Series IP, Wheel P

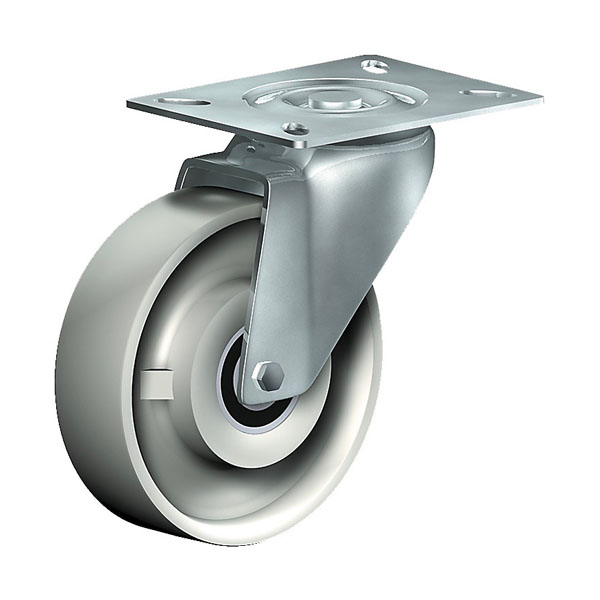

  • Swivel Castor Stainless Steel Series IP, Wheel P

    SWIVEL CASTOR

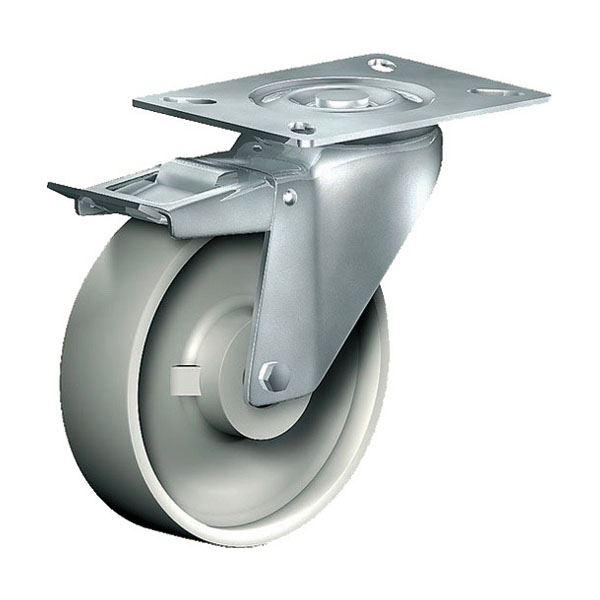

  • Swivel Castor With Total Lock Stainless Steel Series IP, Wheel P

    SWIVEL CASTOR WITH TOTAL LOCK

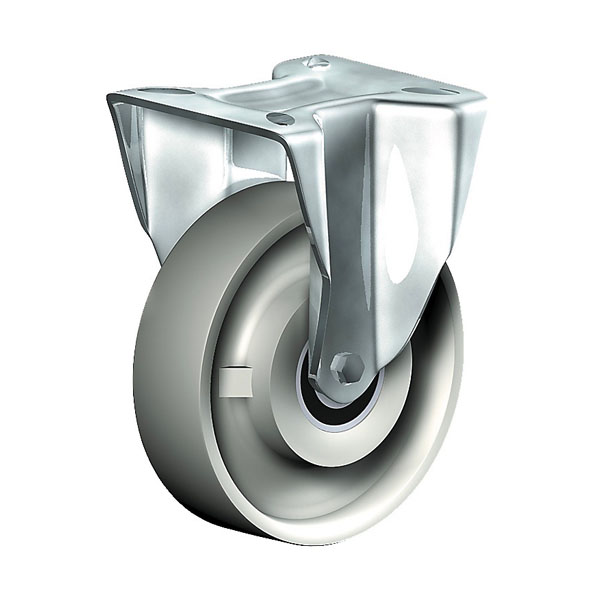

  • Fixed Castor Stainless Steel Series IP, Wheel P

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series IP, Wheel PEdelstahl

PDF product sheet
  • max 600 kg
  • -30 °C - +80 °C
  • 100-200 mm
  • +++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series IP, Wheel P

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series IP, Wheel P

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series IP, Wheel P

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Mechatronik
  • Wet environments
  • Dollies

Material

Material

Casted high quality nylon wheel

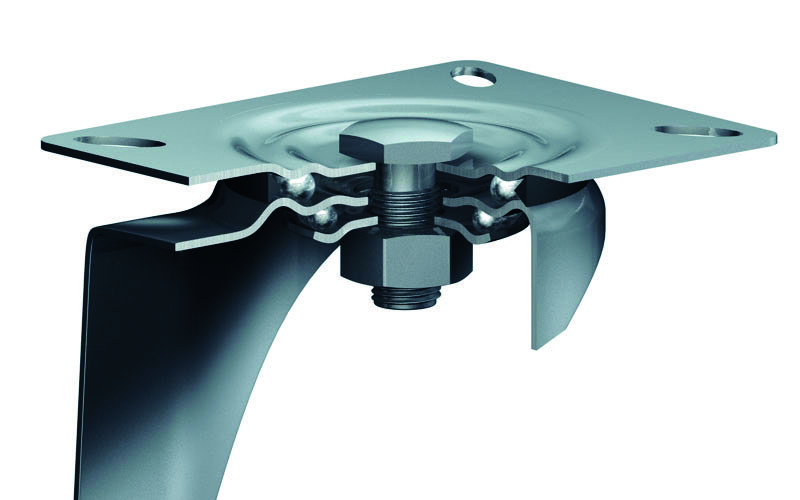

Fork material

Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

42 of 42 items in this series are displayed.

Article number Articel type Price € QTY
IP 101 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x37

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 94
  • Radlagerung Nylon plain bearing
IPT 101 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 100x37

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
IPF 101 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 100x37

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
IPS 101 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x37

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 94
  • Radlagerung Nylon plain bearing
IPST 101 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 100x37

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPSF 101 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 100x37

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IP 125 PBX

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 106
  • Radlagerung Roller bearing
IPT 125 PBX

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
IPF 125 PBX

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
IP 125 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 106
  • Radlagerung Nylon plain bearing

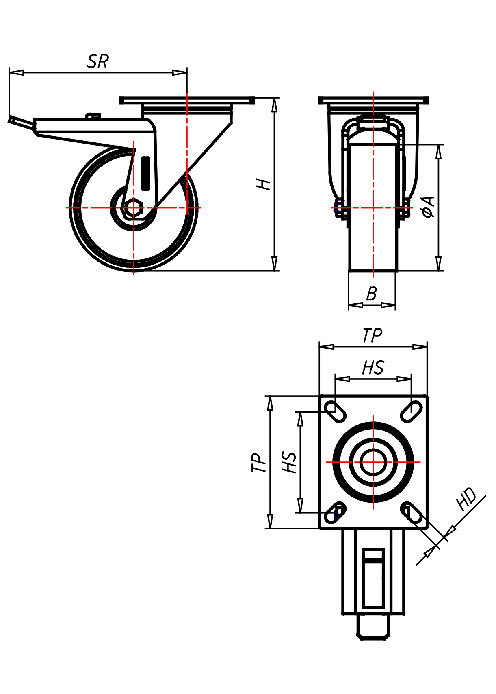

IPT 125 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
IPF 125 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing

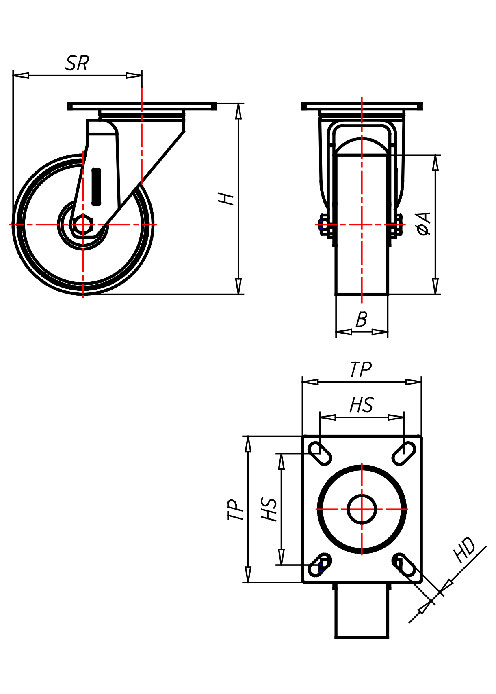

IPS 125 PBX

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 106
  • Radlagerung Roller bearing
IPST 125 PBX

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPSF 125 PBX

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IPS 125 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 107
  • Radlagerung Nylon plain bearing
IPST 125 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPSF 125 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 450
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IPSS 126 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 172
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 113
  • Radlagerung Nylon plain bearing
IPSST 126 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 172
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPSSF 126 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 125x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 172
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Nylon plain bearing
IP 150 PBX

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 126
  • Radlagerung Roller bearing
IPT 150 PBX

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPF 150 PBX

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IP 150 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 126
  • Radlagerung Nylon plain bearing
IPT 150 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPF 150 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IPS 151 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 202
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 135
  • Radlagerung Nylon plain bearing
IPST 151 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 202
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPSF 151 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 150x45

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 202
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Nylon plain bearing
IP 175 PBX

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 175x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 236
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 149
  • Radlagerung Roller bearing
IPT 175 PBX

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 175x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 236
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing

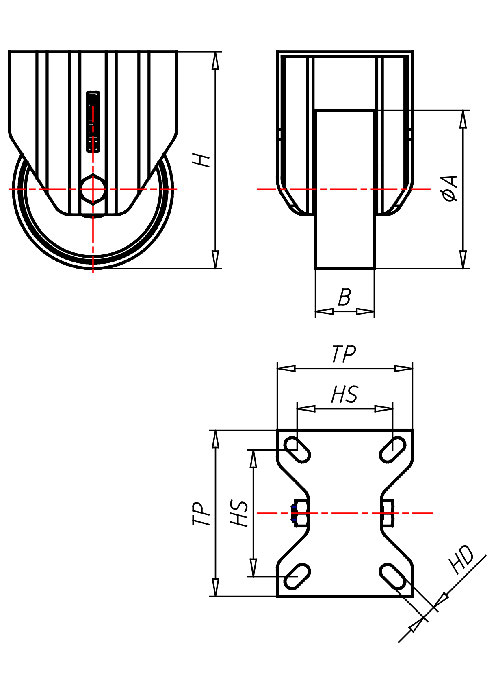

IPF 175 PBX

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 175x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 236
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Roller bearing
IP 175 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 175x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 236
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 149
  • Radlagerung Nylon plain bearing
IPT 175 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 175x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 236
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPF 175 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 175x40

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 500
  • Bauhöhe H mm 236
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Nylon plain bearing
IP 200 PBX

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 162
  • Radlagerung Roller bearing
IPT 200 PBX

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPF 200 PBX

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Roller bearing
IP 200 P

Stainless Steel Series IP, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 162
  • Radlagerung Nylon plain bearing
IPT 200 P

Stainless Steel Series IP, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPF 200 P

Stainless Steel Series IP, Wheel P

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel P

Technische Daten

  • Tragkraft kg 600
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Nylon plain bearing

Suitable accessories
