Stainless Steel Series IP, Wheel RN

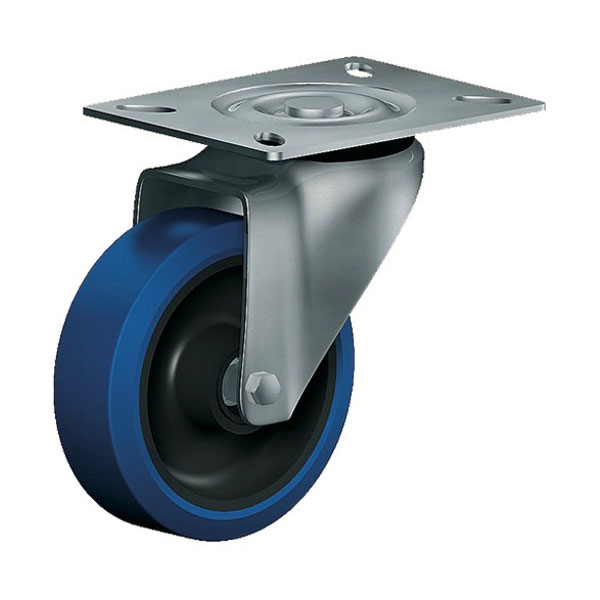

  • Swivel Castor Stainless Steel Series IP, Wheel RN

    SWIVEL CASTOR

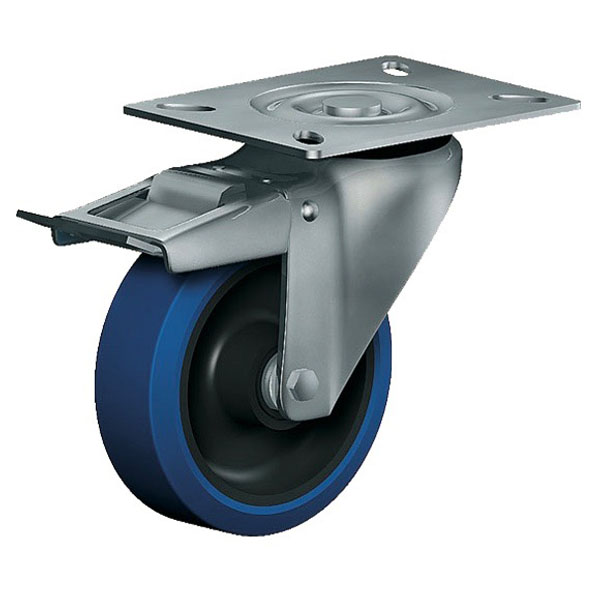

  • Swivel Castor With Total Lock Stainless Steel Series IP, Wheel RN

    SWIVEL CASTOR WITH TOTAL LOCK

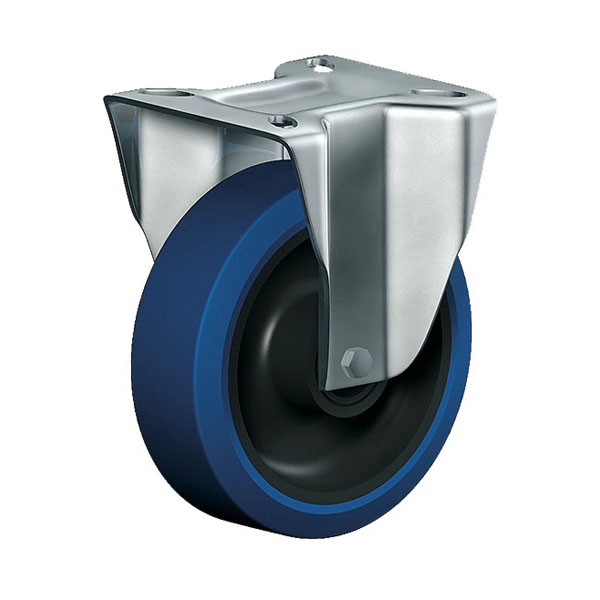

  • Fixed Castor Stainless Steel Series IP, Wheel RN

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series IP, Wheel RNEdelstahl

PDF product sheet
  • max 480 kg
  • -20 °C - +70 °C
  • 100-250 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series IP, Wheel RN

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series IP, Wheel RN

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series IP, Wheel RN

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • excellent running performance
  • very silent in motion
  • low rolling resistance
  • good abrasion resistance
  • corrosion resistant
  • non-marking

Applications

  • Wet environments
  • Dollies

Material

Material

Elastic solid rubber tyre, blue, 73±5 Shore A, vulcanised on wheel centre

High quality nylon wheel centre, black

Fork material

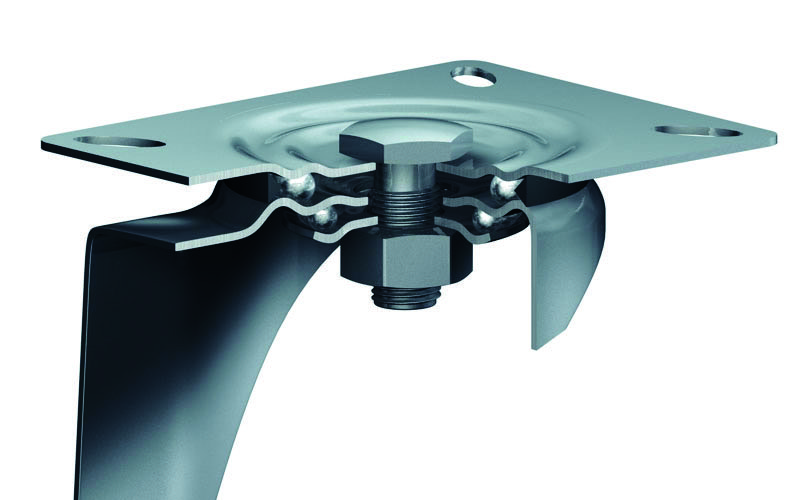

Finish: Polished stainless steel swivel fork AISI 304, stainless steel Kingpin AISI 303 riveted to the top plate, stainless steel balls AISI 420, thermoplastic dust seal (water proof), self-locking stainless steel nut, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

42 of 42 items in this series are displayed.

Article number Articel type Price € QTY
IP 100 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 94
  • Radlagerung Roller bearing
IPT 100 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
IPF 100 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
IP 100 RN

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 94
  • Radlagerung Nylon plain bearing
IPT 100 RN

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing

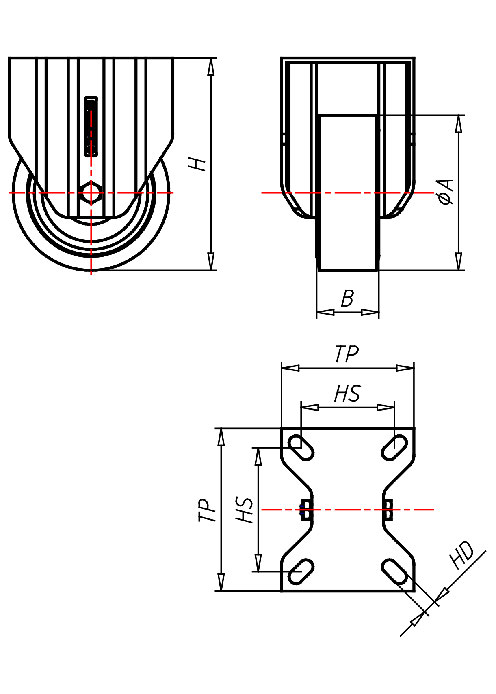

IPF 100 RN

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
IPS 100 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 94
  • Radlagerung Roller bearing

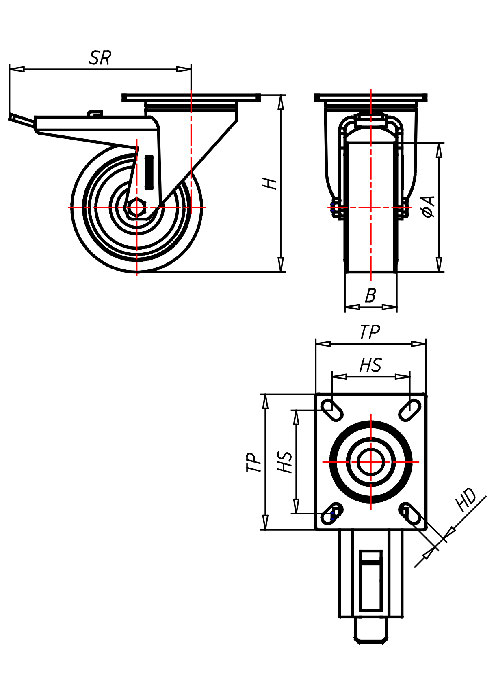

IPST 100 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPSF 100 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IPS 100 RN

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 94
  • Radlagerung Nylon plain bearing
IPST 100 RN

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPSF 100 RN

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 137
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IP 125 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 106
  • Radlagerung Roller bearing
IPT 125 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
IPF 125 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing

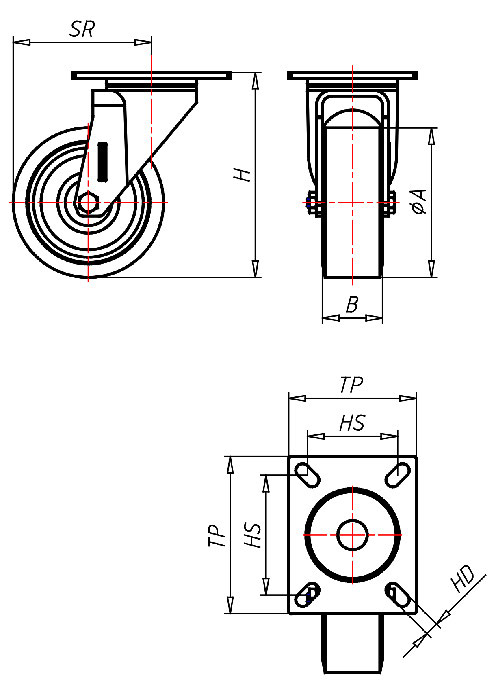

IP 125 RN

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 106
  • Radlagerung Nylon plain bearing
IPT 125 RN

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
IPF 125 RN

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
IPS 125 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 106
  • Radlagerung Roller bearing
IPST 125 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPSF 125 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IPS 125 RN

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 106
  • Radlagerung Nylon plain bearing
IPST 125 RN

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPSF 125 RN

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 180
  • Bauhöhe H mm 162
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IP 150 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 240
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 126
  • Radlagerung Roller bearing
IPT 150 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 240
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPF 150 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 240
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
IP 150 RN

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 240
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 126
  • Radlagerung Nylon plain bearing
IPT 150 RN

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 240
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 170
  • Radlagerung Nylon plain bearing
IPF 150 RN

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 240
  • Bauhöhe H mm 192
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IP 180 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 180x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 238
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 152
  • Radlagerung Roller bearing
IPT 180 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 180x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 238
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPF 180 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 180x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 350
  • Bauhöhe H mm 238
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Roller bearing
IP 200 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 162
  • Radlagerung Roller bearing
IPT 200 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 170
  • Radlagerung Roller bearing
IPF 200 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 400
  • Bauhöhe H mm 248
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Roller bearing
IP 250 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 250x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 303
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 196
  • Radlagerung Roller bearing
IPT 250 RNBX

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 250x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 303
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 196
  • Radlagerung Roller bearing
IPF 250 RNBX

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 250x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 303
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Roller bearing
IP 250 RN

Stainless Steel Series IP, Wheel RN

Swivel castor Wheel-∅ x width [mm]: 250x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 303
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 196
  • Radlagerung Nylon plain bearing
IPT 250 RN

Stainless Steel Series IP, Wheel RN

Swivel castor with total lock Wheel-∅ x width [mm]: 250x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 303
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Störkreisradius SR mm 196
  • Radlagerung Nylon plain bearing
IPF 250 RN

Stainless Steel Series IP, Wheel RN

Fixed castor Wheel-∅ x width [mm]: 250x50

Stainless Steel Series IP, Wheel RN

Technische Daten

  • Tragkraft kg 480
  • Bauhöhe H mm 303
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 13
  • Radlagerung Nylon plain bearing

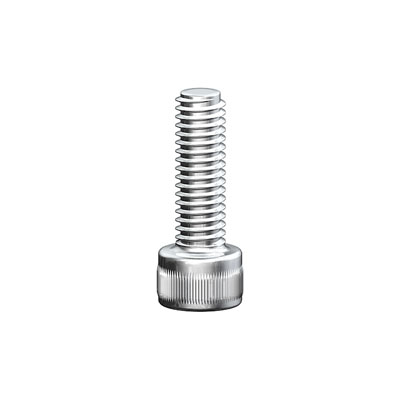

Suitable accessories
