Stainless Steel Series XD, Wheel PS

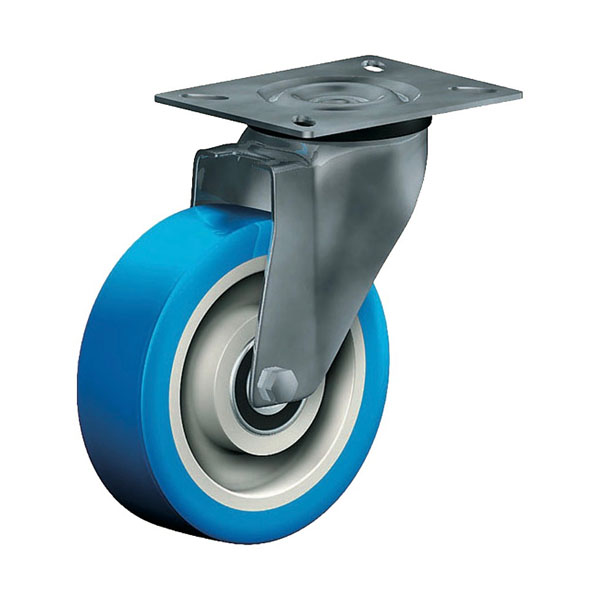

  • Swivel Castor Stainless Steel Series XD, Wheel PS

    SWIVEL CASTOR

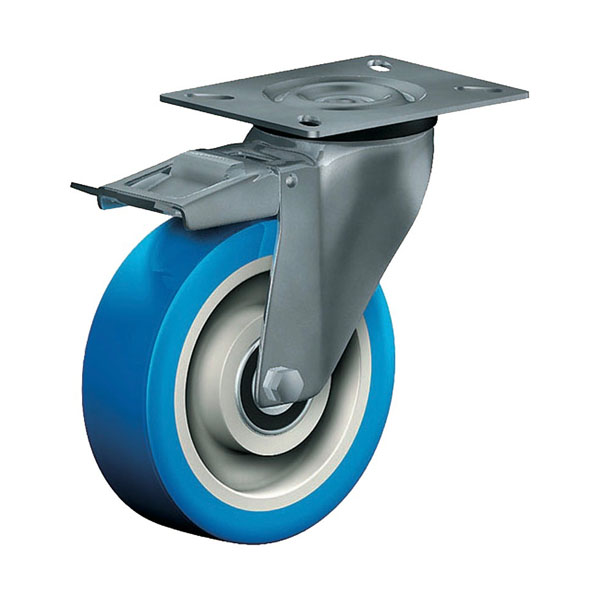

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel PS

    SWIVEL CASTOR WITH TOTAL LOCK

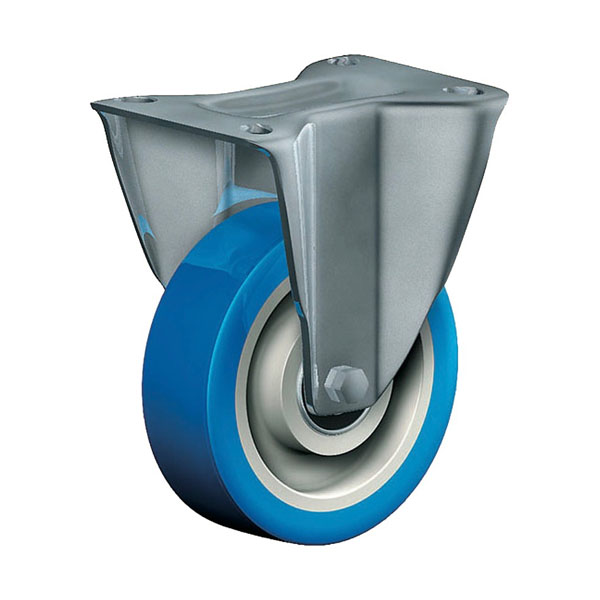

  • Fixed Castor Stainless Steel Series XD, Wheel PS

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XD, Wheel PSEdelstahl

PDF product sheet
  • max 370 kg
  • -30 °C - +80 °C
  • 100-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series XD, Wheel PS

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel PS

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series XD, Wheel PS

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • very silent in motion
  • low rolling resistance
  • high abrasion and tear resistance
  • high resistance to shocks
  • easy to clean
  • good chemical resistance

Applications

  • Kitchen equipment
  • Mechatronik
  • Wet environments
  • Dollies

Material

Material

Cast soft polyurethane coating,
87±3 Shore A
High quality nylon wheel centre

Fork material

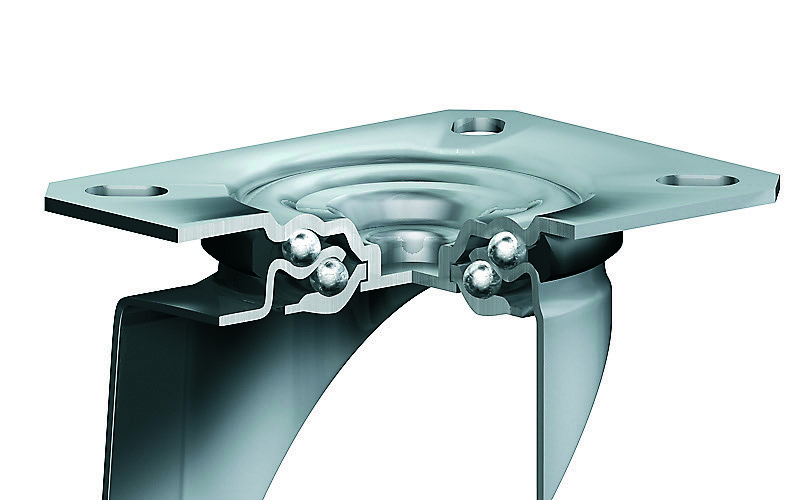

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, with dust protection ring, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

18 of 18 items in this series are displayed.

Article number Articel type Price € QTY

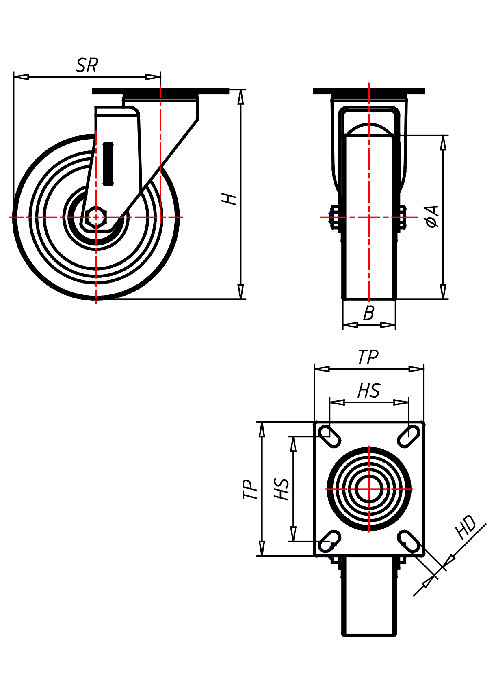

XS 100 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 129
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 98
  • Radlagerung Roller bearing

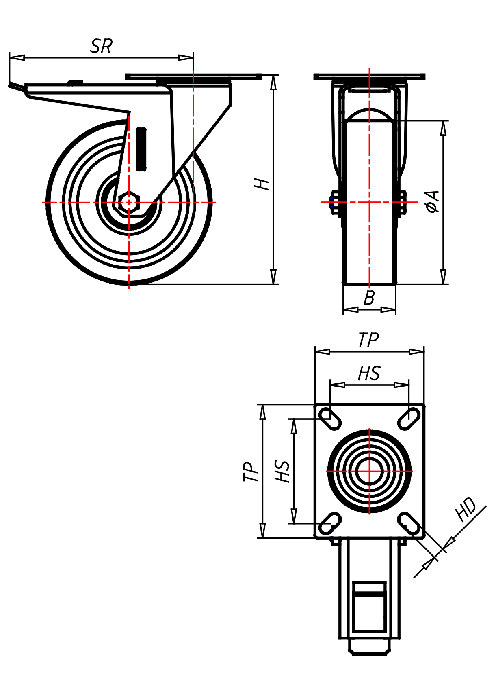

XST 100 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 100x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 129
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XSF 100 PSBX

Stainless Steel Series XD, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 129
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XS 125 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XST 125 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XSF 125 PSBX

Stainless Steel Series XD, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XSS 125 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XSST 125 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XSSF 125 PSBX

Stainless Steel Series XD, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
XL 150 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 128
  • Radlagerung Roller bearing
XLT 150 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XLF 150 PSBX

Stainless Steel Series XD, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XD 150 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 128
  • Radlagerung Roller bearing
XDT 150 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XF 150 PSBX

Stainless Steel Series XD, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
XD 200 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing
XDT 200 PSBX

Stainless Steel Series XD, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 168
  • Radlagerung Roller bearing

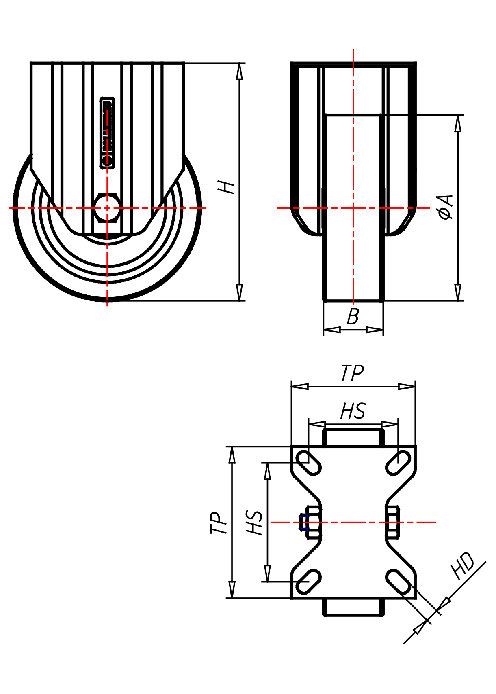

XF 200 PSBX

Stainless Steel Series XD, Wheel PS

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel PS

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing

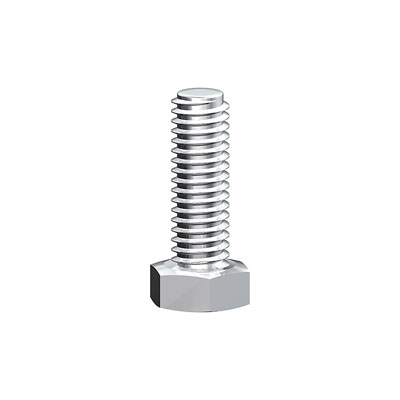

Suitable accessories
