Stainless Steel Series XD, Wheel AL

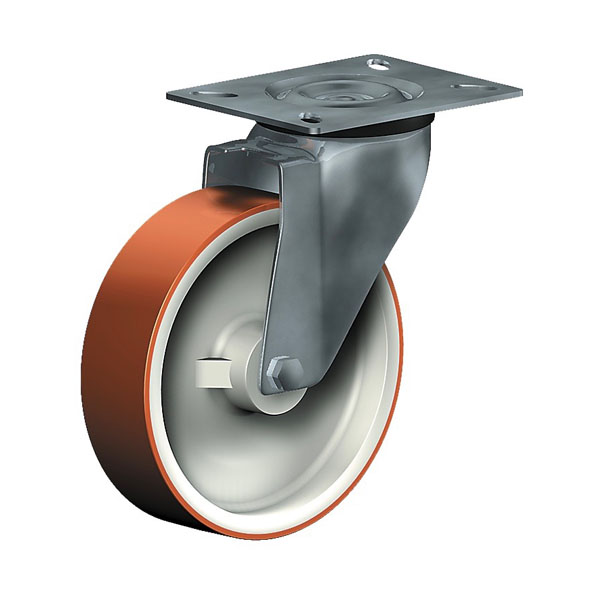

  • Swivel Castor Stainless Steel Series XD, Wheel AL

    SWIVEL CASTOR

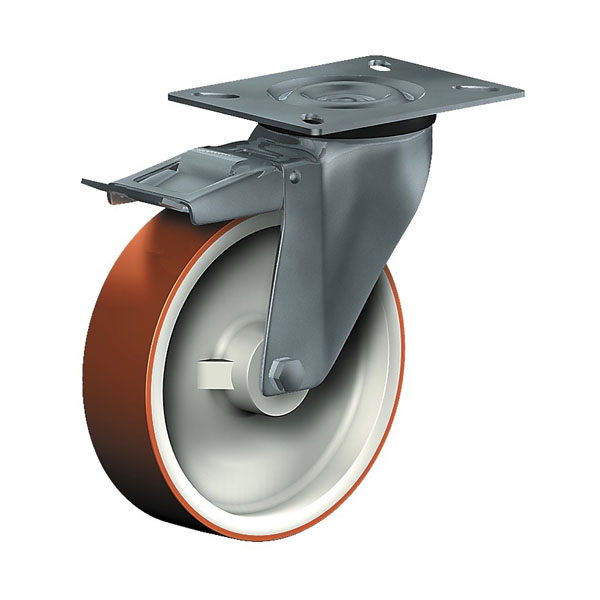

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel AL

    SWIVEL CASTOR WITH TOTAL LOCK

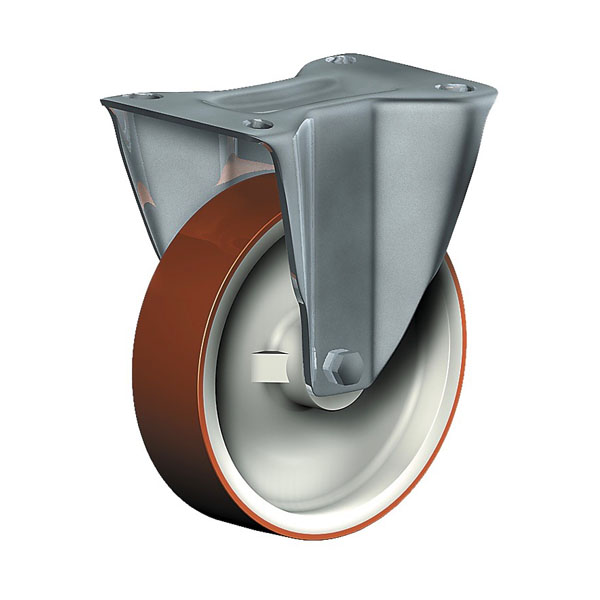

  • Fixed Castor Stainless Steel Series XD, Wheel AL

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XD, Wheel ALEdelstahl

PDF product sheet
  • max 370 kg
  • -30 °C - +80 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series XD, Wheel AL

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel AL

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series XD, Wheel AL

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • low rolling resistance
  • high abrasion and tear resistance
  • easy to clean
  • good chemical resistance

Applications

  • Kitchen equipment
  • Mechatronik
  • Wet environments
  • Dollies

Material

Material

Coated in injected polyurethane, 58±3 Shore D
High quality nylon wheel centre

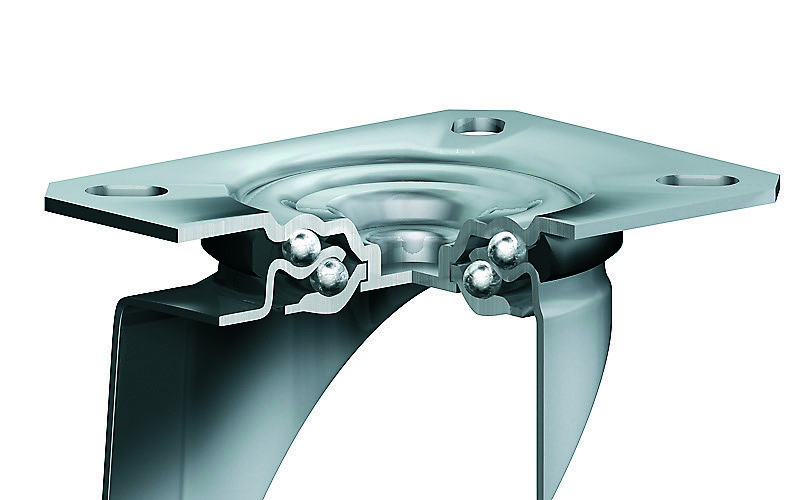

Fork material

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, with dust protection ring, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

45 of 45 items in this series are displayed.

Article number Articel type Price € QTY
XD 80 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 80x25

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 74
  • Radlagerung Nylon plain bearing

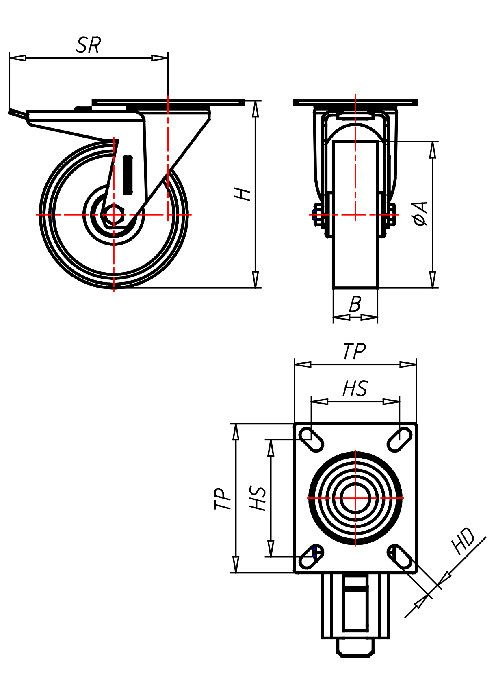

XDT 80 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 80x25

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XF 80 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 80x25

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XD 100 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 88
  • Radlagerung Roller bearing
XDT 100 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XF 100 ALBX

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XD 100 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 88
  • Radlagerung Nylon plain bearing
XDT 100 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XF 100 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XD 125 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 104
  • Radlagerung Roller bearing
XDT 125 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing

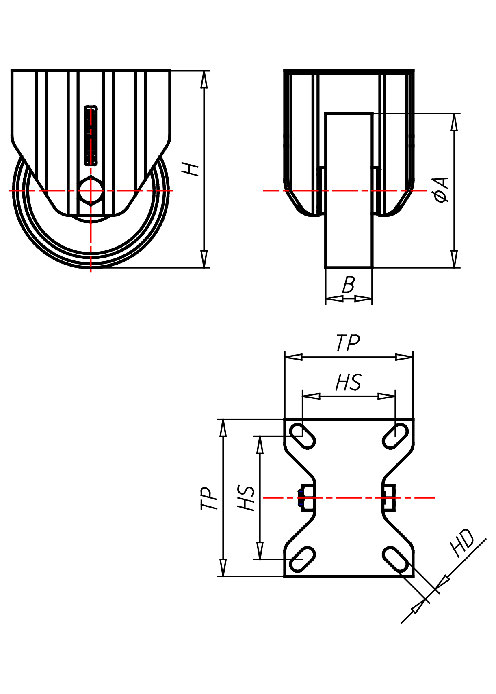

XF 125 ALBX

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XS 125 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XST 125 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XSF 125 ALBX

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XSS 125 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XSST 125 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XSSF 125 ALBX

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
XD 125 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 104
  • Radlagerung Nylon plain bearing
XDT 125 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XF 125 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XS 125 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 113
  • Radlagerung Nylon plain bearing
XST 125 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XSF 125 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XSS 125 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 113
  • Radlagerung Nylon plain bearing
XSST 125 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XSSF 125 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 160
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
XD 150 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 128
  • Radlagerung Roller bearing
XDT 150 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XF 150 ALBX

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing
XL 150 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 128
  • Radlagerung Roller bearing
XLT 150 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XLF 150 ALBX

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Roller bearing
XD 150 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 128
  • Radlagerung Nylon plain bearing
XDT 150 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XF 150 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
XL 150 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 128
  • Radlagerung Nylon plain bearing
XLT 150 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XLF 150 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XD 200 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing
XDT 200 ALBX

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 168
  • Radlagerung Roller bearing
XF 200 ALBX

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Roller bearing

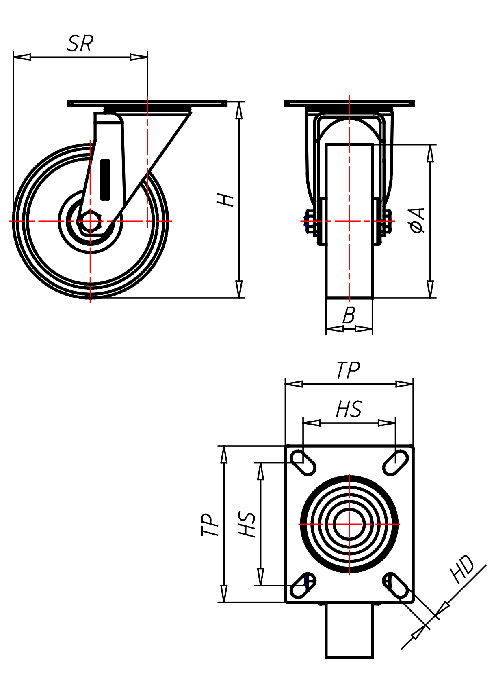

XD 200 AL

Stainless Steel Series XD, Wheel AL

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 161
  • Radlagerung Nylon plain bearing
XDT 200 AL

Stainless Steel Series XD, Wheel AL

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 168
  • Radlagerung Nylon plain bearing
XF 200 AL

Stainless Steel Series XD, Wheel AL

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel AL

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing

Suitable accessories
