Stainless Steel Series XD, Wheel PF

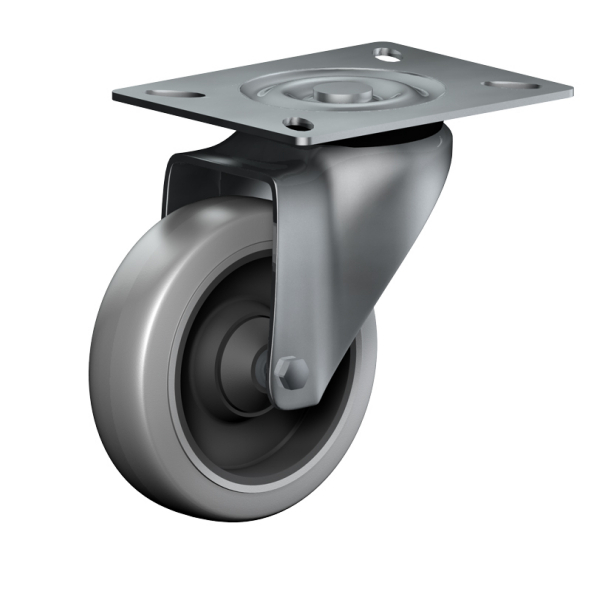

  • Swivel Castor Stainless Steel Series XD, Wheel PF

    SWIVEL CASTOR

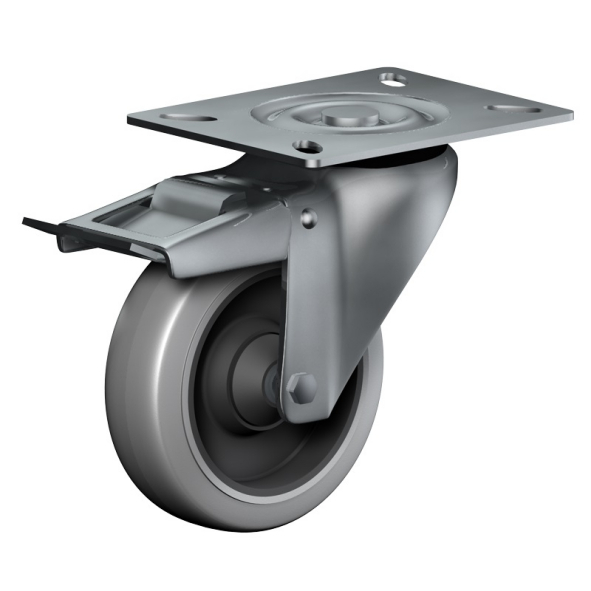

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel PF

    SWIVEL CASTOR WITH TOTAL LOCK

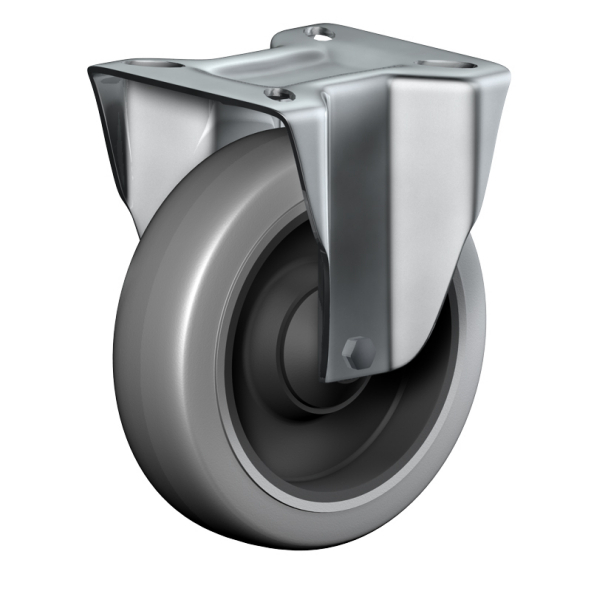

  • Fixed Castor Stainless Steel Series XD, Wheel PF

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XD, Wheel PFEdelstahl

PDF product sheet
  • max 150 kg
  • -20 °C - +80 °C
  • 80-125 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series XD, Wheel PF

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel PF

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series XD, Wheel PF

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • low rolling resistance
  • non-marking
  • high resistance to shocks
  • good chemical resistance

Applications

  • Kitchen equipment
  • Refuse containers

Material

Material

Elastic Performa, grey, 65±5 Shore A
High quality nylon wheel centre

Fork material

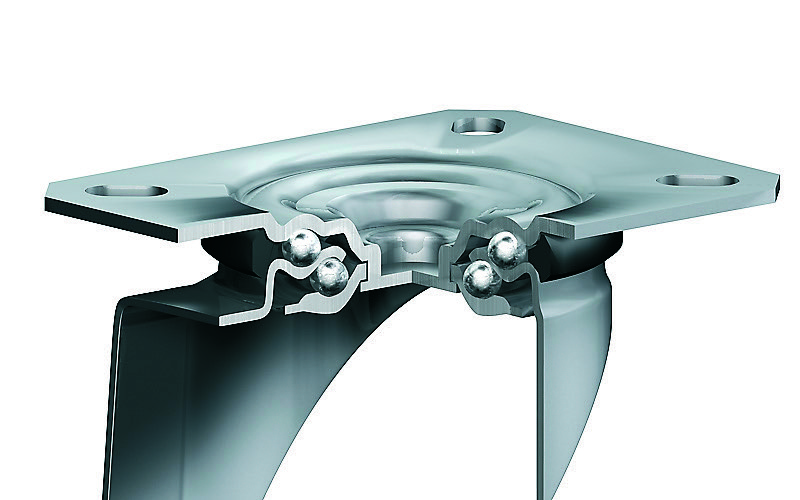

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, with dust protection ring, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

9 of 9 items in this series are displayed.

Article number Articel type Price € QTY
XD 80 PFKX

Stainless Steel Series XD, Wheel PF

Swivel castor Wheel-∅ x width [mm]: 80x32

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 75
  • Radlagerung INOX Ball bearing
XDT 80 PFKX

Stainless Steel Series XD, Wheel PF

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung INOX Ball bearing
XF 80 PFKX

Stainless Steel Series XD, Wheel PF

Fixed castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung INOX Ball bearing
XD 100 PFKX

Stainless Steel Series XD, Wheel PF

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 87
  • Radlagerung INOX Ball bearing
XDT 100 PFKX

Stainless Steel Series XD, Wheel PF

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung INOX Ball bearing
XF 100 PFKX

Stainless Steel Series XD, Wheel PF

Fixed castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung INOX Ball bearing
XD 125 PFKX

Stainless Steel Series XD, Wheel PF

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 104
  • Radlagerung INOX Ball bearing
XDT 125 PFKX

Stainless Steel Series XD, Wheel PF

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung INOX Ball bearing
XF 125 PFKX

Stainless Steel Series XD, Wheel PF

Fixed castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series XD, Wheel PF

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung INOX Ball bearing
