Stainless Steel Series XD, Wheel D

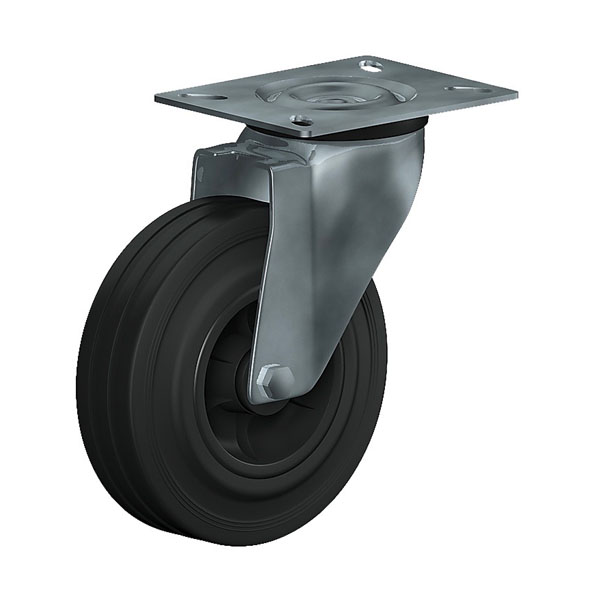

  • Swivel Castor Stainless Steel Series XD, Wheel D

    SWIVEL CASTOR

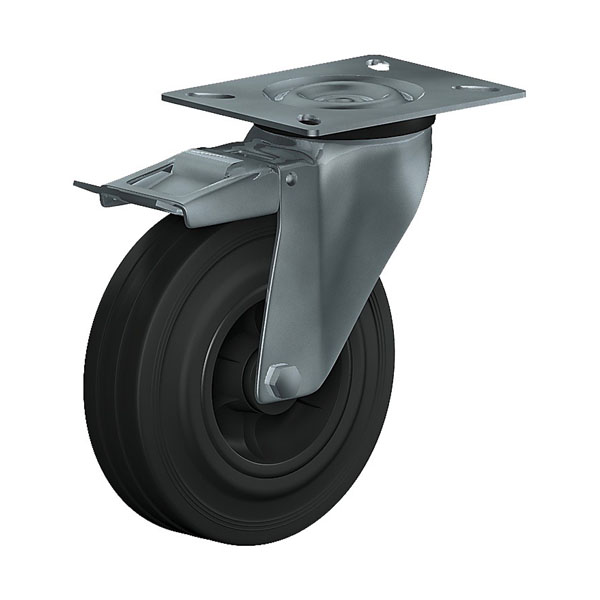

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel D

    SWIVEL CASTOR WITH TOTAL LOCK

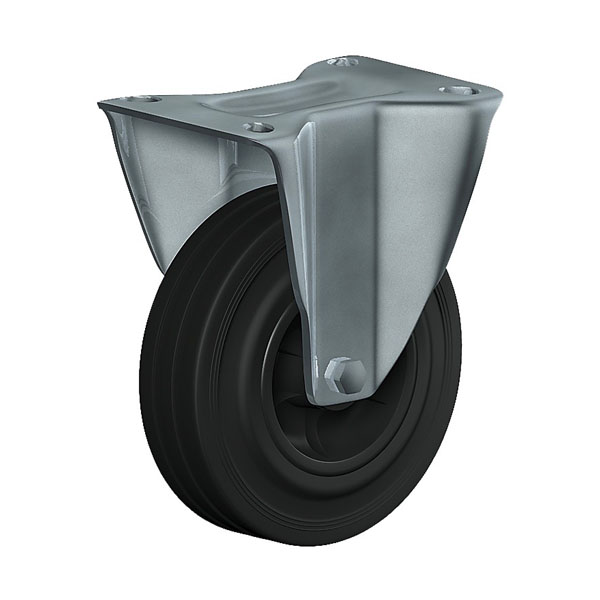

  • Fixed Castor Stainless Steel Series XD, Wheel D

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XD, Wheel DEdelstahl

PDF product sheet
  • max 205 kg
  • -20 °C - +60 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Stainless Steel Series XD, Wheel D

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XD, Wheel D

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series XD, Wheel D

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

Advantages

  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Wet environments
  • Dollies

Material

Material

Tread: standard rubber tyre black, 85±5 Shore A


Quality nylon wheel centre

Fork material

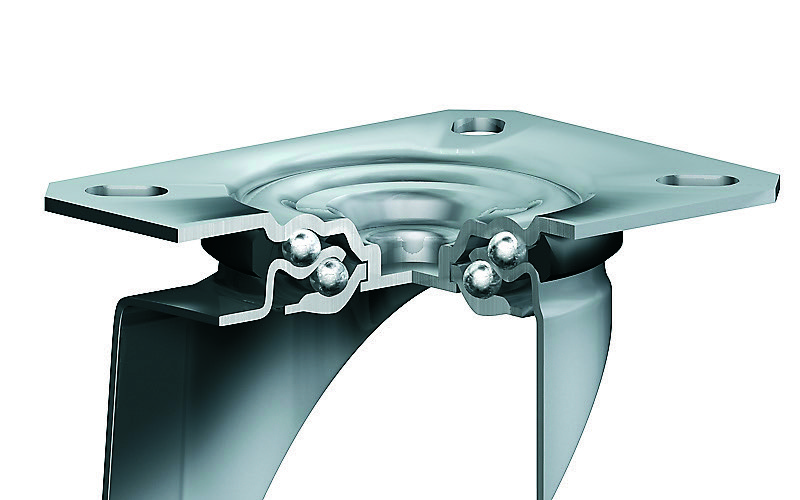

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, with dust protection ring, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

18 of 18 items in this series are displayed.

Article number Articel type Price € QTY
XD 80 D

Stainless Steel Series XD, Wheel D

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 75
  • Radlagerung Nylon plain bearing
XDT 80 D

Stainless Steel Series XD, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XF 80 D

Stainless Steel Series XD, Wheel D

Fixed castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 106
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XD 100 D

Stainless Steel Series XD, Wheel D

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 88
  • Radlagerung Nylon plain bearing
XDT 100 D

Stainless Steel Series XD, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XF 100 D

Stainless Steel Series XD, Wheel D

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 128
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XD 125 D

Stainless Steel Series XD, Wheel D

Swivel castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 104
  • Radlagerung Nylon plain bearing
XDT 125 D

Stainless Steel Series XD, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XF 125 D

Stainless Steel Series XD, Wheel D

Fixed castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 154
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing

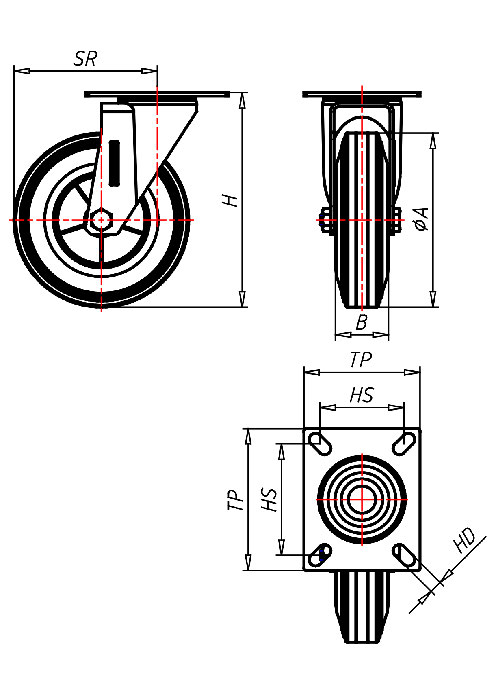

XD 150 D

Stainless Steel Series XD, Wheel D

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 128
  • Radlagerung Nylon plain bearing

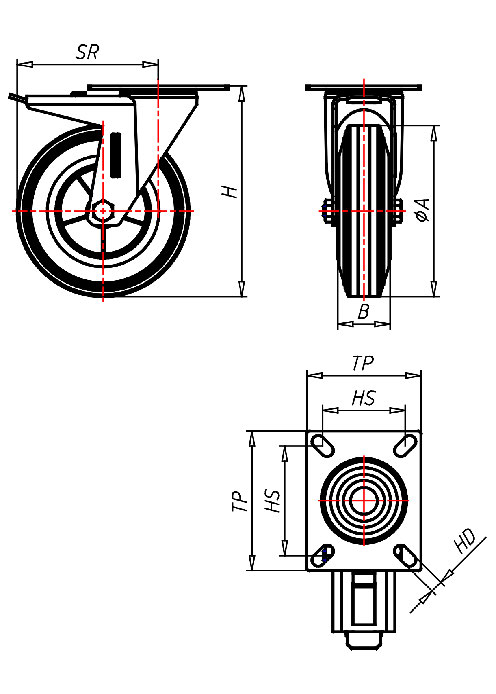

XDT 150 D

Stainless Steel Series XD, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing

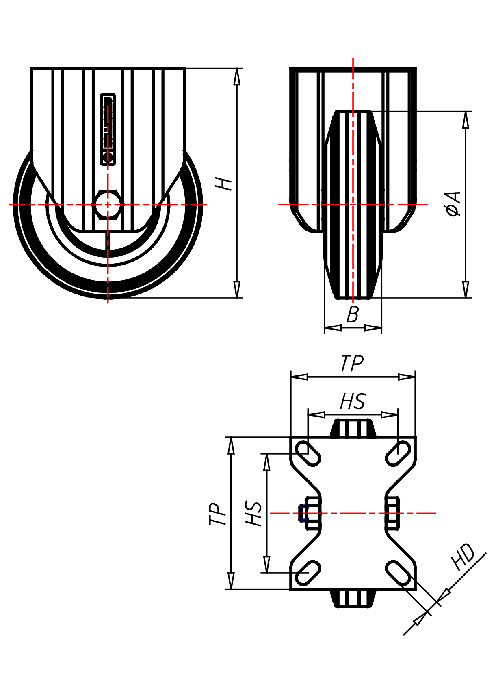

XF 150 D

Stainless Steel Series XD, Wheel D

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
XL 150 D

Stainless Steel Series XD, Wheel D

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 128
  • Radlagerung Nylon plain bearing
XLT 150 D

Stainless Steel Series XD, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XLF 150 D

Stainless Steel Series XD, Wheel D

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Plattengröße TP mm 102x83
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
XD 200 D

Stainless Steel Series XD, Wheel D

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 161
  • Radlagerung Nylon plain bearing
XDT 200 D

Stainless Steel Series XD, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 168
  • Radlagerung Nylon plain bearing
XF 200 D

Stainless Steel Series XD, Wheel D

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XD, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 240
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
