Institutional Series 315P, Wheel P
  • Swivel Castor Institutional Series 315P, Wheel P

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Institutional Series 315P, Wheel P

    SWIVEL CASTOR WITH TOTAL LOCK

  • Fixed Castor Institutional Series 315P, Wheel P

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Institutional Series 315P, Wheel P

PDF product sheet
  • max 80 kg
  • -30 °C - +70 °C
  • 50-100 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +
    shock proof
  • ++
    floor protective
  • ++
    weather proof

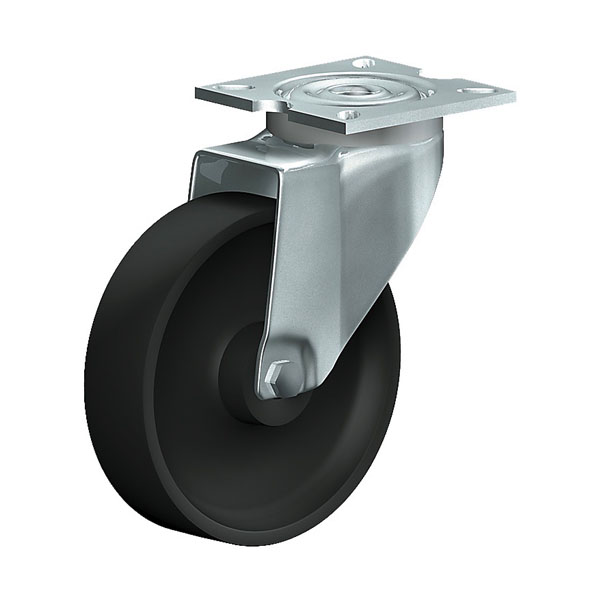

  • Swivel Castor Institutional Series 315P, Wheel P

    Swivel Castor

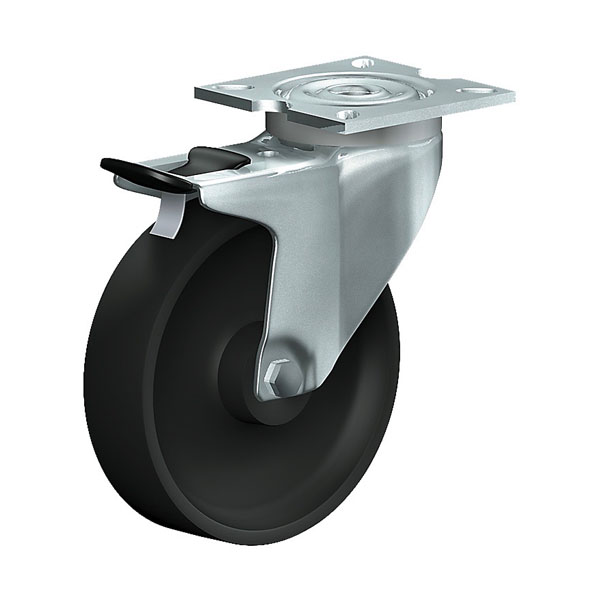

  • Swivel Castor With Total Lock Institutional Series 315P, Wheel P

    Swivel Castor With Total Lock

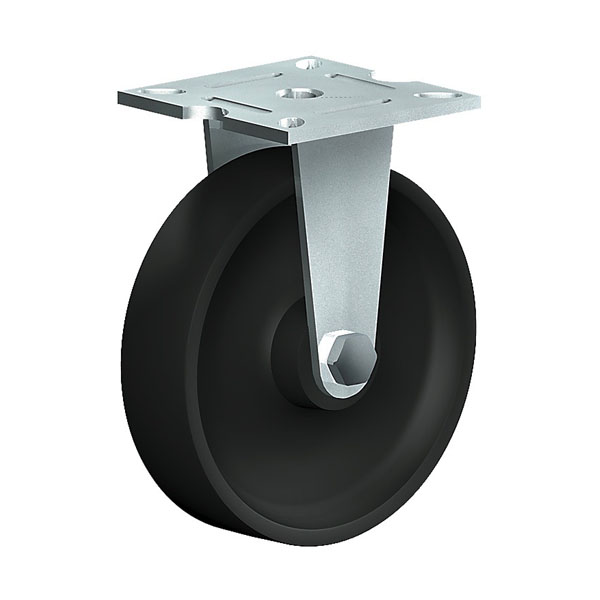

  • Fixed Castor Institutional Series 315P, Wheel P

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Metal-Technology
  • Portable bar units
  • Workshops
  • Laboratory equipment
  • Sidetables
  • Book carts
  • Instrument stands
  • Carpentry
  • Health-Professionals
  • School furniture

Material

Material

Casted high quality nylon wheel

Fork material

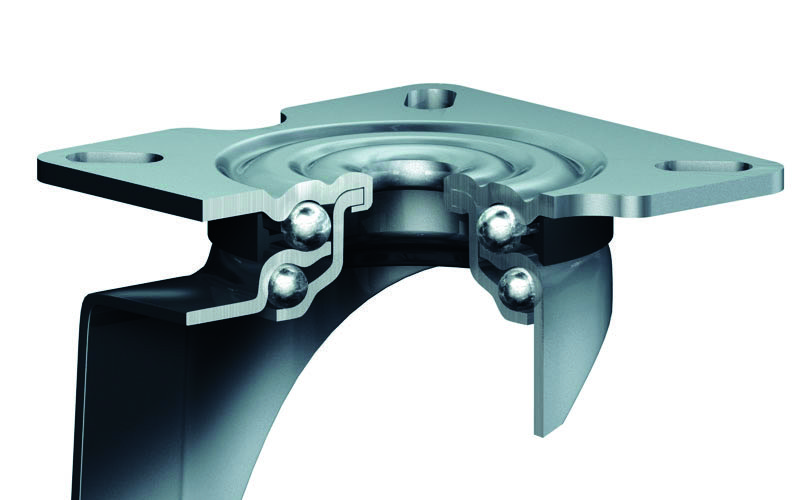

Finish: zinc plated and chromate coated, large double ball bearing – Ø 46 mm, revited,
dust protection ring, wheel axle bolted and locked, wheel-/ total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

9 of 9 items in this series are displayed.

Article number Articel type Price € QTY
315 PT 50 P

Institutional Series 315P, Wheel P

Swivel castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 73
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Störkreisradius SR mm 51
  • Radlagerung Nylon plain bearing
316 PT 50 P

Institutional Series 315P, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 73
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Störkreisradius SR mm 73
  • Radlagerung Nylon plain bearing
670 PT 50 P

Institutional Series 315P, Wheel P

Fixed castor Wheel-∅ x width [mm]: 50x18

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 73
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Radlagerung Nylon plain bearing
315 PT 75 P

Institutional Series 315P, Wheel P

Swivel castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 97
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Störkreisradius SR mm 68
  • Radlagerung Nylon plain bearing
316 PT 75 P

Institutional Series 315P, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 97
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Störkreisradius SR mm 83
  • Radlagerung Nylon plain bearing
670 PT 75 P

Institutional Series 315P, Wheel P

Fixed castor Wheel-∅ x width [mm]: 75x25

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 70
  • Bauhöhe H mm 97
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Radlagerung Nylon plain bearing
315 PT 100 P

Institutional Series 315P, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x24

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 121
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Störkreisradius SR mm 85
  • Radlagerung Nylon plain bearing
316 PT 100 P

Institutional Series 315P, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 100x24

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 121
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Störkreisradius SR mm 96
  • Radlagerung Nylon plain bearing
670 PT 100 P

Institutional Series 315P, Wheel P

Fixed castor Wheel-∅ x width [mm]: 100x24

Institutional Series 315P, Wheel P

Technische Daten

  • Tragkraft kg 80
  • Bauhöhe H mm 121
  • Plattengröße TP mm 58x58
  • Lochabstand HS mm 40x40/42x42
  • Loch-Ø HD mm 6,2
  • Radlagerung Nylon plain bearing
