Institutional Series 320R, Wheel P
  • Swivel Castor Institutional Series 320R, Wheel P

    SWIVEL CASTOR

  • Swivel Castor With Wheel Brake Institutional Series 320R, Wheel P

    SWIVEL CASTOR WITH WHEEL BRAKE

Select the required versions in order to show them already filtered in the following table.

Institutional Series 320R, Wheel P

PDF product sheet
  • max 90 kg
  • -30 °C - +70 °C
  • 50-75 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • +
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 320R, Wheel P

    Swivel Castor

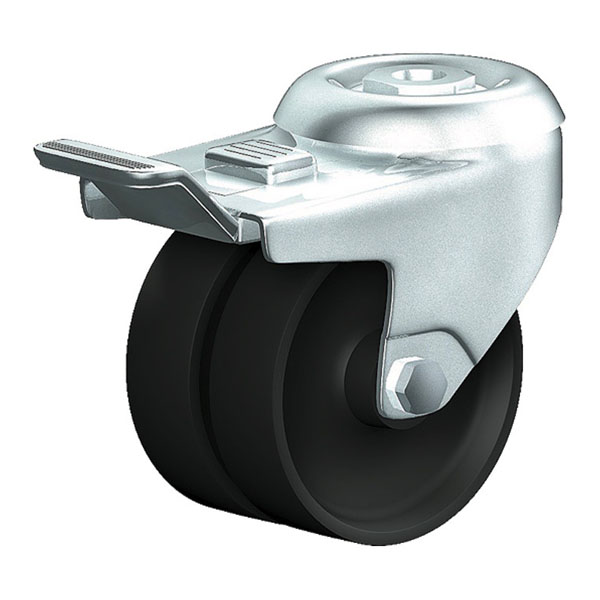

  • Swivel Castor With Wheel Brake Institutional Series 320R, Wheel P

    Swivel Castor With Wheel Brake

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Metal-Technology
  • Portable bar units
  • Workshops
  • Room service carts
  • Laboratory equipment
  • Book carts
  • Instrument stands
  • Carpentry
  • School furniture

Material

Material

Casted high quality nylon wheel

Fork material

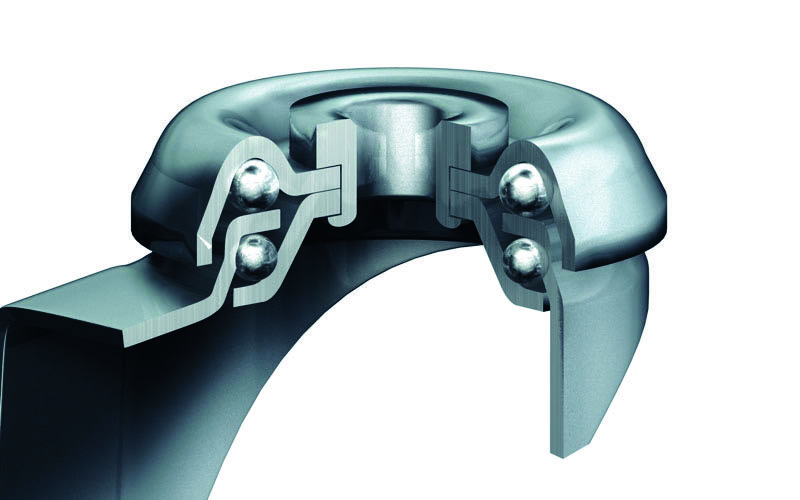

Finish: zinc plated and chromate coated, large double ball bearing, revited, wheel axle bolted and locked, wheel-/total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

4 of 4 items in this series are displayed.

Article number Articel type Price € QTY
320 RÜ 50 P

Institutional Series 320R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 50x18+18

Institutional Series 320R, Wheel P

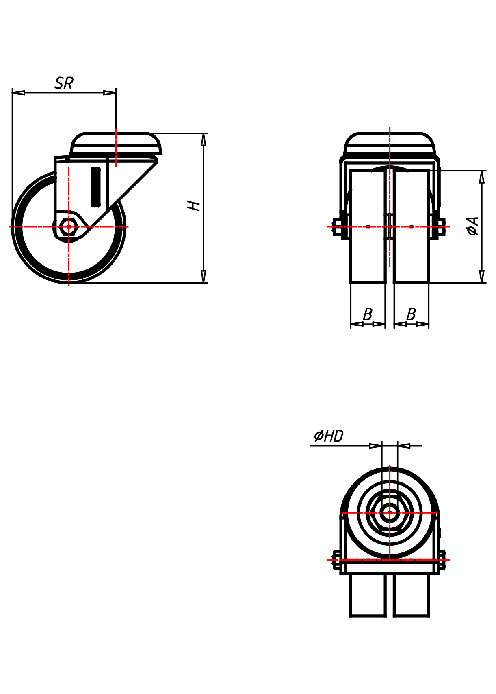

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 53
  • Radlagerung Nylon plain bearing
321 RÜ 50 P

Institutional Series 320R, Wheel P

Swivel castor with wheel brake Wheel-∅ x width [mm]: 50x18+18

Institutional Series 320R, Wheel P

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 78
  • Radlagerung Nylon plain bearing
320 RÜ 75 P

Institutional Series 320R, Wheel P

Swivel castor Wheel-∅ x width [mm]: 75x25+25

Institutional Series 320R, Wheel P

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 69
  • Radlagerung Nylon plain bearing
321 RÜ 75 P

Institutional Series 320R, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25+25

Institutional Series 320R, Wheel P

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 106
  • Radlagerung Nylon plain bearing
