Institutional Series 320R, Wheel EL

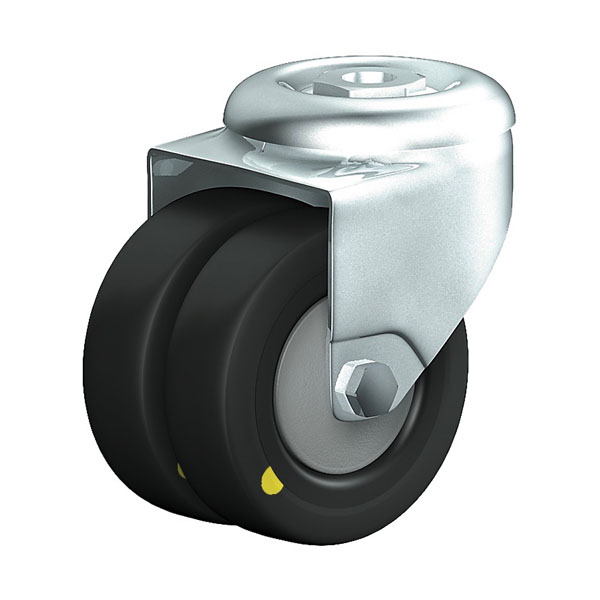

  • Swivel Castor Institutional Series 320R, Wheel EL

    SWIVEL CASTOR

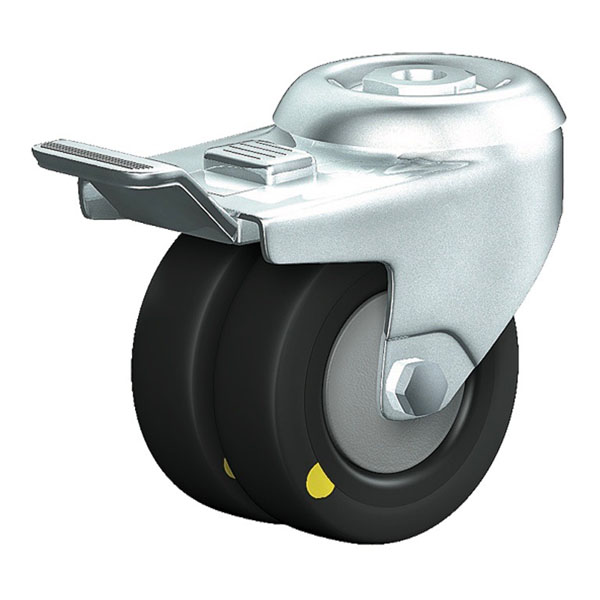

  • Swivel Castor With Wheel Brake Institutional Series 320R, Wheel EL

    SWIVEL CASTOR WITH WHEEL BRAKE

Select the required versions in order to show them already filtered in the following table.

Institutional Series 320R, Wheel ELelectrically conductive

PDF product sheet
  • max 90 kg
  • -20 °C - +60 °C
  • 50-75 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • +
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Institutional Series 320R, Wheel EL

    Swivel Castor

  • Swivel Castor With Wheel Brake Institutional Series 320R, Wheel EL

    Swivel Castor With Wheel Brake

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

Advantages

  • electrically conductive
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Metal-Technology
  • Portable bar units
  • Workshops
  • Room service carts
  • Laboratory equipment
  • Book carts
  • Instrument stands
  • Carpentry
  • School furniture

Material

Material

rubber tyre, electrically
conductive, volume resistance value <104Ω
nylon rim, conductive, volume resistance value <104Ω

Fork material

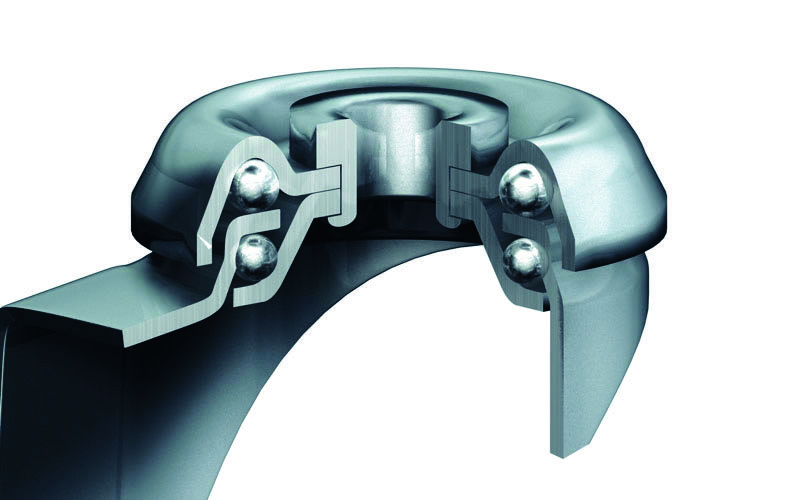

Finish: zinc plated and chromate coated, large double ball bearing, revited, wheel axle bolted and locked, wheel-/total lock – spring stainless steel

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

4 of 4 items in this series are displayed.

Article number Articel type Price € QTY
320 RÜ 50 EL

Institutional Series 320R, Wheel EL

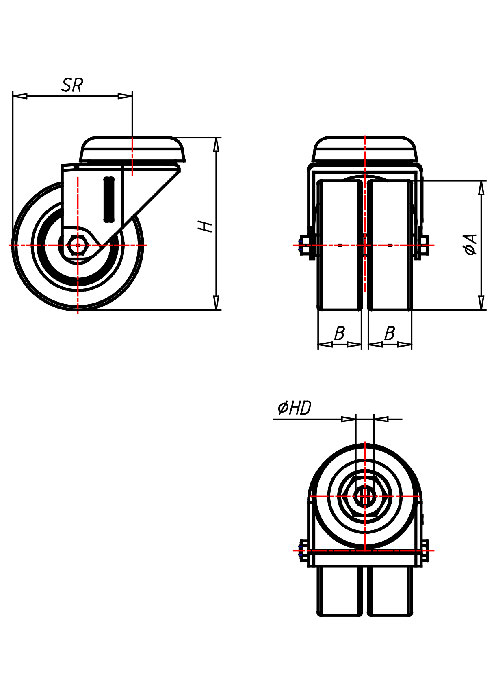

Swivel castor Wheel-∅ x width [mm]: 50x18+18

Institutional Series 320R, Wheel EL

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 53
  • Radlagerung Ball bearing
321 RÜ 50 EL

Institutional Series 320R, Wheel EL

Swivel castor with wheel brake Wheel-∅ x width [mm]: 50x18+18

Institutional Series 320R, Wheel EL

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 70
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 78
  • Radlagerung Ball bearing
320 RÜ 75 EL

Institutional Series 320R, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 75x25+25

Institutional Series 320R, Wheel EL

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 69
  • Radlagerung Ball bearing
321 RÜ 75 EL

Institutional Series 320R, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25+25

Institutional Series 320R, Wheel EL

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 100
  • Loch-Ø HD mm 10,5
  • Störkreisradius SR mm 106
  • Radlagerung Ball bearing
