Stainless Steel Series IN, Wheel D

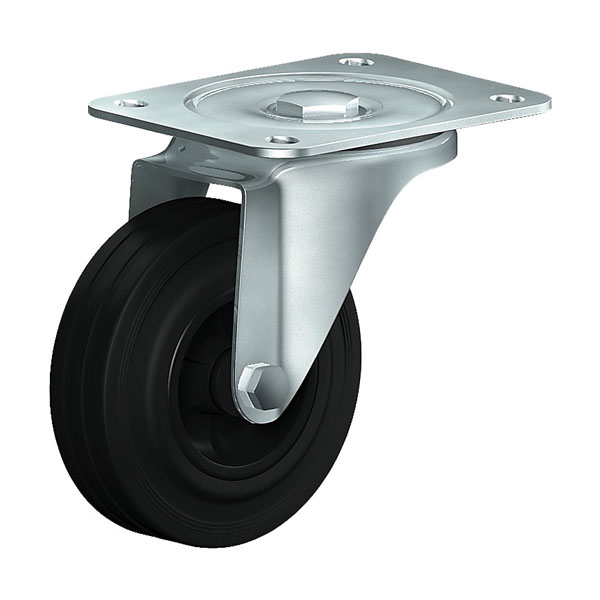

  • Swivel Castor Stainless Steel Series IN, Wheel D

    SWIVEL CASTOR

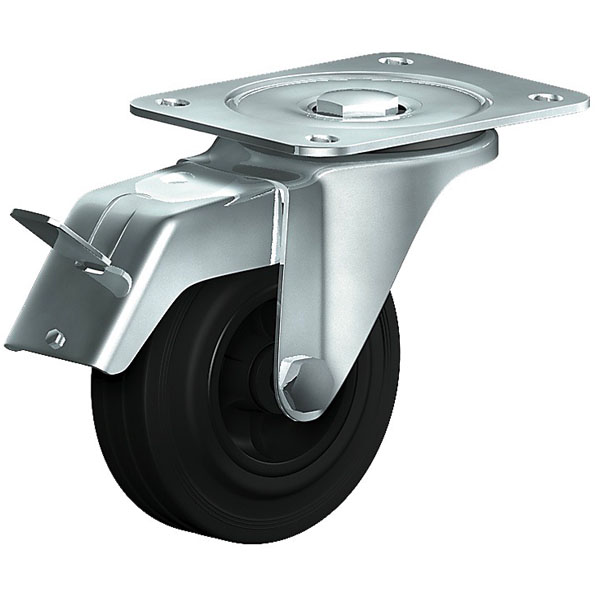

  • Swivel Castor With Total Lock Stainless Steel Series IN, Wheel D

    SWIVEL CASTOR WITH TOTAL LOCK

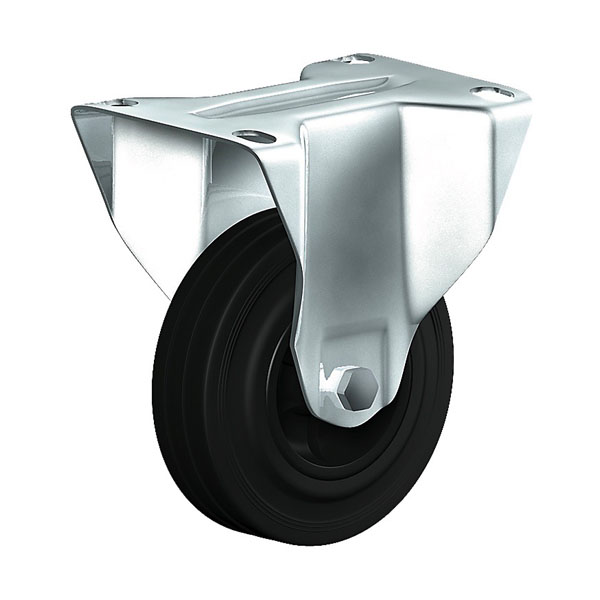

  • Fixed Castor Stainless Steel Series IN, Wheel D

    FIXED CASTOR

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series IN, Wheel DEdelstahl

PDF product sheet
  • max 205 kg
  • -20 °C - +60 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Stainless Steel Series IN, Wheel D

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series IN, Wheel D

    Swivel Castor With Total Lock

  • Fixed Castor Stainless Steel Series IN, Wheel D

    Fixed Castor

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Wet environments
  • Dollies

Material

Material

Tread: standard rubber tyre black, 85±5 Shore A


Quality nylon wheel centre

Fork material

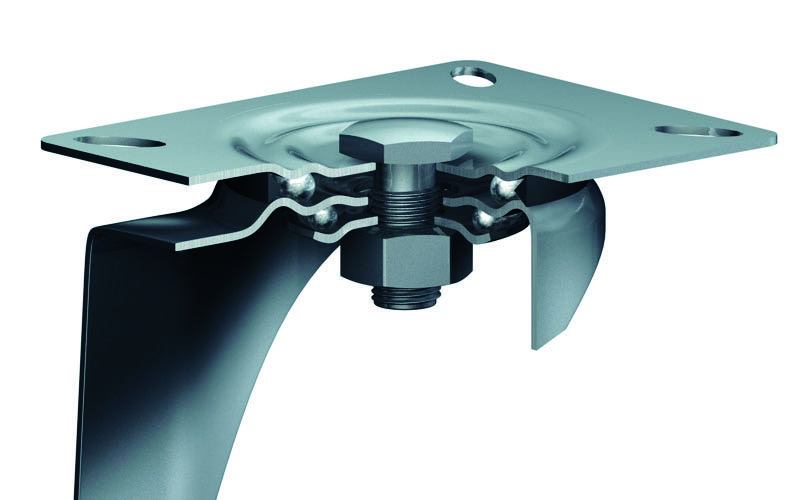

Finish: Polished stainless steel, swivel fork with top plate, double ball bearing – bolted, with dust protection ring, wheel axle bolted – locked, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

21 of 21 items in this series are displayed.

Article number Articel type Price € QTY

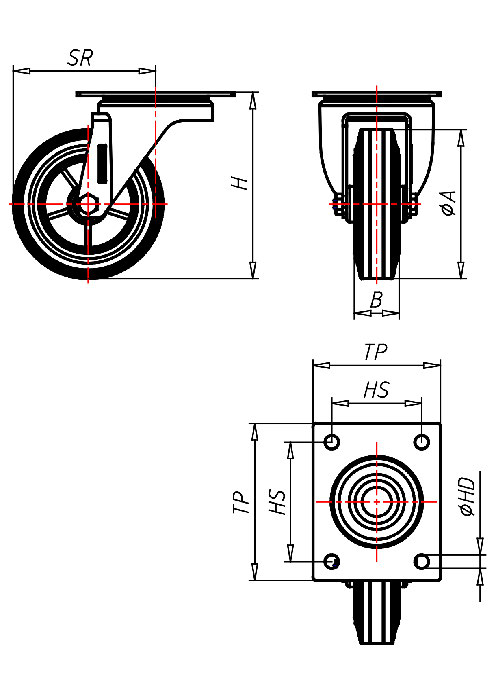

IN 80 D

Stainless Steel Series IN, Wheel D

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 81
  • Radlagerung Nylon plain bearing
INT 80 D

Stainless Steel Series IN, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 115
  • Radlagerung Nylon plain bearing
INF 80 D

Stainless Steel Series IN, Wheel D

Fixed castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 60
  • Bauhöhe H mm 100
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
INV 100 D

Stainless Steel Series IN, Wheel D

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 101
  • Radlagerung Nylon plain bearing
INVT 100 D

Stainless Steel Series IN, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Nylon plain bearing
INVF 100 D

Stainless Steel Series IN, Wheel D

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 125
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 100 D

Stainless Steel Series IN, Wheel D

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 91
  • Radlagerung Nylon plain bearing
INT 100 D

Stainless Steel Series IN, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Störkreisradius SR mm 120
  • Radlagerung Nylon plain bearing

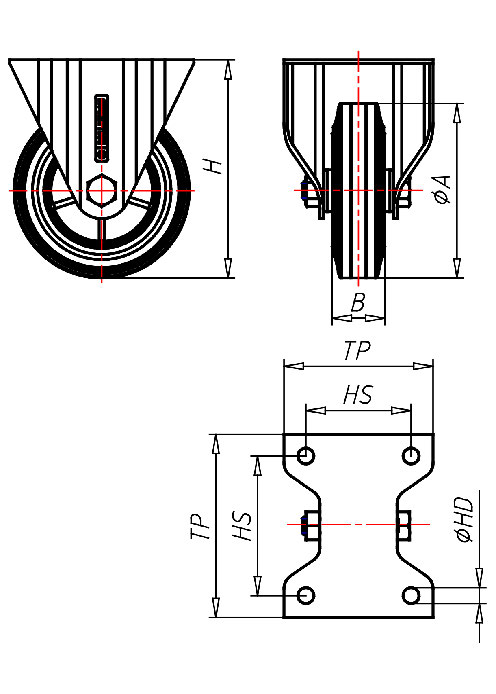

INF 100 D

Stainless Steel Series IN, Wheel D

Fixed castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 125
  • Plattengröße TP mm 105x85
  • Lochabstand HS mm 80x60
  • Loch-Ø HD mm 9
  • Radlagerung Nylon plain bearing
IN 125 D

Stainless Steel Series IN, Wheel D

Swivel castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 155
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 114
  • Radlagerung Nylon plain bearing
INT 125 D

Stainless Steel Series IN, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 125x38

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 155
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 155
  • Radlagerung Nylon plain bearing
INF 125 D

Stainless Steel Series IN, Wheel D

Fixed castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 155
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 150 D

Stainless Steel Series IN, Wheel D

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 127
  • Radlagerung Nylon plain bearing
INT 150 D

Stainless Steel Series IN, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Nylon plain bearing
INF 150 D

Stainless Steel Series IN, Wheel D

Fixed castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 180
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 160 D

Stainless Steel Series IN, Wheel D

Swivel castor Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 170
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 132
  • Radlagerung Nylon plain bearing
INT 160 D

Stainless Steel Series IN, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 170
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 150
  • Radlagerung Nylon plain bearing
INF 160 D

Stainless Steel Series IN, Wheel D

Fixed castor Wheel-∅ x width [mm]: 160x40

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 170
  • Bauhöhe H mm 185
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
IN 200 D

Stainless Steel Series IN, Wheel D

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 162
  • Radlagerung Nylon plain bearing

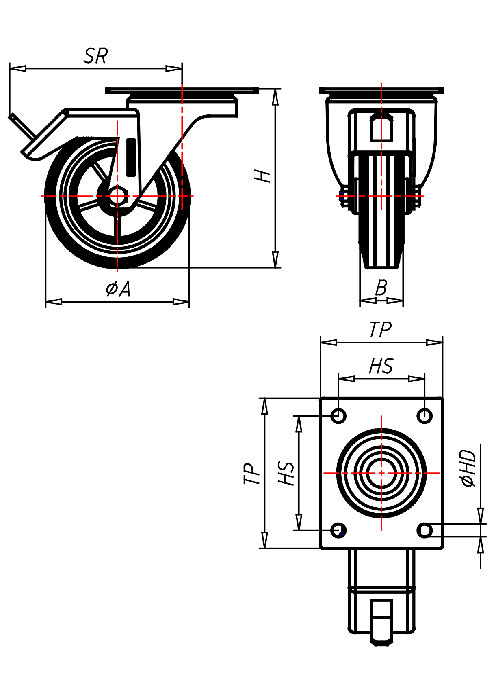

INT 200 D

Stainless Steel Series IN, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Störkreisradius SR mm 190
  • Radlagerung Nylon plain bearing
INF 200 D

Stainless Steel Series IN, Wheel D

Fixed castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series IN, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 230
  • Plattengröße TP mm 135x110
  • Lochabstand HS mm 105x80
  • Loch-Ø HD mm 11
  • Radlagerung Nylon plain bearing
