Stainless Steel Series XD, Wheel A

 PDF product sheet

max 370 kg
-30 °C - +80 °C
80-200 mm

++

swivels easily
+++

wear resistant
+++

shock proof
+++

floor protective
+++

weather proof

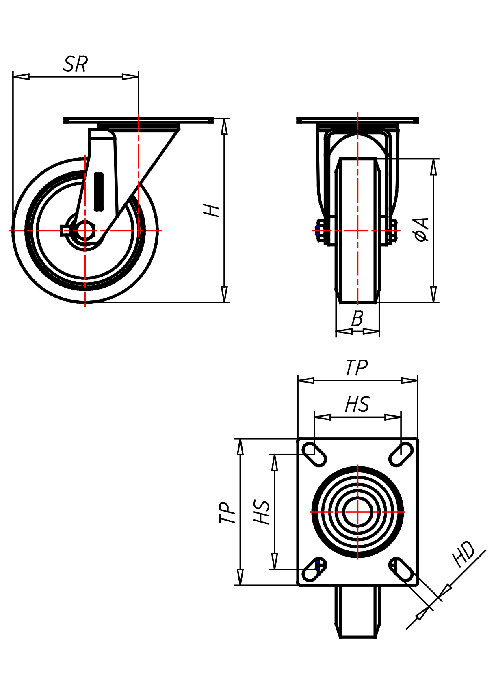

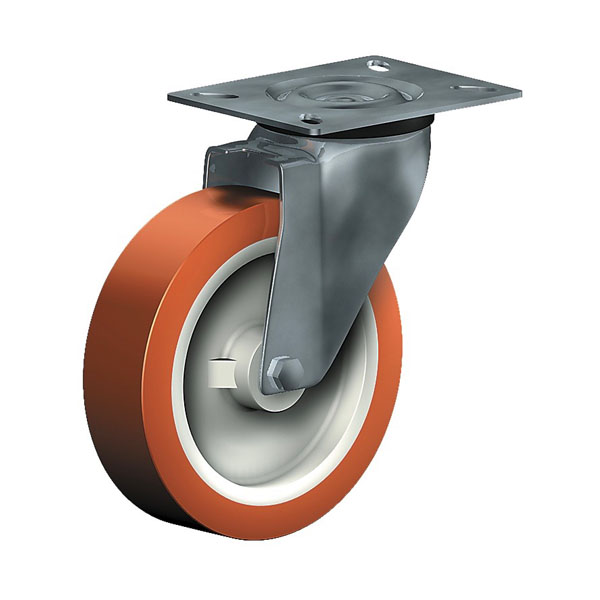

Swivel Castor

Show dimensions

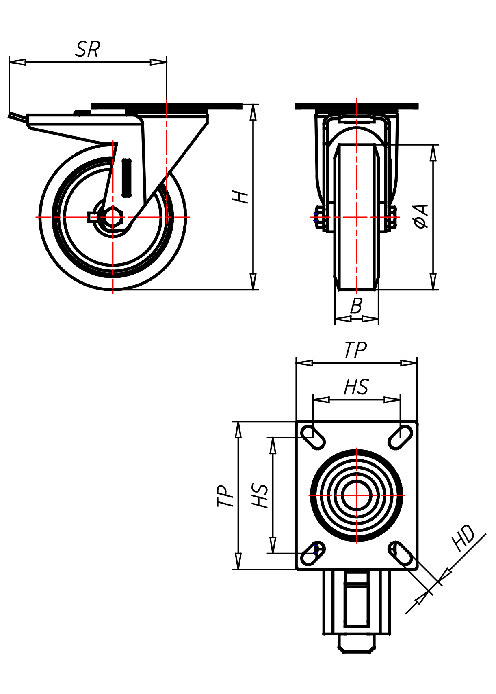

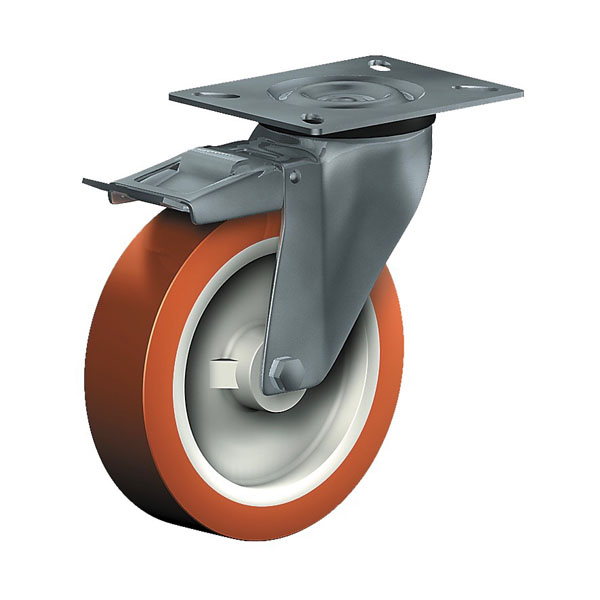

Swivel Castor With Total Lock

Show dimensions

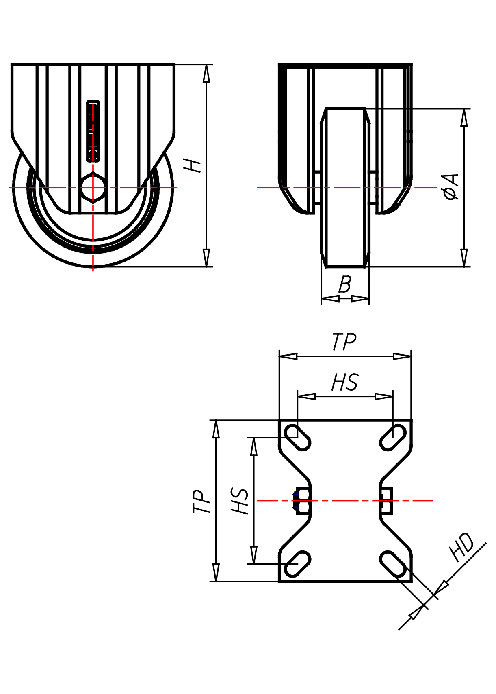

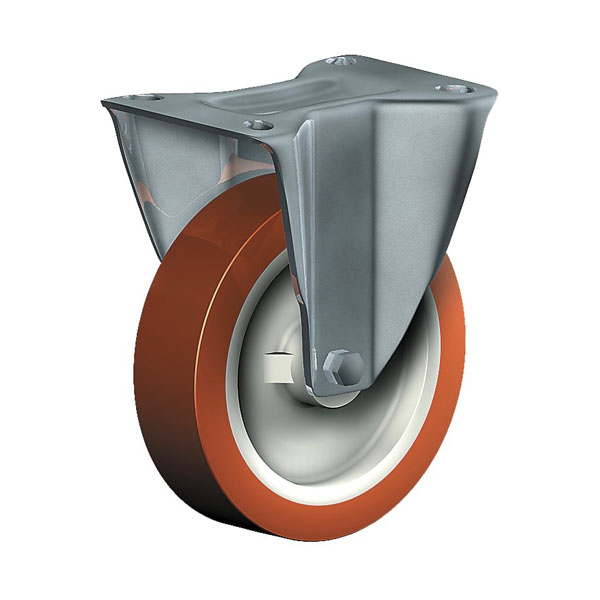

Fixed Castor

Show dimensions

Select the required versions in order to show them already filtered in the following table.

Floor condition

PVC/Concrete
Tiles
Asphalt
Parquet flooring
Obstacles

Advantages

silent in motion
low rolling resistance
high abrasion and tear resistance
high resistance to shocks
easy to clean
good chemical resistance

Applications

Mechatronik
Wet environments
Dollies

Material

Coated in cast polyurethane, 95±3 Shore A
High quality nylon wheel centre

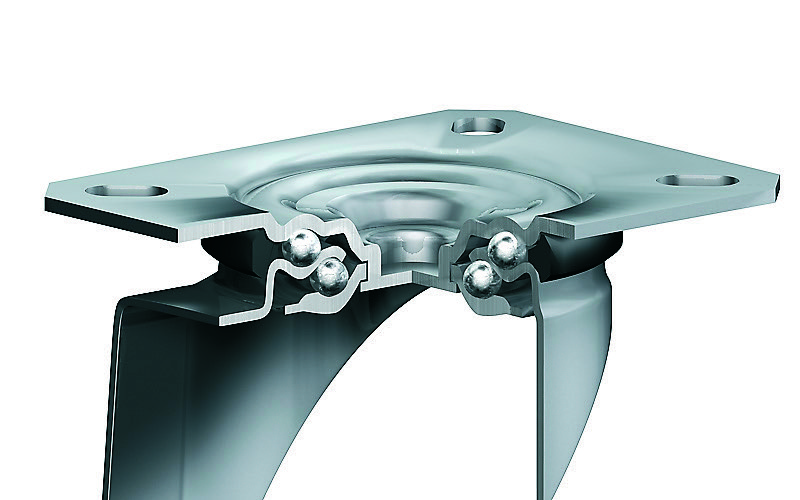

Fork material

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, with dust protection ring, wheel axle bolted, total lock

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

51 of 51 items in this series are displayed.

Article number	Articel type	Wheel-Ø A x width B mm	Load Capacity kg	Overall height H mm	Dimension of top plate TP mm	Hole spacing HS mm	Hole-Ø HD mm	Swivel radius SR mm
XD 80 A	Swivel castor	80x24	120	106	102x83	80x60	9	74
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 74 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 80 A	Swivel castor with total lock	80x24	120	106	102x83	80x60	9	108
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet
XF 80 A	Fixed castor	80x24	120	106	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 80x24 Technische Daten Tragkraft kg 120 Bauhöhe H mm 106 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 100 ABX	Swivel castor	100x30	150	128	102x83	80x60	9	88
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 100 ABX	Swivel castor with total lock	100x30	150	128	102x83	80x60	9	108
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 100 ABX	Fixed castor	100x30	150	128	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 100 A	Swivel castor	100x30	150	128	102x83	80x60	9	88
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 88 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 100 A	Swivel castor with total lock	100x30	150	128	102x83	80x60	9	108
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet
XF 100 A	Fixed castor	100x30	150	128	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 100x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 128 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 125 ABX	Swivel castor	125x30	150	154	102x83	80x60	9	104
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 125 ABX	Swivel castor with total lock	125x30	150	154	102x83	80x60	9	108
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 125 ABX	Fixed castor	125x30	150	154	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XS 125 ABX	Swivel castor	125x30	250	160	102x83	80x60	9	113
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 113 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XST 125 ABX	Swivel castor with total lock	125x30	250	160	102x83	80x60	9	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSF 125 ABX	Fixed castor	125x30	250	160	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSS 125 ABX	Swivel castor	125x30	250	160	135x110	105x80	11	113
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSST 125 ABX	Swivel castor with total lock	125x30	250	160	135x110	105x80	11	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSSF 125 ABX	Fixed castor	125x30	250	160	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 125 A	Swivel castor	125x30	150	154	102x83	80x60	9	104
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 104 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 125 A	Swivel castor with total lock	125x30	150	154	102x83	80x60	9	108
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 108 Radlagerung Nylon plain bearing PDF Data sheet
XF 125 A	Fixed castor	125x30	150	154	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 150 Bauhöhe H mm 154 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XS 125 A	Swivel castor	125x30	250	160	102x83	80x60	9	113
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 113 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XST 125 A	Swivel castor with total lock	125x30	250	160	102x83	80x60	9	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet
XSF 125 A	Fixed castor	125x30	250	160	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSS 125 A	Swivel castor	125x30	250	160	135x110	105x80	11	113
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 113 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XSST 125 A	Swivel castor with total lock	125x30	250	160	135x110	105x80	11	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet
XSSF 125 A	Fixed castor	125x30	250	160	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 125x30 Technische Daten Tragkraft kg 250 Bauhöhe H mm 160 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 150 ABX	Swivel castor	150x40	250	181	135x110	105x80	11	128
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 150 ABX	Swivel castor with total lock	150x40	250	181	135x110	105x80	11	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 150 ABX	Fixed castor	150x40	250	181	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XL 150 ABX	Swivel castor	150x40	250	181	102x83	80x60	9	128
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLT 150 ABX	Swivel castor with total lock	150x40	250	181	102x83	80x60	9	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLF 150 ABX	Fixed castor	150x40	250	181	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 150 A	Swivel castor	150x40	250	181	135x110	105x80	11	128
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 150 A	Swivel castor with total lock	150x40	250	181	135x110	105x80	11	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet
XF 150 A	Fixed castor	150x40	250	181	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XL 150 A	Swivel castor	150x40	250	181	102x83	80x60	9	128
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 128 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XLT 150 A	Swivel castor with total lock	150x40	250	181	102x83	80x60	9	140
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Störkreisradius SR mm 140 Radlagerung Nylon plain bearing PDF Data sheet
XLF 150 A	Fixed castor	150x40	250	181	102x83	80x60	9
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 150x40 Technische Daten Tragkraft kg 250 Bauhöhe H mm 181 Plattengröße TP mm 102x83 Lochabstand HS mm 80x60 Loch-Ø HD mm 9 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 175 ABX	Swivel castor	175x40	370	216	135x110	105x80	11	146
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 146 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 175 ABX	Swivel castor with total lock	175x40	370	216	135x110	105x80	11	168
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 175 ABX	Fixed castor	175x40	370	216	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 175 A	Swivel castor	175x40	370	216	135x110	105x80	11	146
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 146 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 175 A	Swivel castor with total lock	175x40	370	216	135x110	105x80	11	168
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet
XF 175 A	Fixed castor	175x40	370	216	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 175x40 Technische Daten Tragkraft kg 370 Bauhöhe H mm 216 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 200 ABX	Swivel castor	200x50	370	240	135x110	105x80	11	161
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 200 ABX	Swivel castor with total lock	200x50	370	240	135x110	105x80	11	168
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XF 200 ABX	Fixed castor	200x50	370	240	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Roller bearing PDF Data sheet 3D model (Cardenas Customer portal)
XD 200 A	Swivel castor	200x50	370	240	135x110	105x80	11	161
Stainless Steel Series XD, Wheel A Swivel castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 161 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
XDT 200 A	Swivel castor with total lock	200x50	370	240	135x110	105x80	11	168
Stainless Steel Series XD, Wheel A Swivel castor with total lock Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Störkreisradius SR mm 168 Radlagerung Nylon plain bearing PDF Data sheet
XF 200 A	Fixed castor	200x50	370	240	135x110	105x80	11
Stainless Steel Series XD, Wheel A Fixed castor Wheel-∅ x width [mm]: 200x50 Technische Daten Tragkraft kg 370 Bauhöhe H mm 240 Plattengröße TP mm 135x110 Lochabstand HS mm 105x80 Loch-Ø HD mm 11 Radlagerung Nylon plain bearing PDF Data sheet 3D model (Cardenas Customer portal)
