Stainless Steel Series XR, Wheel P

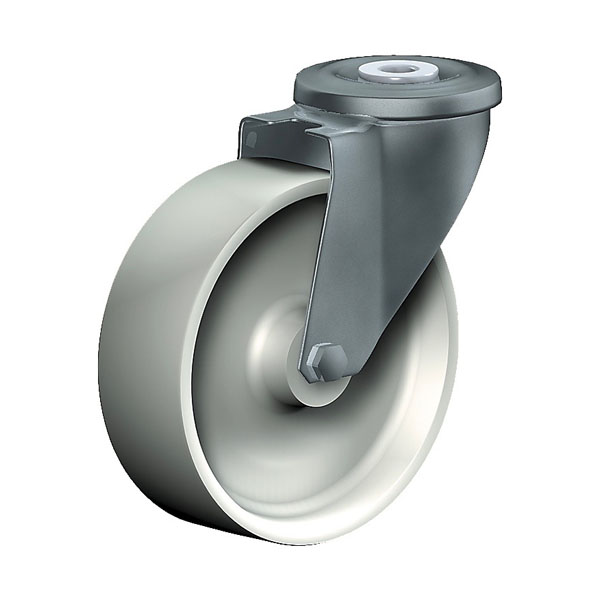

  • Swivel Castor Stainless Steel Series XR, Wheel P

    SWIVEL CASTOR

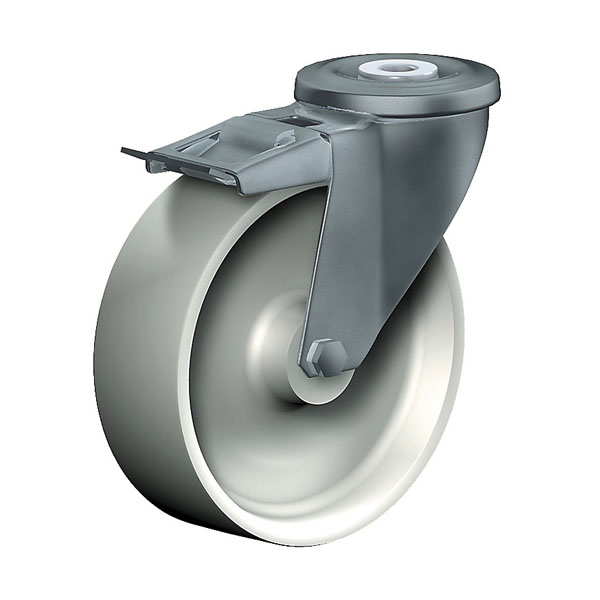

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel P

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XR, Wheel PEdelstahl

PDF product sheet
  • max 370 kg
  • -30 °C - +80 °C
  • 80-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series XR, Wheel P

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel P

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Teppichboden

    Carpet

  • Asphaltboden

    Asphalt

Advantages

  • easy running on smooth floors
  • impact proof
  • high abrasion resistance
  • easy to clean
  • high chemical resistance

Applications

  • Kitchen equipment
  • Mechatronik
  • Wet environments

Material

Material

Casted high quality nylon wheel

Fork material

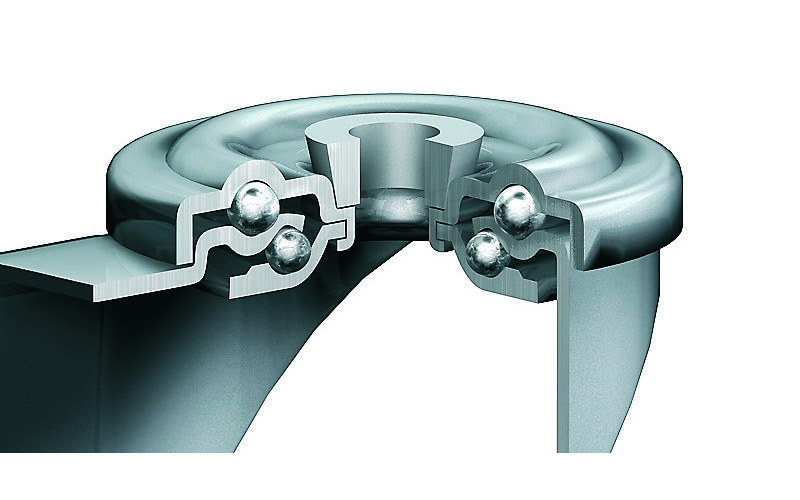

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

28 of 28 items in this series are displayed.

Article number Articel type Price € QTY
XR 80 PBX

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 75
  • Radlagerung Roller bearing
XRT 80 PBX

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XR 80 P

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 75
  • Radlagerung Nylon plain bearing
XRT 80 P

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XR 100 PBX

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Roller bearing
XRT 100 PBX

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XR 100 PL

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Nylon plain bearing
XRT 100 PL

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing

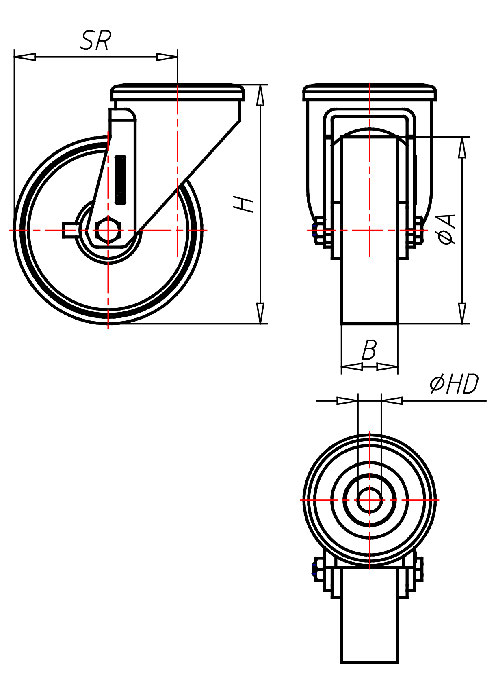

XR 125 PLLBX

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 104
  • Radlagerung Roller bearing
XRT 125 PLLBX

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x30

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XRS 125 PBX

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XRST 125 PBX

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XR 125 PLL

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 104
  • Radlagerung Nylon plain bearing
XRT 125 PLL

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XRS 125 PL

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 225
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 113
  • Radlagerung Nylon plain bearing
XRST 125 PL

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 225
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XR 150 PBX

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 128
  • Radlagerung Roller bearing

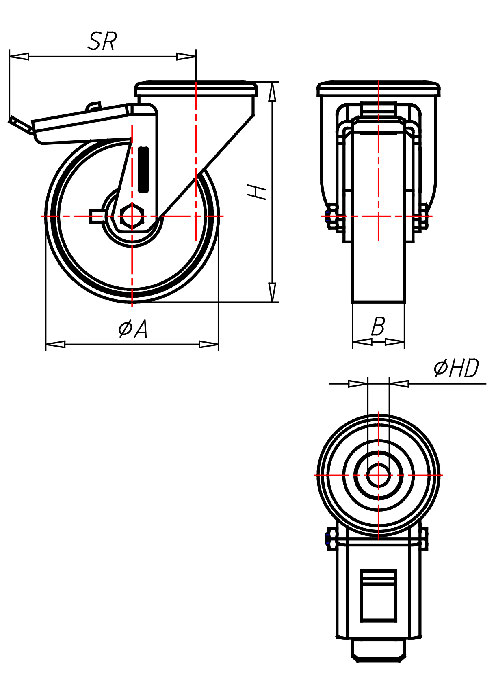

XRT 150 PBX

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XR 150 PL

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 128
  • Radlagerung Nylon plain bearing
XRT 150 PL

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XR 175 PBX

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 175x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 216
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 147
  • Radlagerung Roller bearing
XRT 175 PBX

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 175x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 216
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Roller bearing
XR 175 P

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 175x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 216
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 147
  • Radlagerung Nylon plain bearing
XRT 175 P

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 175x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 216
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Nylon plain bearing
XR 200 PBX

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing
XRT 200 PBX

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Roller bearing
XR 200 P

Stainless Steel Series XR, Wheel P

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Nylon plain bearing
XRT 200 P

Stainless Steel Series XR, Wheel P

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel P

Technische Daten

  • Tragkraft kg 370
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Nylon plain bearing
