Stainless Steel Series XR, Wheel PS

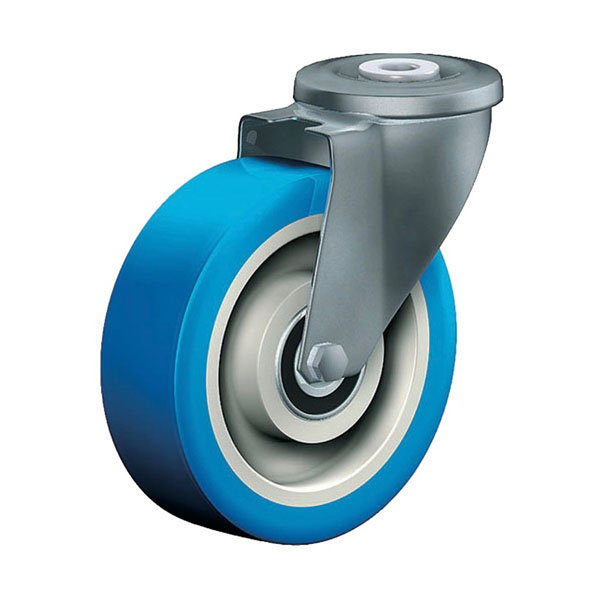

  • Swivel Castor Stainless Steel Series XR, Wheel PS

    SWIVEL CASTOR

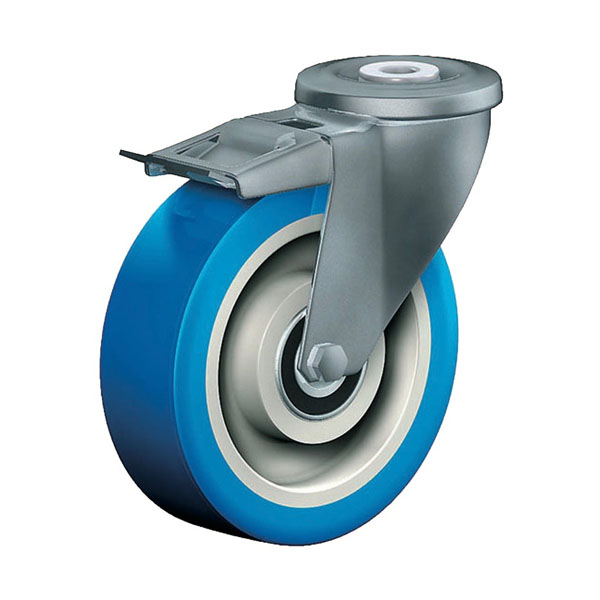

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel PS

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XR, Wheel PSEdelstahl

PDF product sheet
  • max 300 kg
  • -30 °C - +80 °C
  • 100-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series XR, Wheel PS

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel PS

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • very silent in motion
  • low rolling resistance
  • high abrasion and tear resistance
  • high resistance to shocks
  • easy to clean
  • good chemical resistance

Applications

  • Kitchen equipment
  • Mechatronik
  • Wet environments

Material

Material

Cast soft polyurethane coating,
87±3 Shore A
High quality nylon wheel centre

Fork material

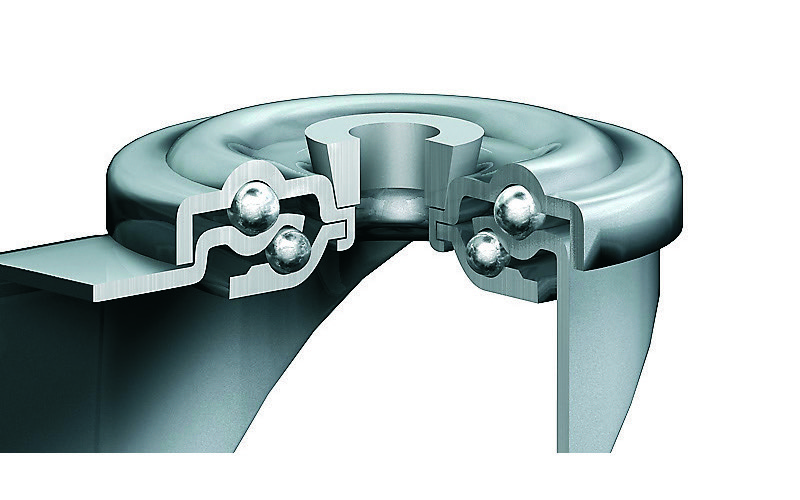

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

8 of 8 items in this series are displayed.

Article number Articel type Price € QTY
XRS 100 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 100x40

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 129
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 98
  • Radlagerung Roller bearing
XRST 100 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 100x40

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 129
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XRS 125 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XRST 125 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 125x40

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XR 150 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 128
  • Radlagerung Roller bearing

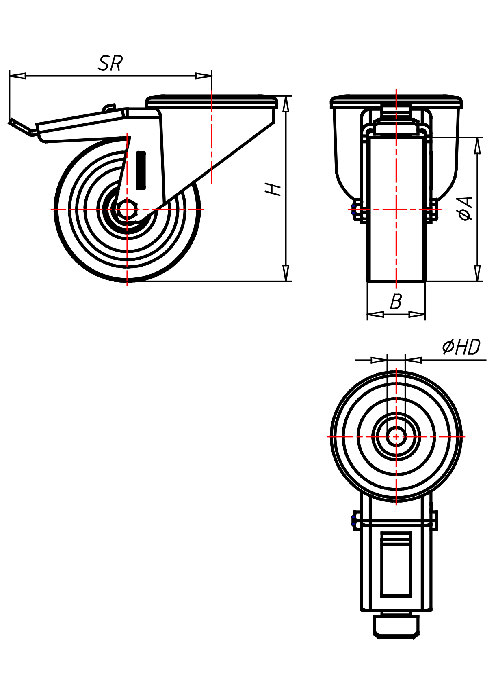

XRT 150 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 250
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing

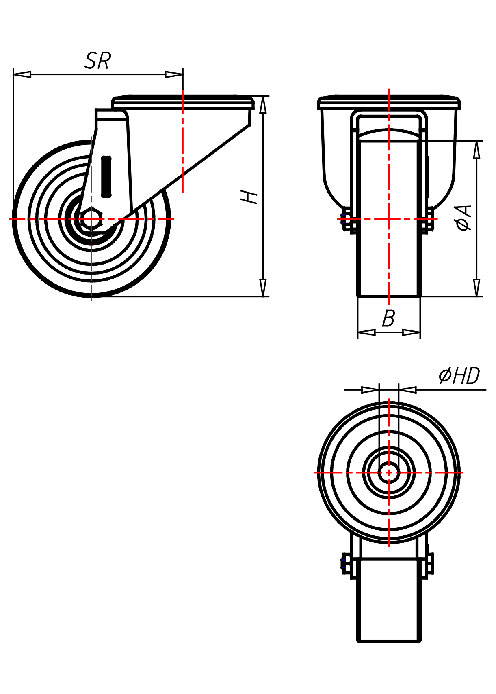

XR 200 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing
XRT 200 PSBX

Stainless Steel Series XR, Wheel PS

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel PS

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Roller bearing
