Stainless Steel Series XR, Wheel PFEL

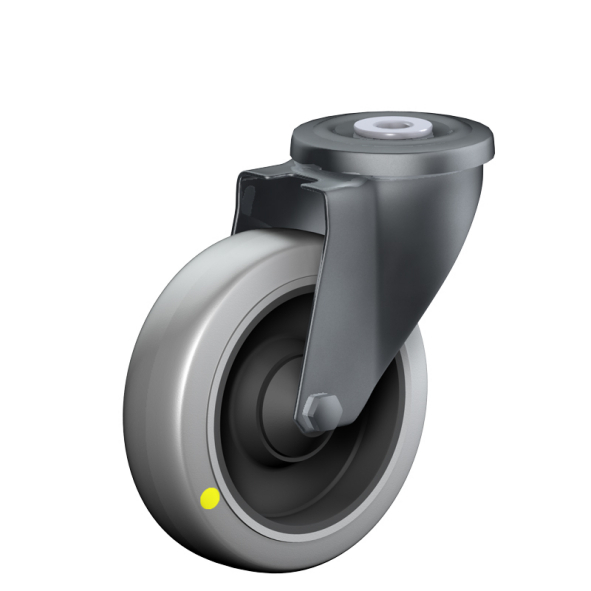

  • Swivel Castor Stainless Steel Series XR, Wheel PFEL

    SWIVEL CASTOR

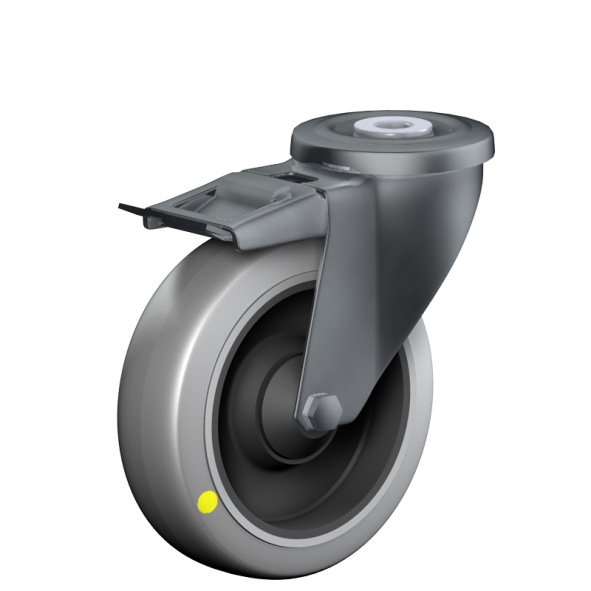

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel PFEL

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XR, Wheel PFELEdelstahlelectrically conductive

PDF product sheet
  • max 120 kg
  • -20 °C - +70 °C
  • 100-100 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series XR, Wheel PFEL

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel PFEL

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • electrically conductive
  • silent in motion
  • low rolling resistance
  • non-marking
  • high resistance to shocks
  • good chemical resistance

Applications

  • Kitchen equipment
  • Refuse containers

Material

Material

Elastic Performa, grey, 65±5 Shore A, elecrically conductive <104Ω
High quality nylon wheel centre

Fork material

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

2 of 2 items in this series are displayed.

Article number Articel type Price € QTY
XR 100 PFELKX

Stainless Steel Series XR, Wheel PFEL

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XR, Wheel PFEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung INOX Ball bearing
XRT 100 PFELKX

Stainless Steel Series XR, Wheel PFEL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XR, Wheel PFEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 109
  • Radlagerung INOX Ball bearing
